INSP
ADJ
3-22
WHEEL INSPECTION
1. Inspect:
8 wheels
Damage/Bends→Replace.
w
Never attempt to make any repairs to the wheel.
NOTE:
After a tire or wheel has been changed or re-
placed, always balance the wheel.
WHEEL INSPECTION/FRONT FORK INSPECTION
REAR SHOCK ABSORBER INSPECTION/SEAT LOCK CABLEADJUSTMENT
1
T
R
.
.
1
2
1

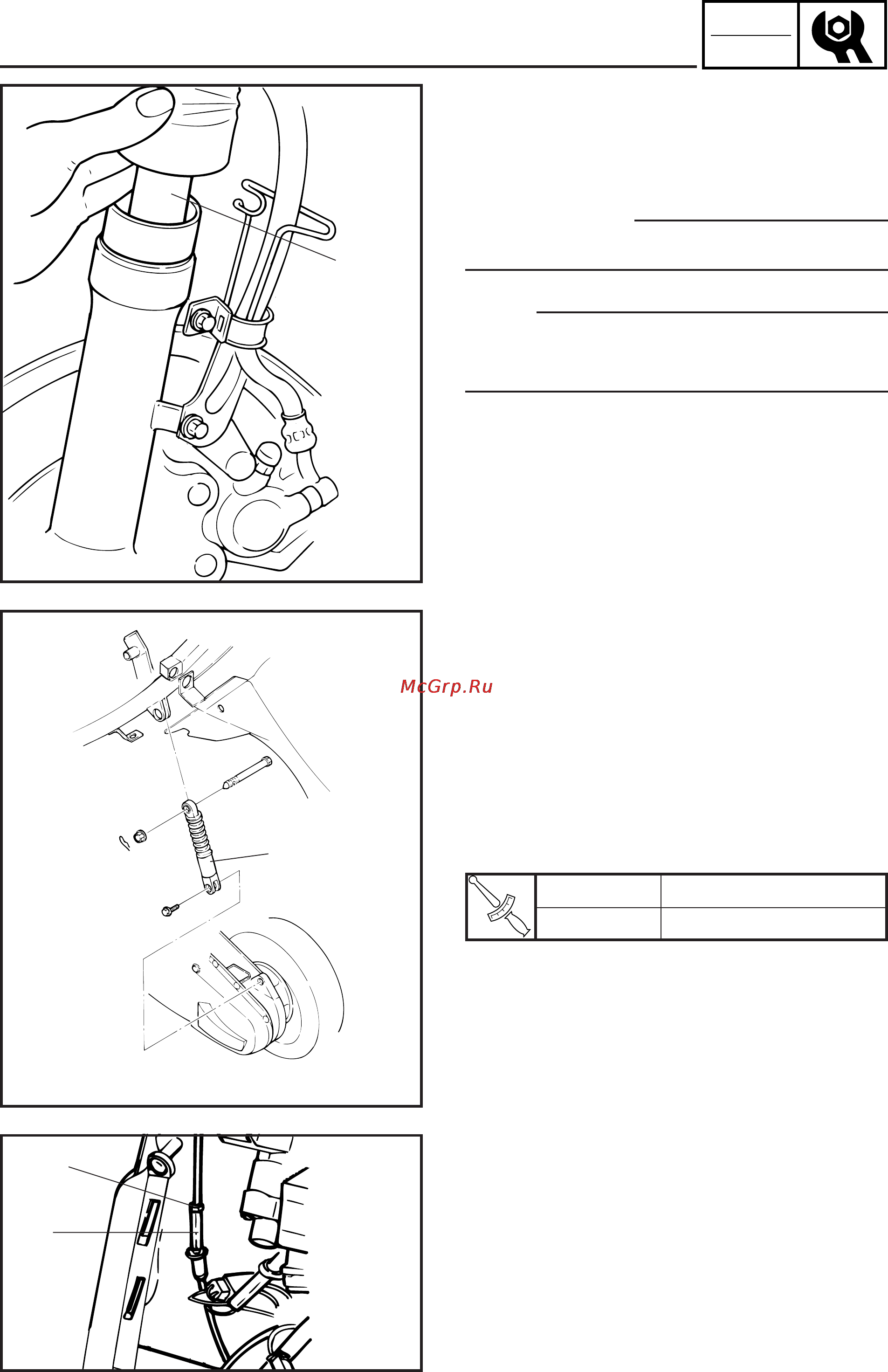

FRONT FORK INSPECTION
1. Inspect:
8 Front fork1
Bends/Damage→Replace inner tube
comp, fork ass’y.
Grease leakage→Replace inner tube
comp. fork ass’y.
Unsmooth operation→Replace fork
ass’y.
REAR SHOCK ABSORBER INSPECTION
1. Inspection:
8 Rear shock absorber1
Oil leaks/Damage→Replace.
2. Check
8 Tightening torque
Upper(nut) 30Nm (3.0 m.kg, 22ft.lb)
Lower (bolt) 16 Nm(1.6 m.kg, 12ft.lb)
SEAT LOCK CABLE ADJUSTMENT
1. Remove:
8 Upper cover
Refer to “COVER AND PANEL” section.
2. Adjust:
8 Seat cable
***************************************
Seat cable adjustment steps:
8 Loosen lock nut 1
8 Turn adjuster 2 in or out to adjust the seat
lock cable.
8 Tighten the lock nut.
***************************************
3. Install:
8 Upper cover
