IMPORTANT INFORMATION
EB801000

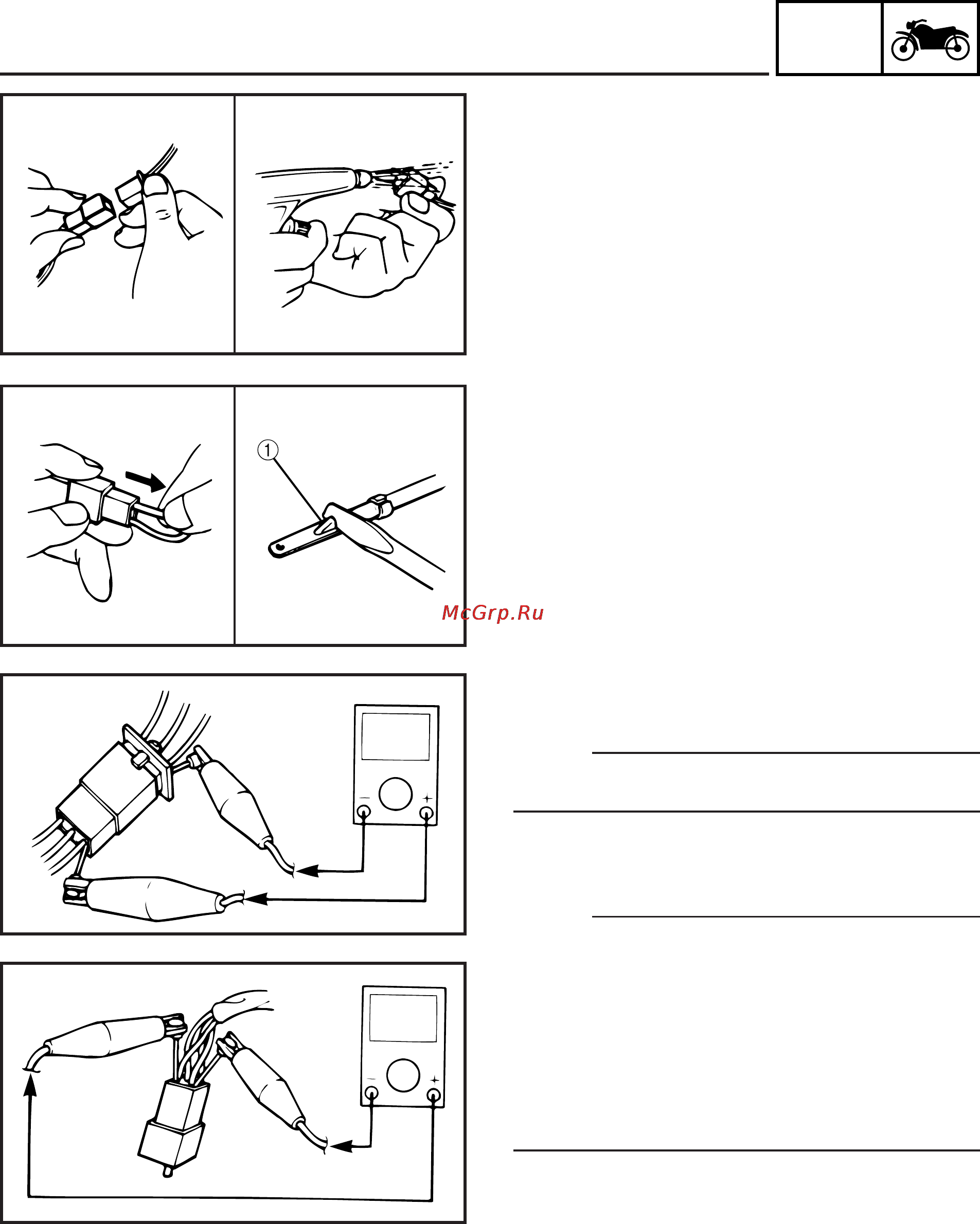

CHECKING OF CONNECTIONS
Dealing with stains, rust, moisture, etc. on the
connector.
1. Disconnect:
8 Connector
2. Dry each terminal with an air blower.
3. Connect and disconnect the connector two
or three.
4. Pull the read to check that it will not come
off.
5. If the terminal comes off, bend up the pin
1 and reinsert the terminal into the con-
nector.
6. Connect:
8 Connector
NOTE:
The two connectors “click” together.
7. Check for continuity with a tester.
NOTE:
8 If there is no continuity, clean the termi-
nals.
8 Be sure to perform the steps 1 to 7 listed
above when checking the wireharness.
8 For a field remedy, use a contact revitalizer
available on the market.
8 Use the tester on the connector as shown.
