7-38
– +
ELEC
SIGNAL SYSTEM
YP806023

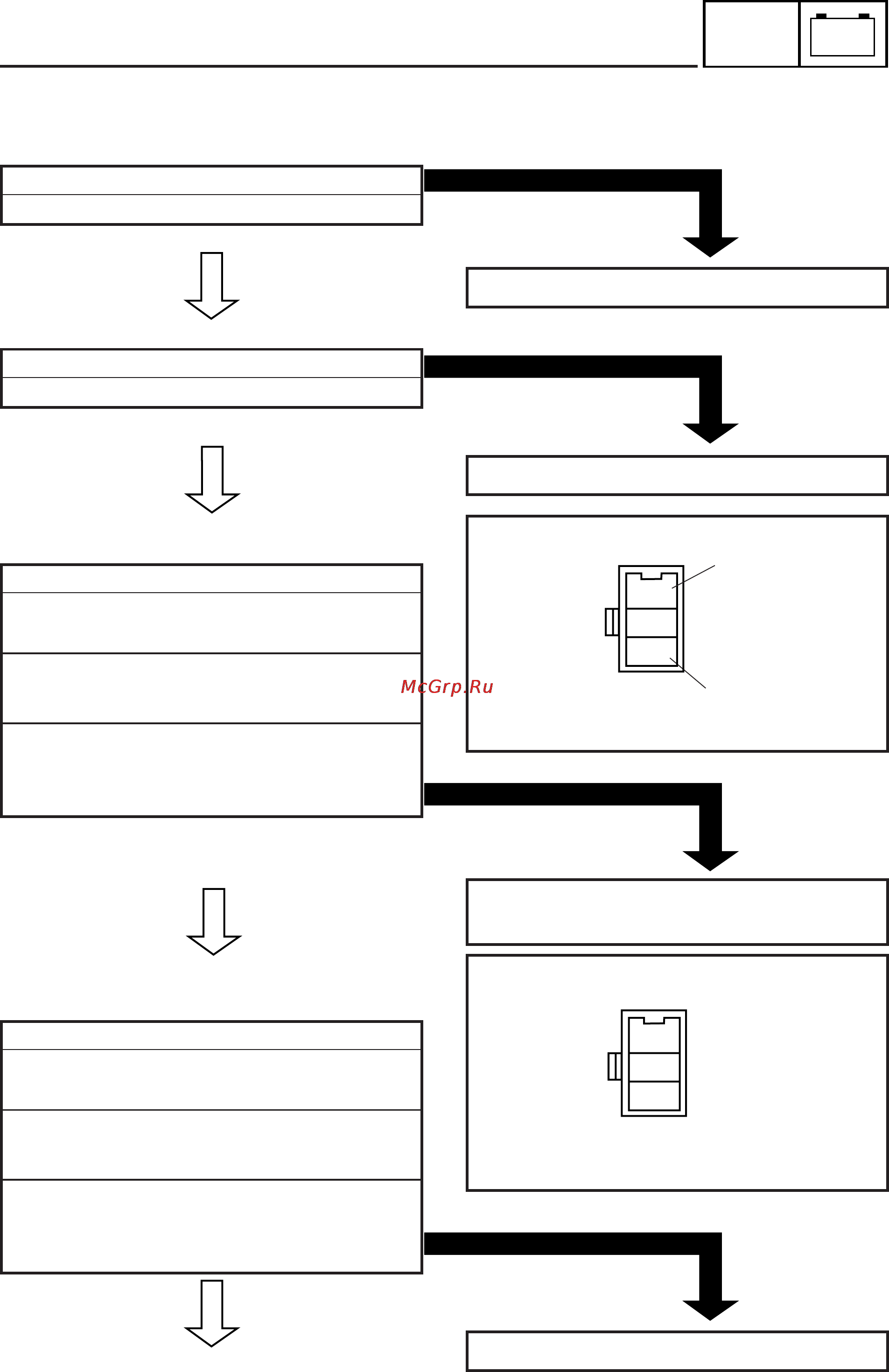

3. If the flasher light and/or turn indicator
light fails to blink.
1. Bulb and bulb socket
Refer to “CHECKING SWITCHES” section.
CONTINUITY
2. Turn switch
Refer to “CHECKING SWITCHES” section.
CONTINUITY
3. Voltage
8 Connect the pocket tester (DC20V) to the
flasher relay coupler.
Tester (+) lead→Brown lead 1.
Tester (-) lead→Black lead2
8 Turn the main switch to on.
8 Check for voltage (12V) of the “Brown”
lead at the flasher relay terminal.
MEETS
SPECIFICATION
4. Voltage
8 Connect the pocket tester (DC20V) to the
flasher relay coupler.
Tester (+) lead→Brown/White lead 1.
Tester (-) lead→Black lead2
8 Turn the main switch to on.
8 Check for voltage (12V) on the “Brown/
White” lead at the flasher relay terminal.
MEETS
SPECIFICATION
NO CONTINUITY
Replace the bulb and/or bulb socket.
NO CONTINUITY
Replace the left handlebar switch.
OUT OF SPECIFICATION
The wiring circuit from main switch to flasher
relay connector is faulty. Repair.
OUT OF SPECIFICATION
The flasher relay is faulty. Replace.
*
B
Br/W
Br
1
2
B
Br/W
Br
