6-27
CHAS
HANDLEBAR

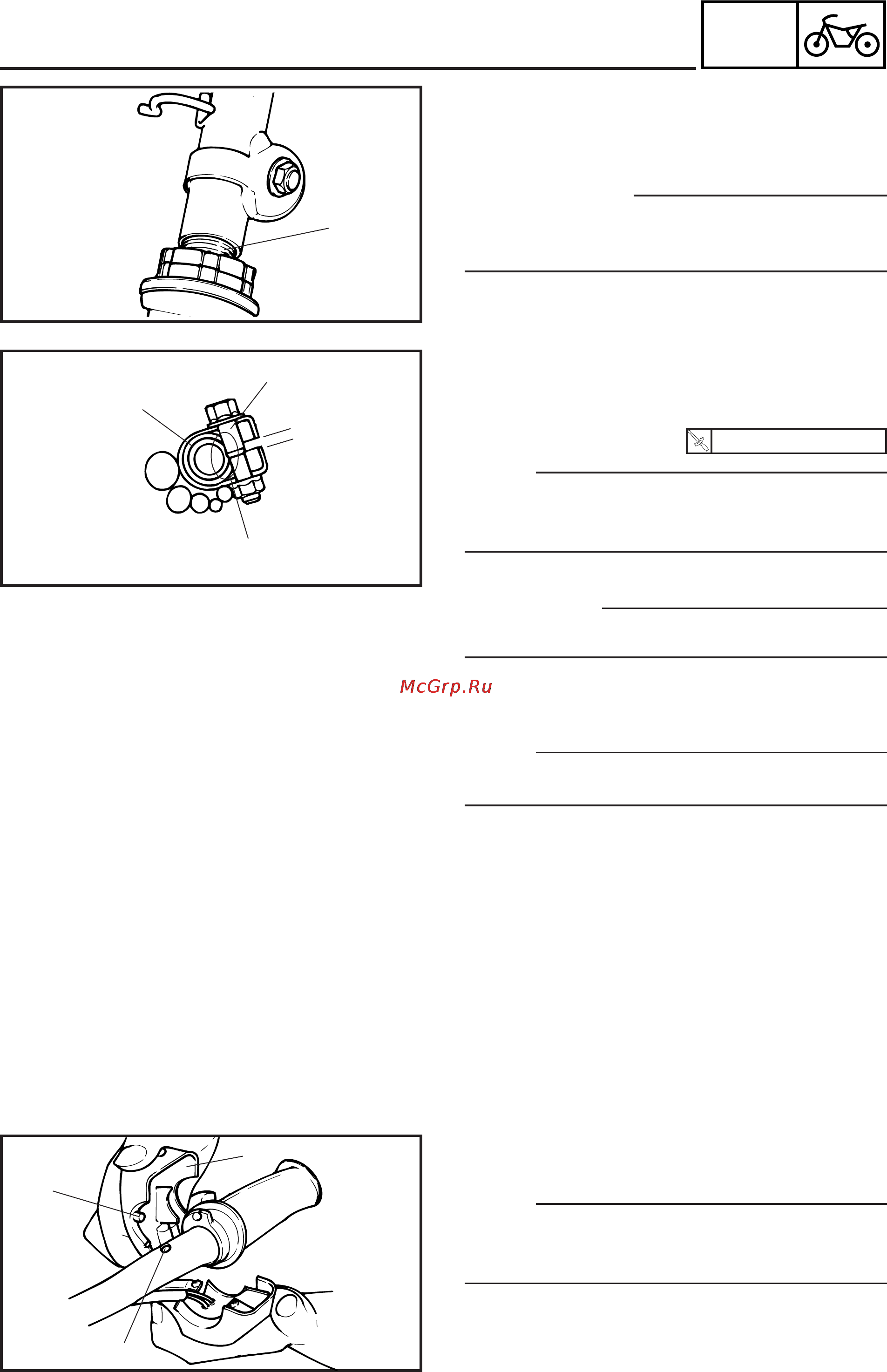

HANDLEBAR INSTALLATION
1. Clean:
8 Steering shaft a
w
Proper cables and leads routing is essential to
issue safe scooter operation.
2. Install:
8 Handlebar 1
8 Bolt 2
8 Nut
43Nm(4.3 m.kg, 37ft.lb)
NOTE:
Match the bolt 2 on to the steering column
dent a.
cC
There must be a space b after tighting bolt 2.
3. Install:
8 Band
NOTE:
Clamp the wire harness.
4. Apply:
8 Lithium soap base grease (to throttle
cable end and handlebar right end).
T
R
.
.
5. Install:
8 Handlebar switch (right) 1
NOTE:
Insert the projection a into the hole b on the
handlebar comp.
a
a
1
2
1
a
b
◗
M
b
