Yamaha YW50AP (2001) [72/214] Chapter 4 engine overhaul
![Yamaha YW50AP (2001) [72/214] Chapter 4 engine overhaul](/views2/1121445/page72/bg48.png)
4-1
ENG
EB400000

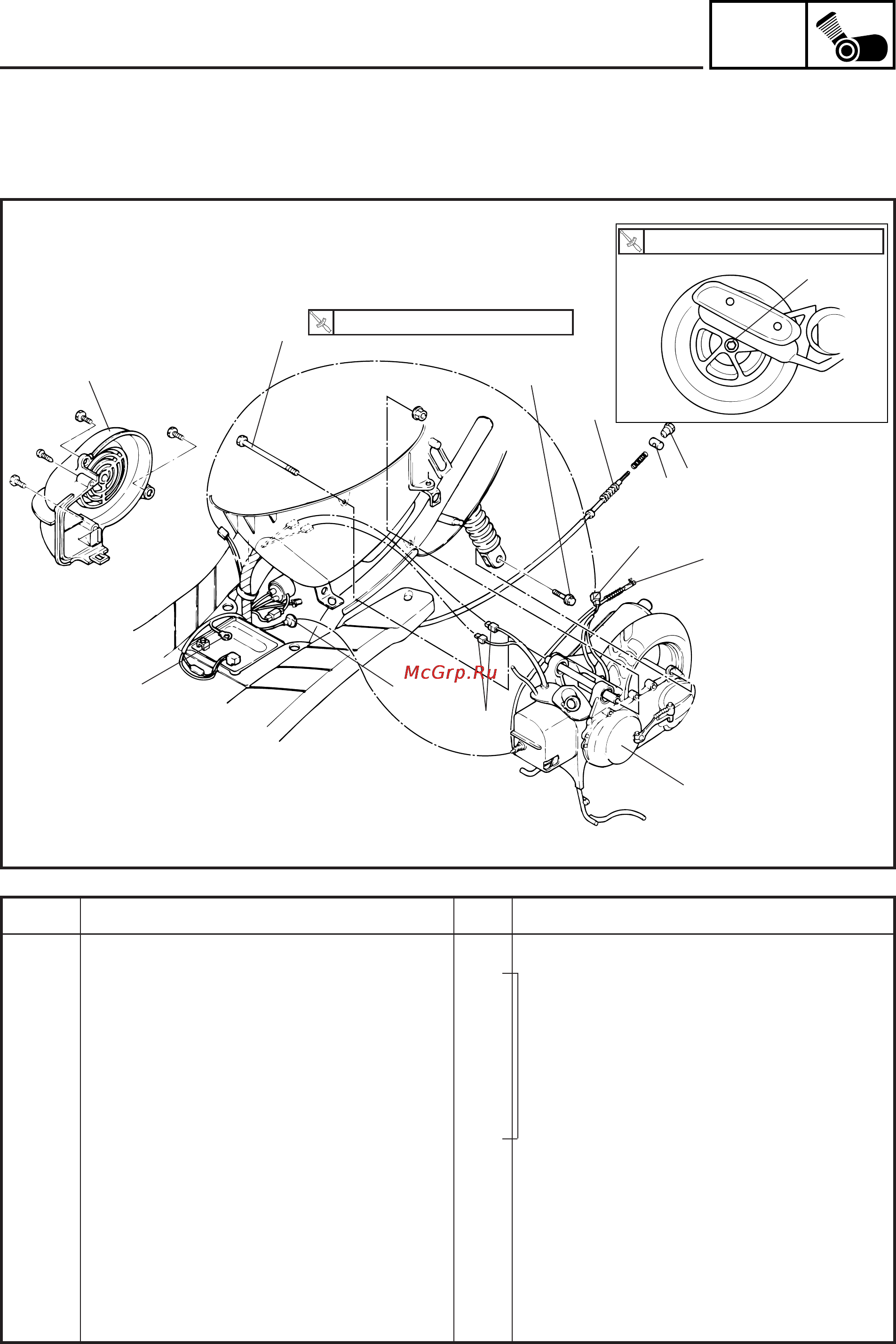

ENGINE OVERHAUL
ENGINE REMOVAL
WIREHARNESS AND CABLES
ENGINE REMOVAL
Remarks
Remove the parts in order.
Refer to “COVER AND PANEL” section
in CHAPTER 3.
Refer to “CARBURETOR” section in
CHAPTER 6.
Job name/Part name
Wireharness and cables removal
Rear carrier
Tail cover
Left side panel
Right side panel
Battery box cover
Center cowling
Air filter case
Carburetor
Air shroud 1
Autolube delivery hose
Order
1
2
Q’ty
1
1
45Nm(4.5 m.kg, 31ft.lb)
T
R
.
.
12
1
8
4
3
5
13
2
6
10
9
11
7
120Nm(12.0 m.kg, 87 ft.lb)
T
R
.
.
