Network settings

5-48 NC-503

Specifying the LDAP port number

1 In the "LDAP SETTING" menu, press the [+] or [,] key until "LDAP

PORT NO." is selected, and then press the [OK] key.

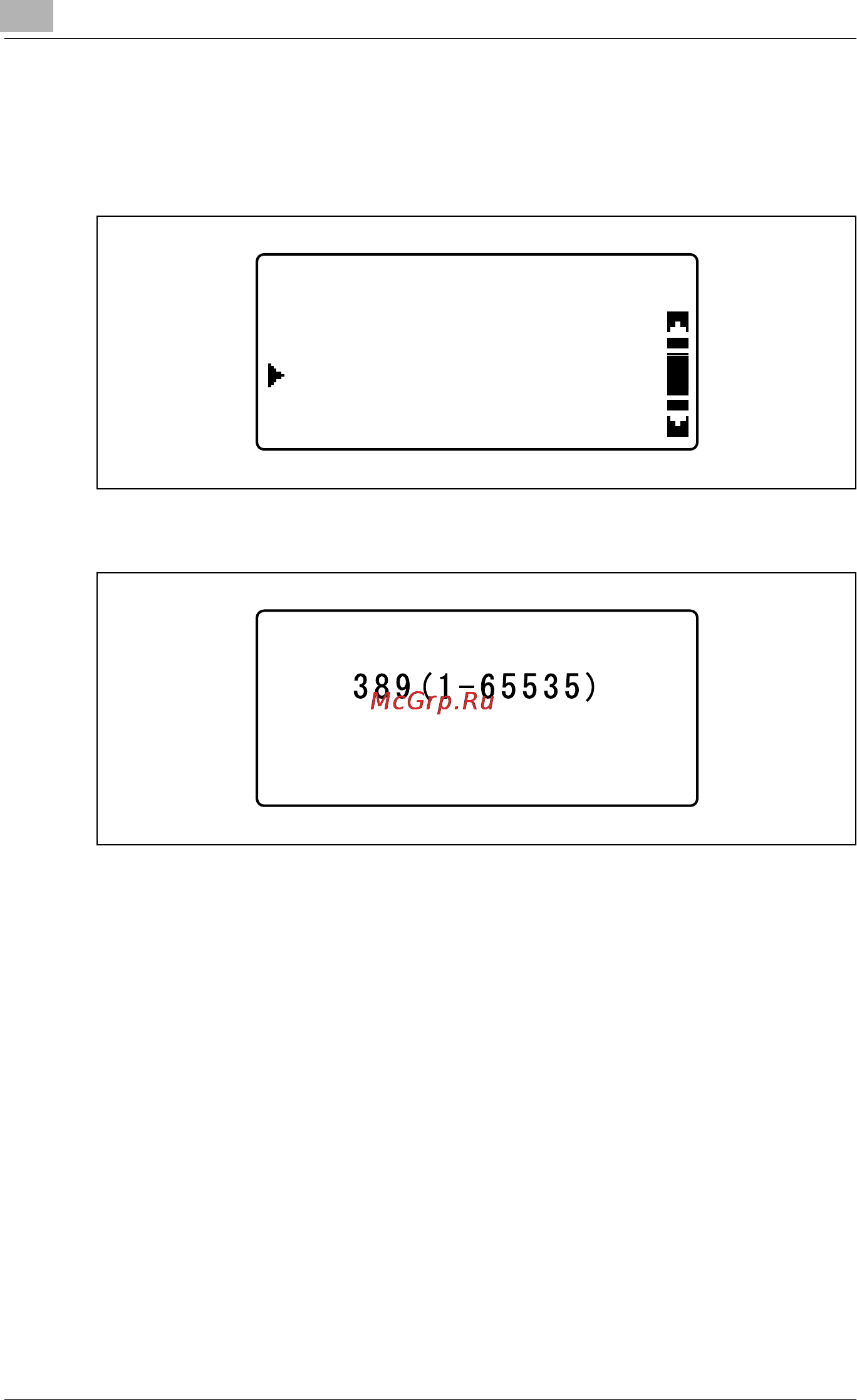

2 Type in the port number.

– A port number between 1 and 65535 can be specified. Normally,

port number 389 is used. If SSL is enabled, use port number 636.

3 Press the [OK] key.

After the message "ACCEPTED" appears, the "LDAP SETTING" menu

appears again.

LDAP SETTING

LDAP PORT NO.

LDAP SERVER ADDR.

SSL SETTING

LDAP PORT NO.
