Konica Minolta bizhub 181 [269/340] Print tab settings printer setting

Konica Minolta bizhub 163f [269/340] Print tab settings printer setting

Using PageScope Web Connection

NC-503 9-25

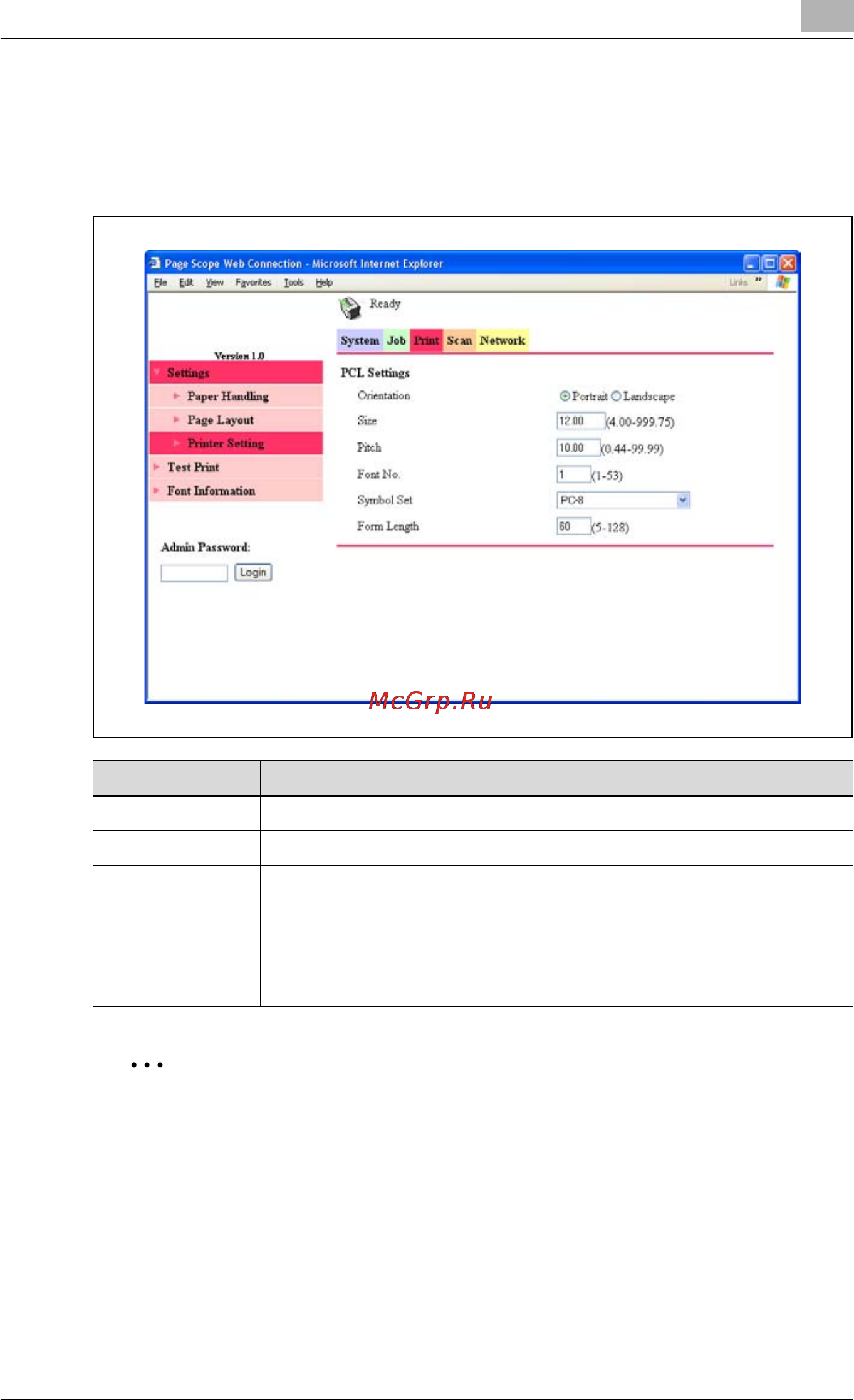

Print tab — Settings — Printer Setting

The settings related to the printer PCL function can be viewed.

A print job sent with no settings specified is printed with these settings.

Note

The Print tab appears only if the image controller IC-206 is installed.

Item Description

Orientation Displays the selected paper orientation.

Size Displays the specified font size.

Pitch Displays the specified font pitch.

Font No. Displays the specified font number.

Symbol Set Displays the symbol set that is selected.

Form Length Displays the specified page length.
