Performing a scan to e-mail operation
7
NC-503 7-45
3 Press the [,] or [+] key until "LIST", "SEARCH", or "LDAP SEARCH" is
selected, and then press the [OK] key.
– If "LIST" was selected, the list of all destinations registered with
one-touch dial keys and speed dial numbers appears. Press the
[,], [+] or [)] key until the desired recipient is selected.
Press the [)] key to search for the desired starting character (A %
B % C ...).
– If "SEARCH" was selected, a screen appears, allowing you to type
in the text to be searched for. Search for the desired recipient by
entering part (or all) of the registered name. For details on
performing the search in the phone book, refer to "Searching the
phone book" on page 7-46.
– If "LDAP SEARCH" was selected, the address of a recepient
registered with the LDAP server can be searched for. For details on
performing an LDAP search, refer to page 7-48.
4 Press the [Start] key.

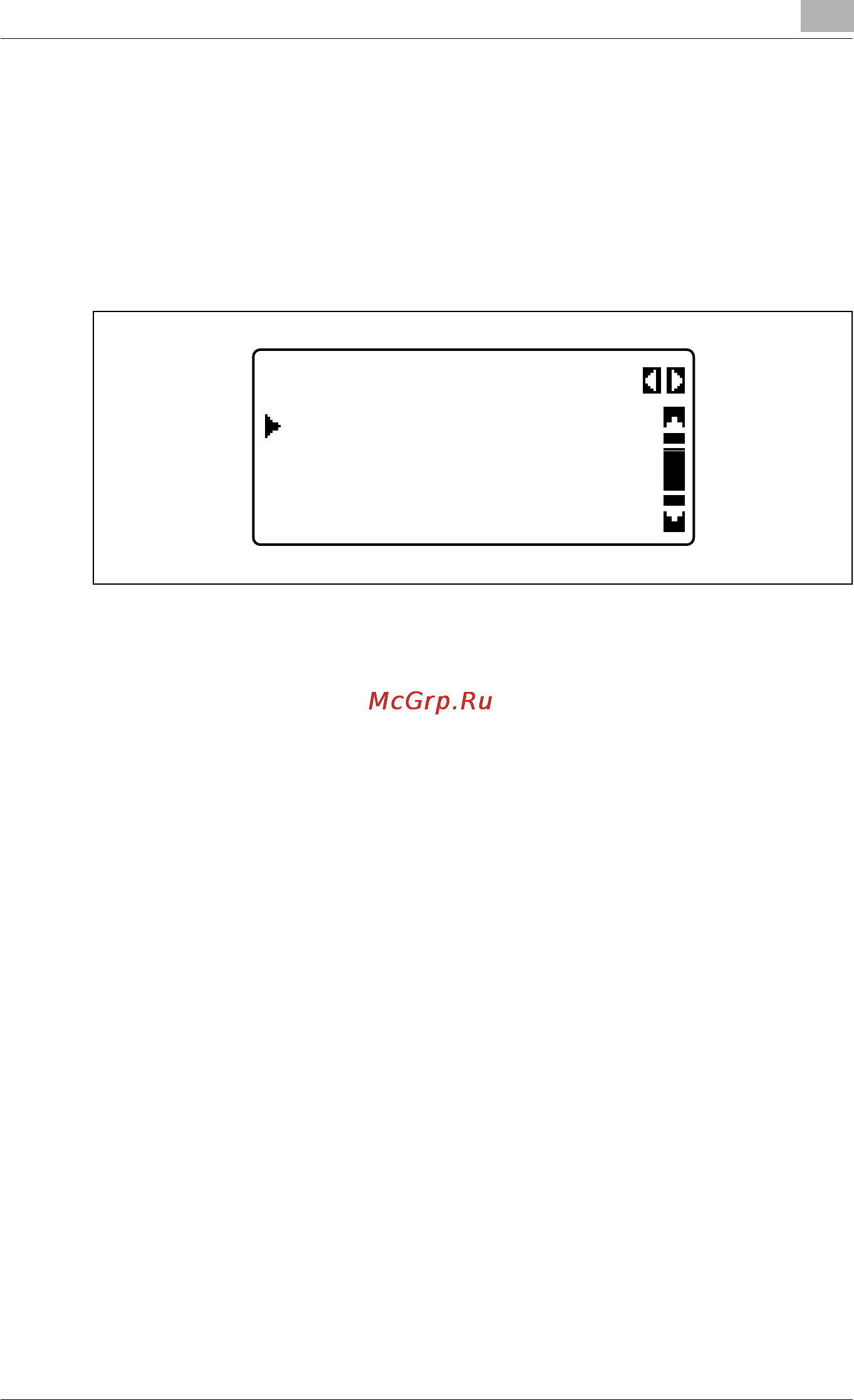

PHONE BOOK LIST
user02
user01
user03
