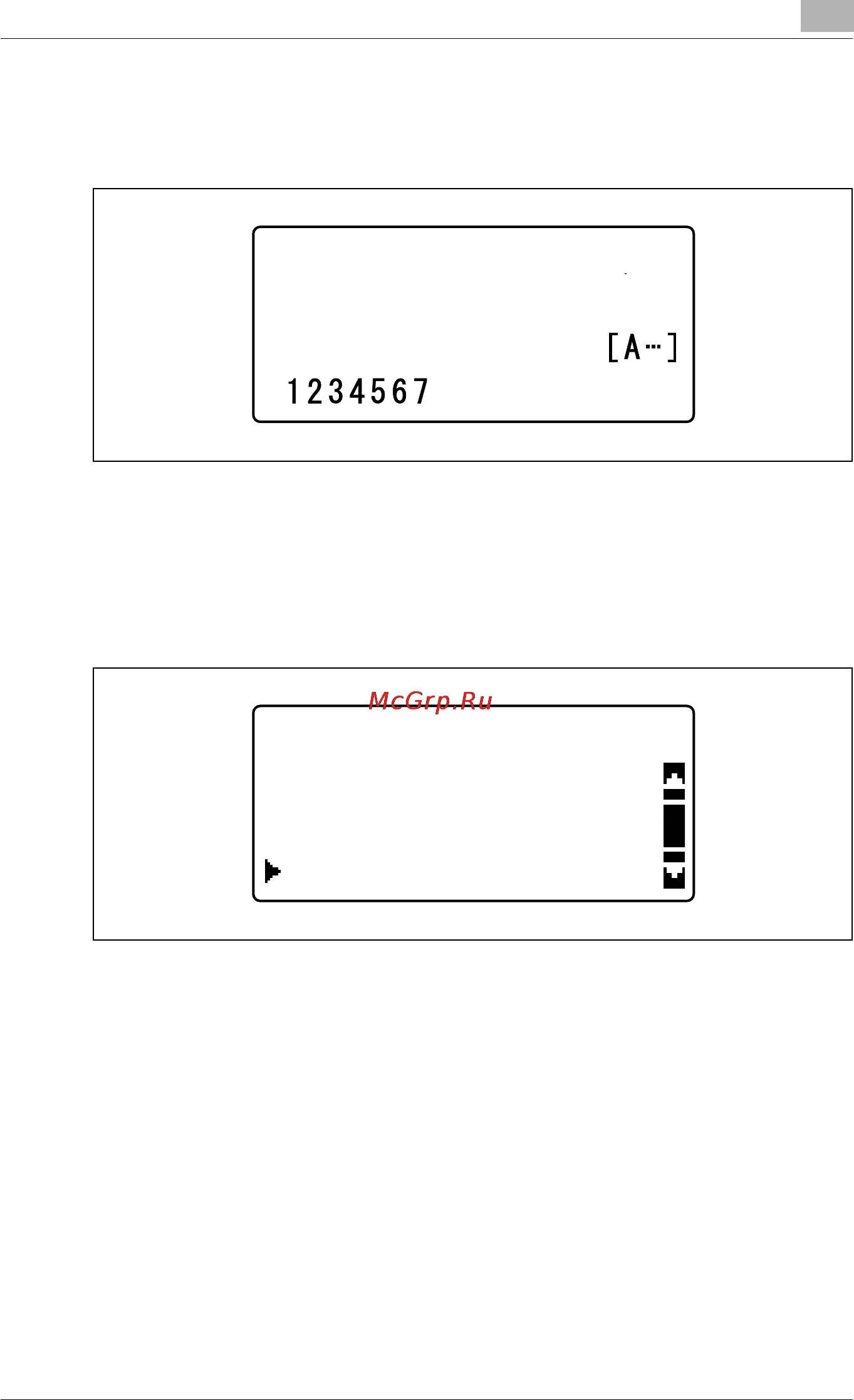

Konica Minolta bizhub 181 [175/340] User destination

Registering destinations

NC-503 6-31

8 With the one-touch dial keys and speed dial numbers, enter the

recipient to be registered.

The new recipient registered with the group appears.

– Press the [OK] key to display the screen shown in step 7. To add

more recipients, repeat steps 7 and 8 until all recipients to be added

have been registered.

9 After registering all recipients to be added, press the [,] or [+] key until

"RETURN" is selected, and then press the [OK] key.

After the message "REGISTERED" appears, the "DIAL

REGISTRATION" menu appears again.

GROUP DIAL 32

:user

DESTINATION

GROUP DIAL 32

DELETE

EDIT

RETURN
