2
Getting ready
2-4 NC-503

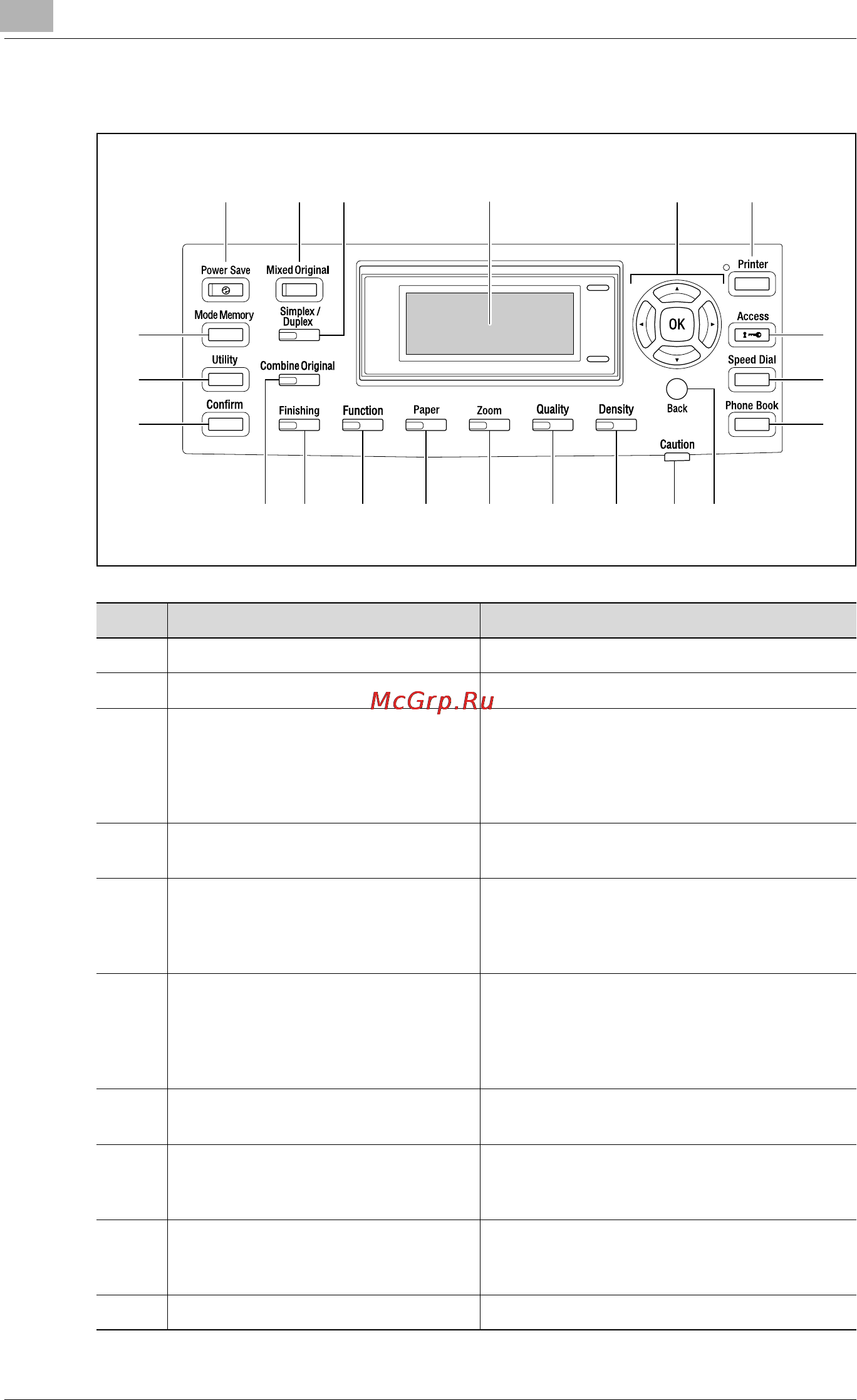

2.2 Names of control panel parts and their functions
123 4 56
7
8
9
101112131415161718
19
20
21
No. Part name Description
1 [Power Save] key Press to enter Power Save mode.
2 [Mixed Original] key/indicator Press to select the "Mixed Original" setting.
3 [Simplex/Duplex] key/indicator Press to select double-sided copying. Select
"1-SIDE->1-SIDE", "1-SIDE->2-SIDE", "2-
SIDE->1-SIDE" or "2-SIDE->2-SIDE". If any
setting other than "1-SIDE->1-SIDE" is select-
ed, the indicator lights up.
4 Display Displays the number of copies, zoom ratio, fax
mode, setting menus and error messages.
5[+], [,], [*], and [)] keys
[OK] key
Press the [+], [,], [*], and [)] keys to select
menu items in the display and change their
settings.
Press the [OK] key to apply the current setting.
6 [Printer] key/indicator This indicator lights up while data is being
printed from the computer and flashes while
data is being sent.
For details, refer to the user manual for the
printer driver.
7 [Access] key Press when account track settings have been
applied.
8 [Speed Dial] key Press to register frequently used fax numbers
and addresses, and to recall them during
transmissions.
9 [Phone Book] key/indicator Press to display the information programmed
for one-touch dialing, group dialing and speed
dialing.
10 [Back] key Press to return to the previous screen.
