Using PageScope Web Connection

9-4 NC-503

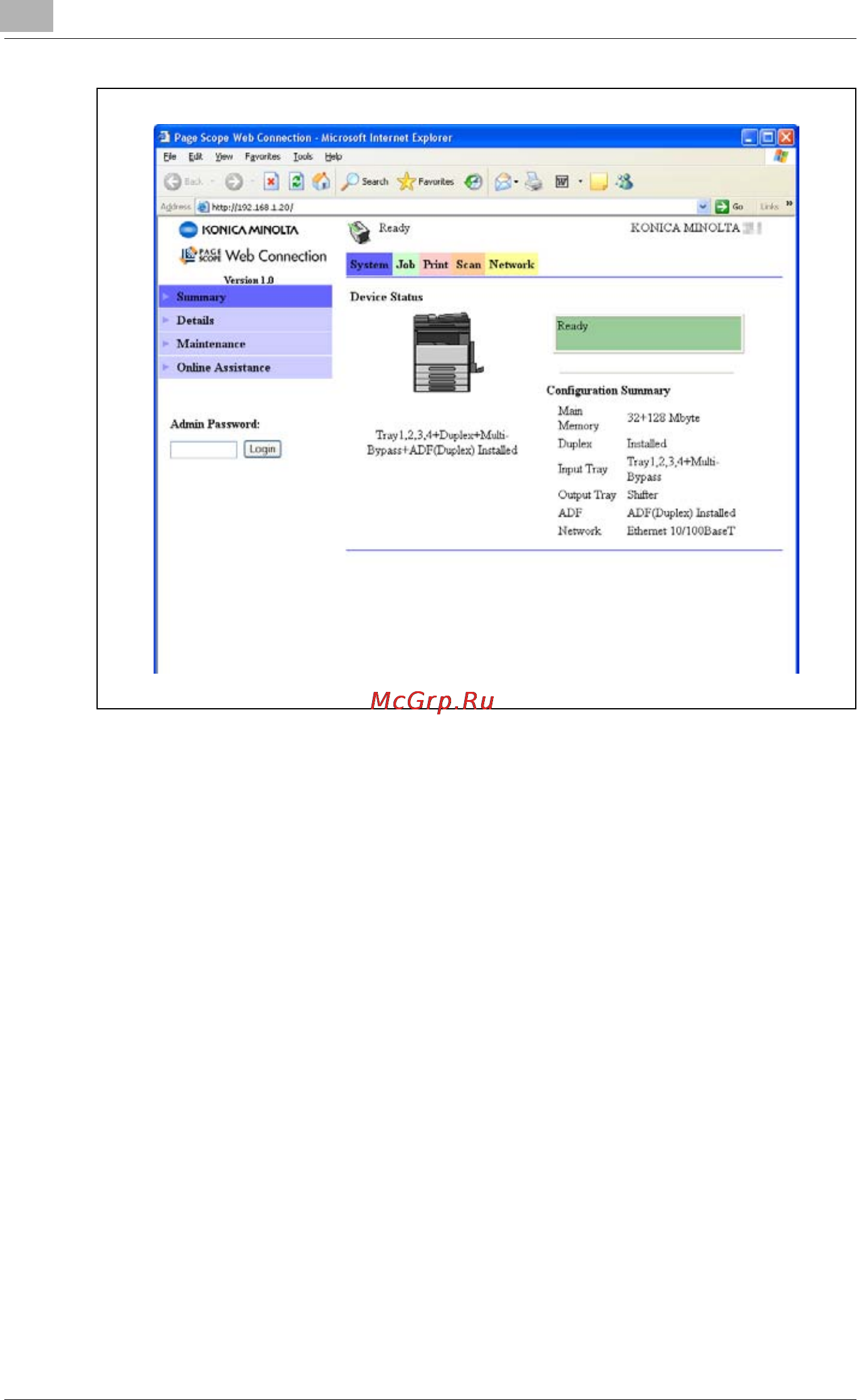

Using PageScope Web Connection, the following operations can be

performed.

- Changing the settings

– Registering destination dialing

– Changing printer settings (when IC-206 is installed)

– Changing network settings

- Remotely managing the status

– Viewing this machine paper tray information, consumables information

and counter totals

– Checking print jobs (Can be deleted in Administrator mode)

- Maintenance

– Resetting the network interface card and image controller

– Initializing the image controller
