Touch
File Margin
.
1
You must follow certain rules when
placing the original. See "Loading the
Originals in Margin Mode" on p. 98.
NOTE
Place the original(s).
2
1134P276CB
Cover File
Margin
Page
Insertion
OHP Inter-
leaving
Book
Copy
Edge/Frame
Erase
1134P276CA

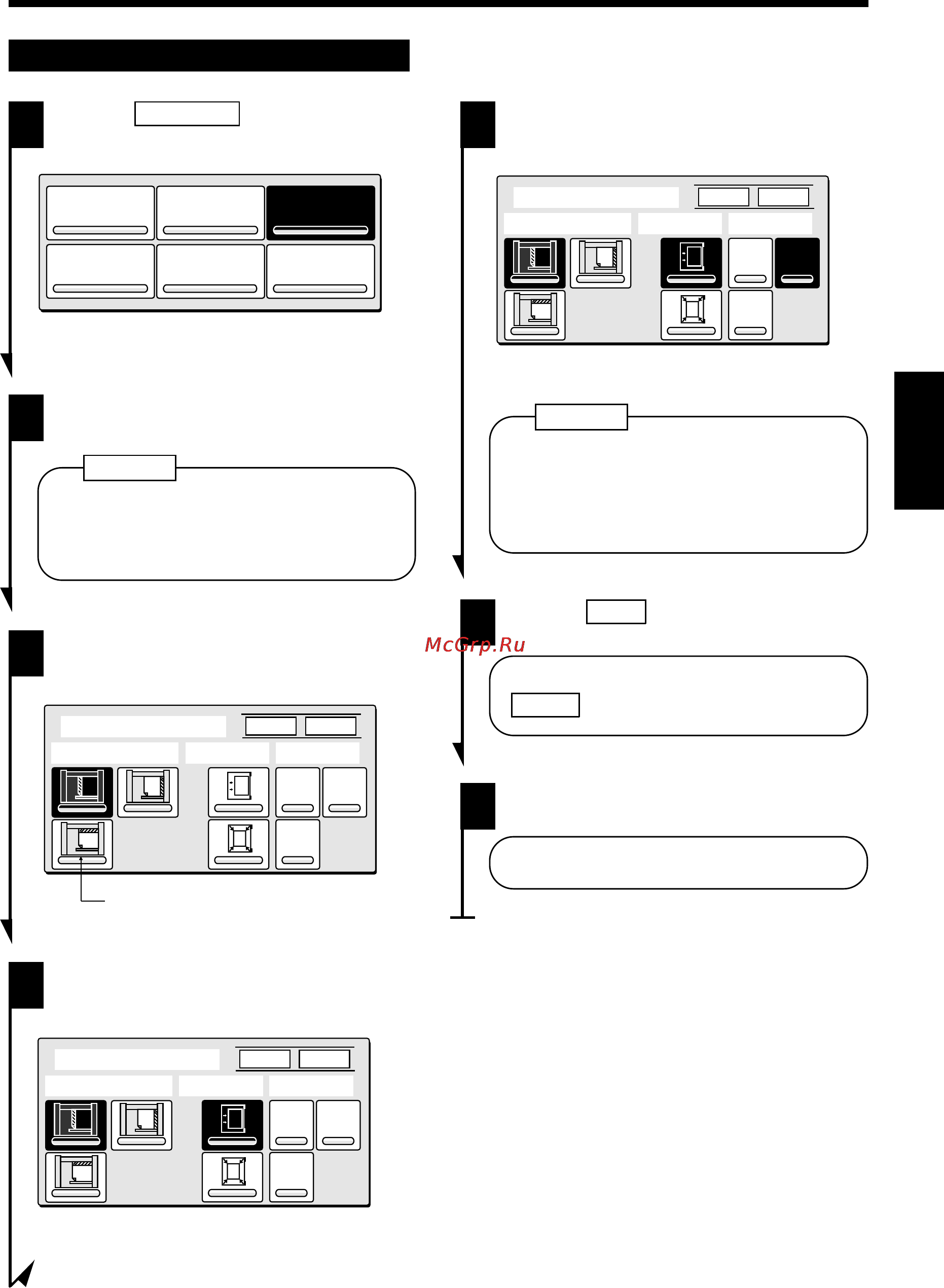

Selecting a Particular Margin Function
Select the "Position" of the margin.
3
1075O221DA
File Margin
EnterCancel
Position Mode Width
A
A
10mm 15mm
20mm
1075O221DA
Shown only when 2 in 1
mode is selected.
Select the "Mode."
4
1075O222DA
File Margin
EnterCancel
Position Mode Width
A
A
10mm 15mm
20mm
1075O222DA
Select the "Width" of the margin.
5
1075O223DA
File Margin
EnterCancel
Position Mode Width
A
A
10mm 15mm
20mm
1075O223DA
Having a margin width larger than
necessary could result in part of the
image missing on the copy. Try to keep
a logical margin width.
NOTE
Touch
Enter
.
6
To cancel the Margin settings, touch
Cancel
.
Press the Start Key.
7
The copy cycle is run for Margin.
Chapter 3
Making Copies
10. Auxiliary Functions
97
