Konica Minolta EP6000 [41/193] Basic copying overview
![Konica Minolta EP6000 [41/193] Basic copying overview](/views2/1122172/page41/bg29.png)
•
Place the original in position (step 1), set the number of copies to be made (step 8), and press the
Start Key (step 9). This will allow you to make a full-size copy or copies on paper of the same size
as the original.
Note: Automatically selected in the initial mode are Auto Paper, full size, and Auto Exposure.
•
The selections you make on the Touch Panel will change the exposure level, zoom ratio, the
type of copy and so on.

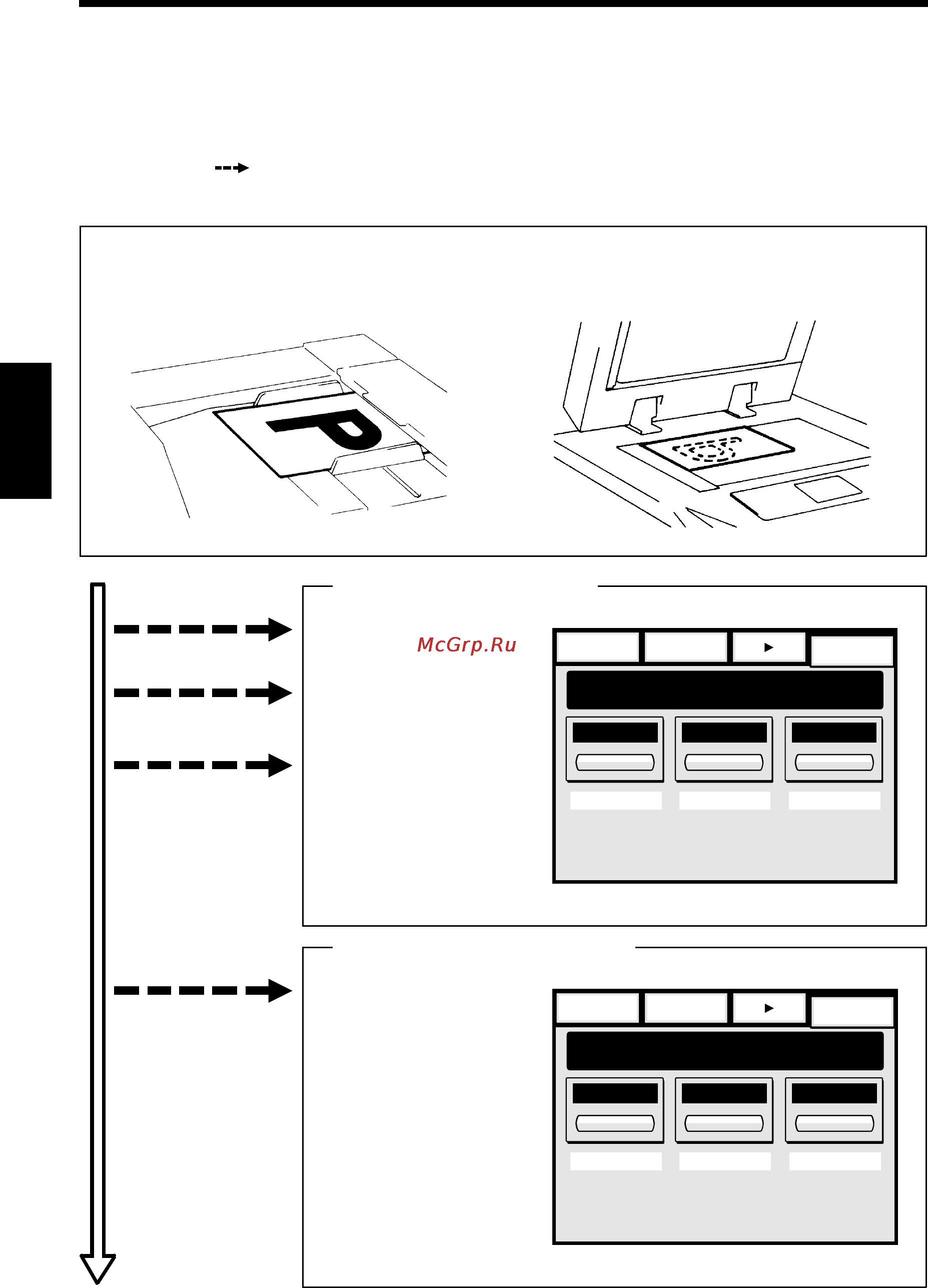

1. Placing the Original
➭
p. 30
•
Load the originals face up on the AFR-9.
1139O0210A
•
Raise the Original Cover and place the
original face down on the Original Glass.
1075O015AA
2. Touch Paper.
➭
p. 40
3. Touch Zoom.
➭
p. 42
4. Touch Exposure.
➭
p. 45
Selecting the basic functions
To change the copy paper
size
To change the zoom ratio
To change the exposure
level
5. Touch Orig. Copy.
➭
p. 46
Selecting the original copy type
▲
▲
•
To make a 1-sided copy
•
To save the copy paper
1. Basic Copying Overview
Auxiliary Finishing
Orig. Copy
Exposure PaperZoom
Ready to copy.
Auto Expo. x1.000 Auto Paper
1075O270CA
1
Basics
1075O270CA
Auxiliary Finishing
Orig. Copy
Exposure PaperZoom
Ready to copy.
Auto Expo. x1.000 Auto Paper
1075O270CA
1
Basics
1075O270CA
Chapter 3
Making Copies
28
