The size of the original should be A4
crosswise or A5 crosswise for 2-in-1.
NOTE

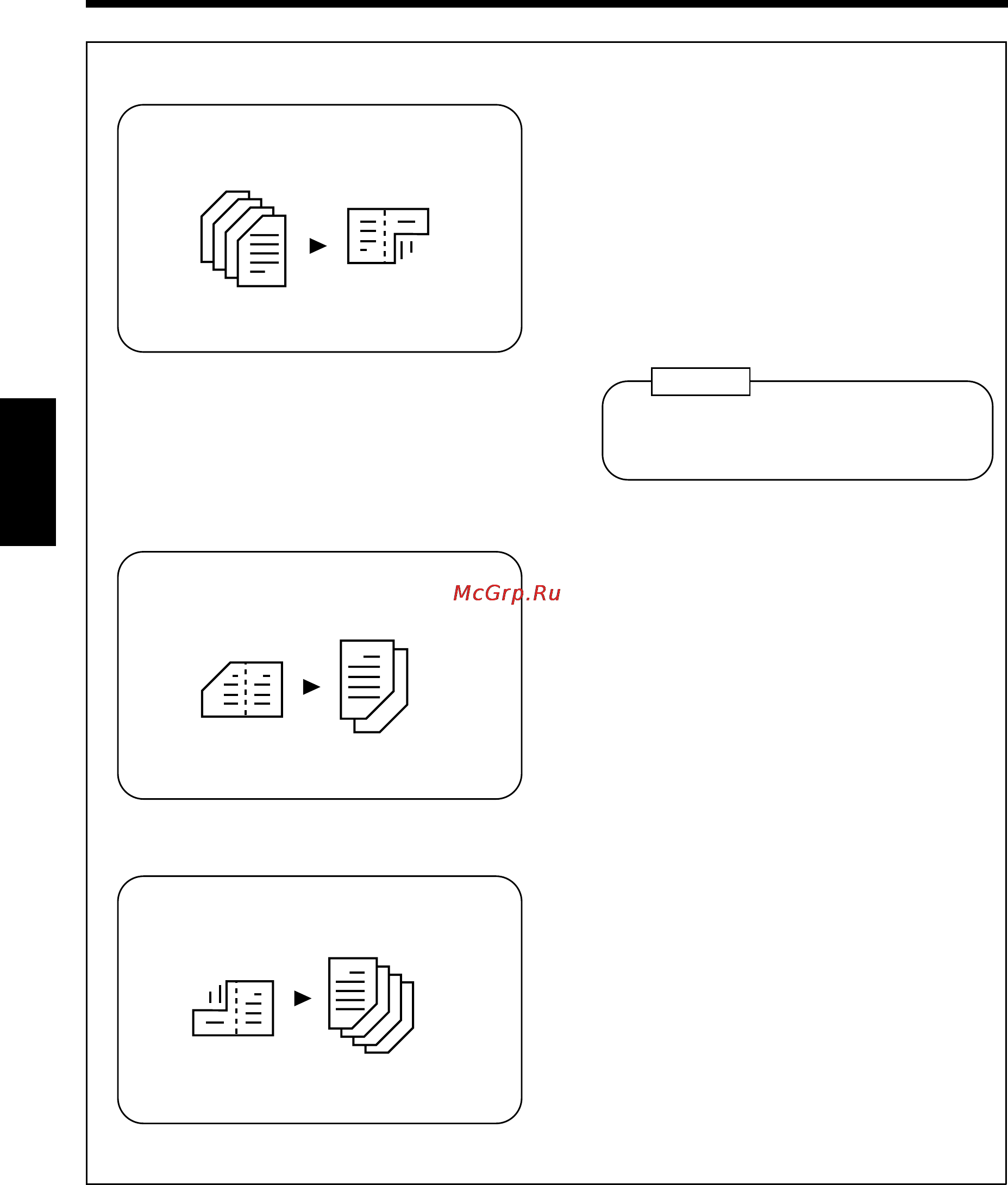

1 2[2in1] = 2-sided 2-in-1 copy
•
Select 1 2[2in1] to make a 2-sided copy,
through reduction, from four 1-sided
originals. Each 2-original pair will be placed
side-by-side on either side of the copy.
Note: You need 1/4 as many sheets of copy
paper as required otherwise.
➭
p. 54
▲
▲
1136P210AA
1136P210AA
Originals Copy
1[2in1] 1 = 1-sided 2-in-1 separation copy
•
Select 1[2in1] 1 to make 1-sided
page-by-page copies of a 1-sided original
which is the result of 2-in-1 copying.
Note: You need twice as many sheets of copy
paper as the original.
➭
p. 55
▲
▲
1136P211AA
1136P211AA
Original
Copies
2[2in1] 1 = 2-sided 2-in-1 separation copy
•
Select 2[2in1] 1 to make 1-sided
page-by-page copies of a 2-sided original
which is the result of 2-sided 2-in-1 copying.
Note: You need four times as many sheets of
copy paper as the original.
➭
p. 56
▲
▲
1136P212AA
1136P212AA
Original
Copies
Chapter 3
Making Copies
8. Selecting the Original Copy Type
48
