1. When the Message "The current Paper Drawer is empty." Appears
Auxiliary Finishing
Basics
The current Paper Drawer is empty.
Please reload.
1075O214DA
Orig. Copy
Auto Expo. x1.000
A4
1
2
3 L
3
L
2
Auto Paper
A4
A3
A4
A4
Manual
1
1075O214DA

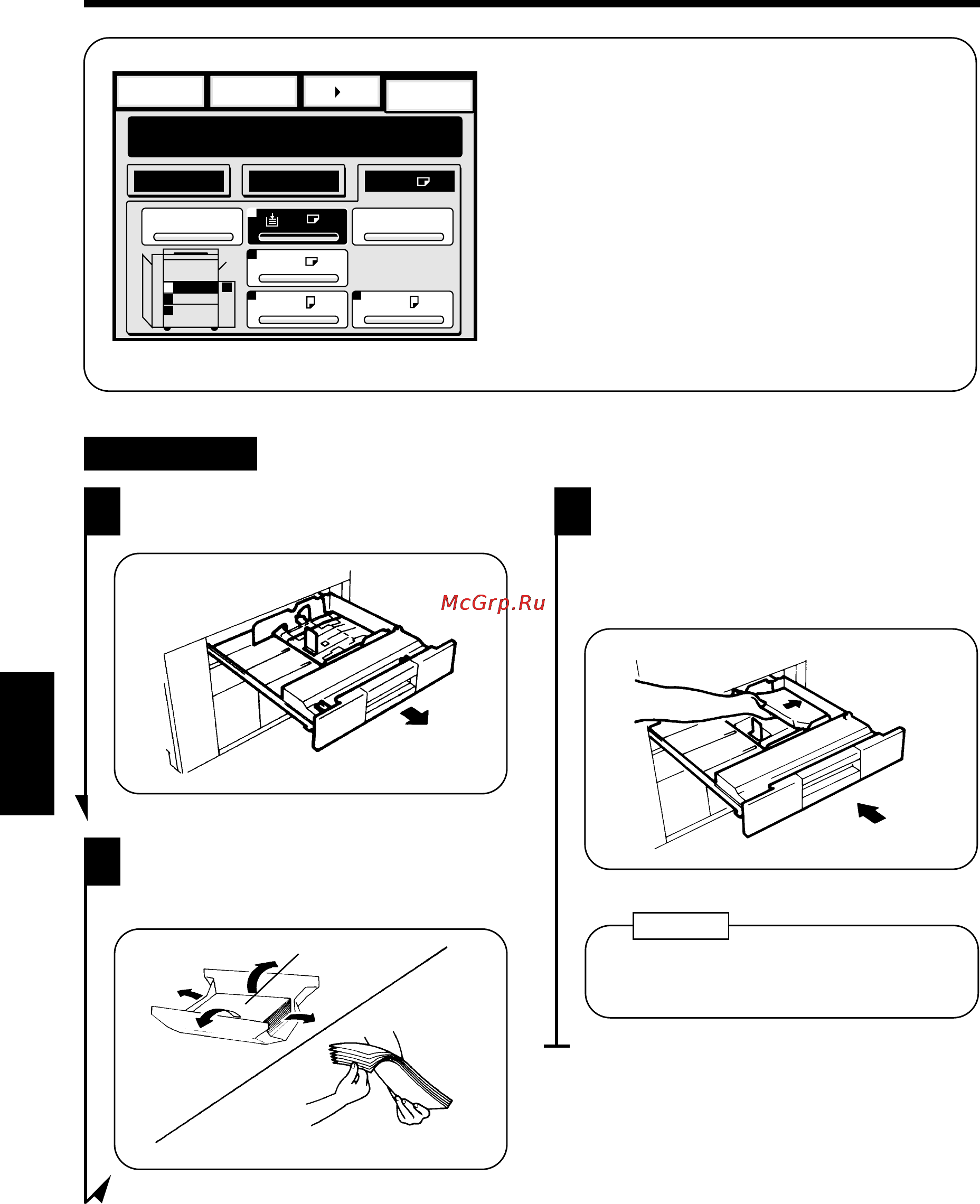

When the Drawer currently selected for use runs
out of paper, the message shown on the left
appears. The current copy cycle is interrupted
and you cannot then start a new copy cycle.
The blinking Drawer has run out of paper.
Load the Drawer with paper by using the
following procedure.
1st/2nd Drawer
Slide the Drawer out.
1
1075O101DA
Unwrap the package of copy paper and
fan the paper stack thoroughly.
2
1139O1370A
Front Side
Load the paper stack into the Drawer
so that its front side (the side facing up
when the package was unwrapped)
faces down. Then, slide the Drawer
back in.
3
1075O102DA
The paper should be loaded no higher
than the
▼
(Max. Level Indicator).
NOTE
Chapter 5
When a Message Appears
128
