![Konica Minolta EP6000 [118/193] Mode check](/img/pdf.png)
Konica Minolta EP6000 [118/193] Mode check
![Konica Minolta EP6000 [118/193] Mode check](/views2/1122172/page118/bg76.png)

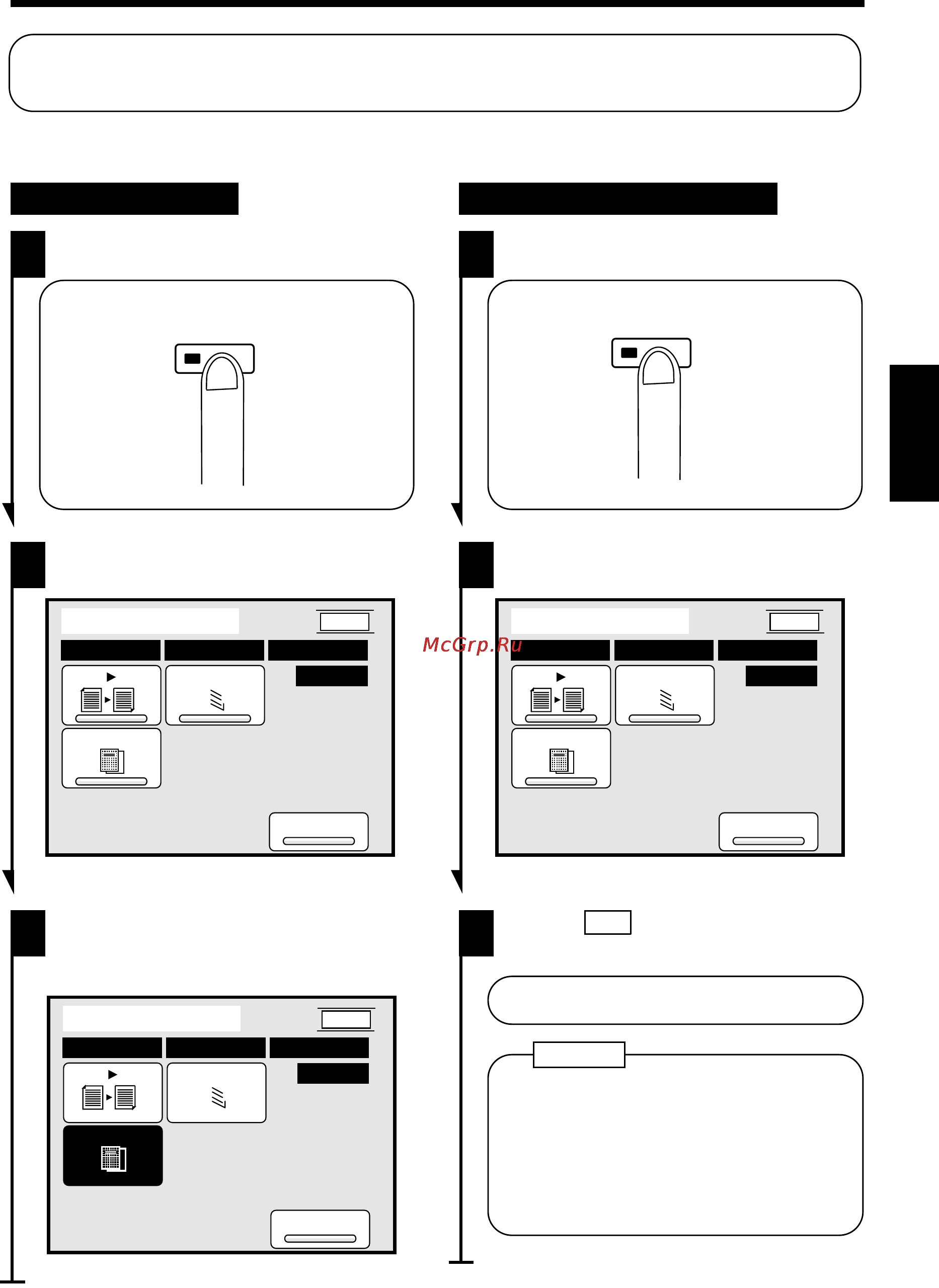

When the Mode Check Key on the control panel is pressed, the currently set functions are shown
on the Touch Panel. The key can be used to change or check for the current settings.
11. Mode Check
Press the Mode Check Key.
1
To Change Functions
Using the Mode Check Key
The current settings appear on the
Touch Panel.
2
1134P362CA
Mode Check
Auto Expo. X1.000 Auto Paper
Orig. Copy
Finishing
Cover
Mixed Orig
1
Exit
1134P362CA
Touch the key of the function you
want to change and make the necessary
change.
3
1134P304CA
Mode Check
Exit
Auto Expo. X1.000 Auto Paper
Orig. Copy
Finishing
Cover
Mixed Orig
1
1134P304CA
Press the Mode Check Key.
1
To Check for Current Settings
The current settings appear on the
Touch Panel.
2
1134P362CA
Mode Check
Auto Expo. X1.000 Auto Paper
Orig. Copy
Finishing
Cover
Mixed Orig
1
Exit
1134P362CA
Touch
Exit
.
3
•
The Basic screen reappears.
The Mode Check Key lights up if Cover,
Page Insertion, OHP Interleaving, File
Margin, Edge/Frame Erase,
1 [2in1], 1 2[2in1], 1[2in1] 1,
2[2in1] 1, or Book Copy has been
set.
NOTE
▲
▲
▲
▲
Mode Check
1134P41
6
1134P416CA
Mode Check
1134P416
C
1134P416CA
Chapter 3
Making Copies
105
