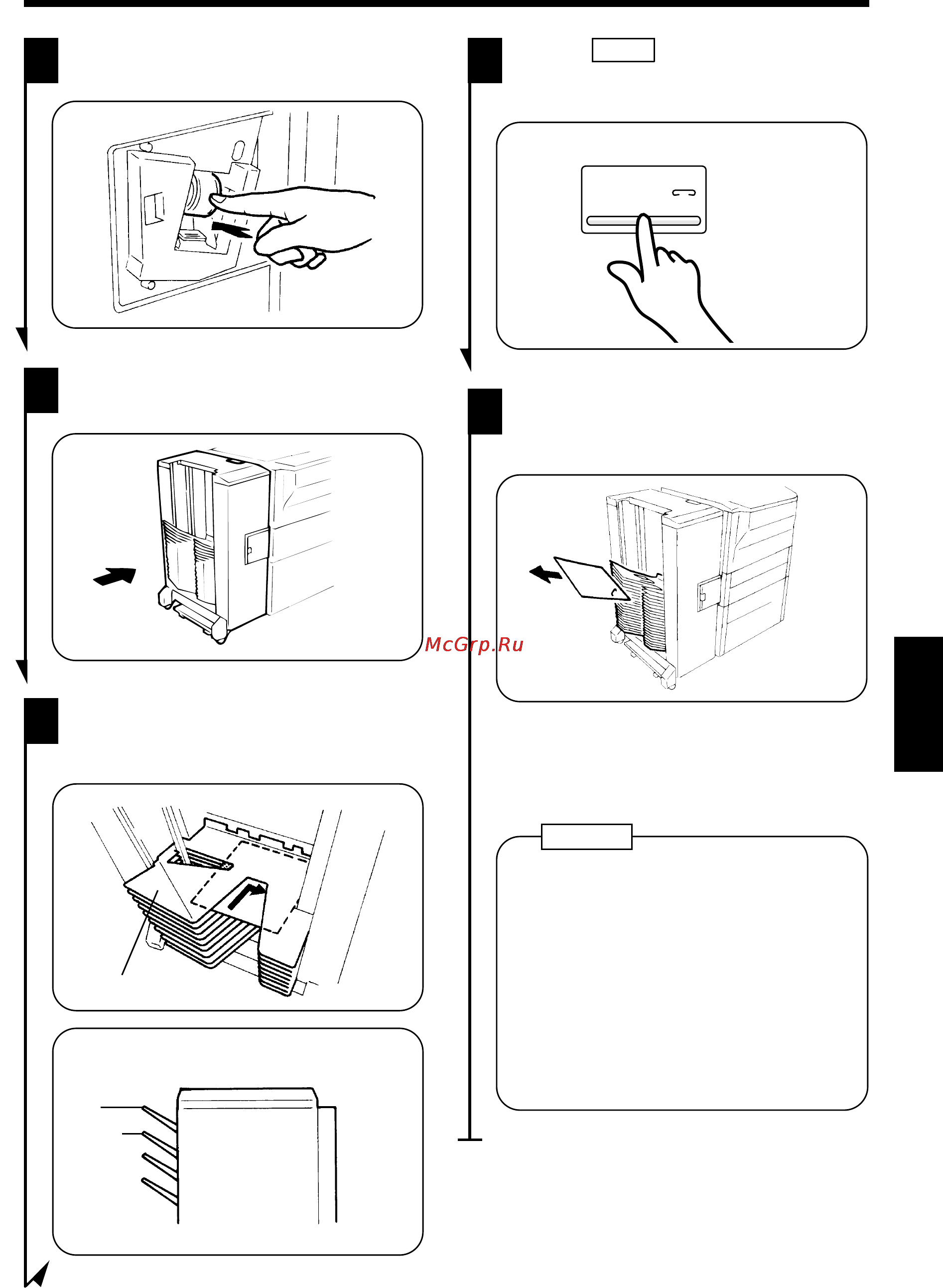

Touch
Staple
on the Touch Panel.
Then, the Staple Sorter test-staples the
paper several times automatically.
8
1134P418C
A
Staple
1134P418CA
1136O013AA
Close the Staple Cover and slide the
Staple Sorter back against the copier.
6
1136O167AA
1136O167AA
Insert the new Staple Cartridge until a
click is heard.
5
1136O016AA
Non-Sort
Bin
1st Bin
Staple Sorter
Place a sheet of paper into the 1st Bin
(under the Non-Sort Bin) of the Staple
Sorter.
7
Non-Sort Bin
1136O015AA
Remove the sheet of paper from the 1st
Bin and check that it has been stapled.
9
1136O017AA
*
If no staples are evident, place
another sheet of paper into the 1st
Bin and repeat steps 7, 8, and 9.
•
Replace the Staple Cartridge only after
you are prompted to do that by the
message. Removing the Staple
Cartridge before then will result in
stapling trouble.
•
Immediately after the new Staple
Cartridge has been loaded, be sure to
follow steps 7 through 9.
•
DO NOT turn the green gear near the
Cartridge inside the Staple Unit.
NOTES
Chapter 5
When a Message Appears
3. When the Message "The Staple Cartridge is empty." Appears
135
