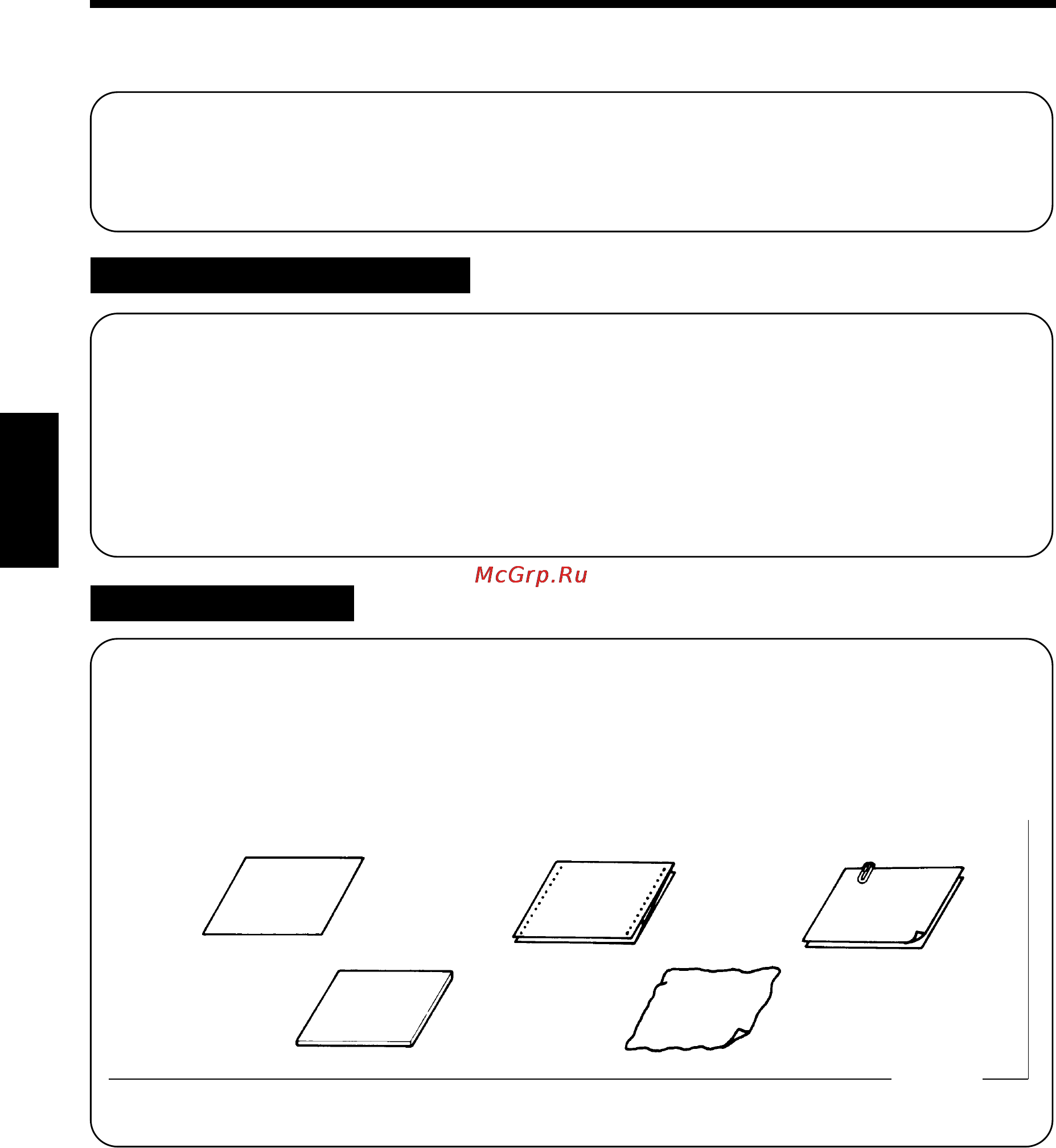

Typing paper,
paraffin paper,
and other thin
paper
Thick paper
Continuous
forms
Wrinkled or
dog-eared
original
Stapled
originals
2. Placing Originals
Duplexing Document Feeder AFR-9 automatically feeds in sheet originals placed on the
Document Feed Tray one by one. After the copy cycle has been completed, it automatically
ejects the original out onto the Document Exit Tray.
Some originals may not be suitable for reliable operation of the AFR-9. Here is a guideline.
Using Duplexing Document Feeder AFR-9
Originals Suitable for the AFR-9
Type of Originals: Sheets
Type of Original Paper: Plain paper (weighing 50 to 110 g/m
2
)
Original Size: Normal mode
A3L, B4L, A4L, A4C, A5L, A5C, FLSL
2-in-1 (Dual Original Scanning) mode
A4C, A5C
Mixed Original Detection mode
A3L, B4L, A4L, A4C, FLSL
Originals Not Suitable
•
Typing paper, paraffin paper, and other thin paper (weighing less than 50 g/m
2
)
•
Thick paper (weighing more than 110 g/m
2
)
•
Transparencies, translucent paper
•
Wrinkled, dog-eared, curled, or torn originals
•
Clipped or stapled originals
•
Carbon-backed originals
Note: For any of these types of originals, raise the AFR-9 and place the original manually on
the Original Glass to make a copy.
➭
p. 32
1134O073AA
Chapter 3
Making Copies
30
