VP-770 - Using the Embedded Web Pages

4. Click OK. The lower part of the screen displays the status of each upgrade

process stage.

First the flash memory is erased and then the file is uploaded:

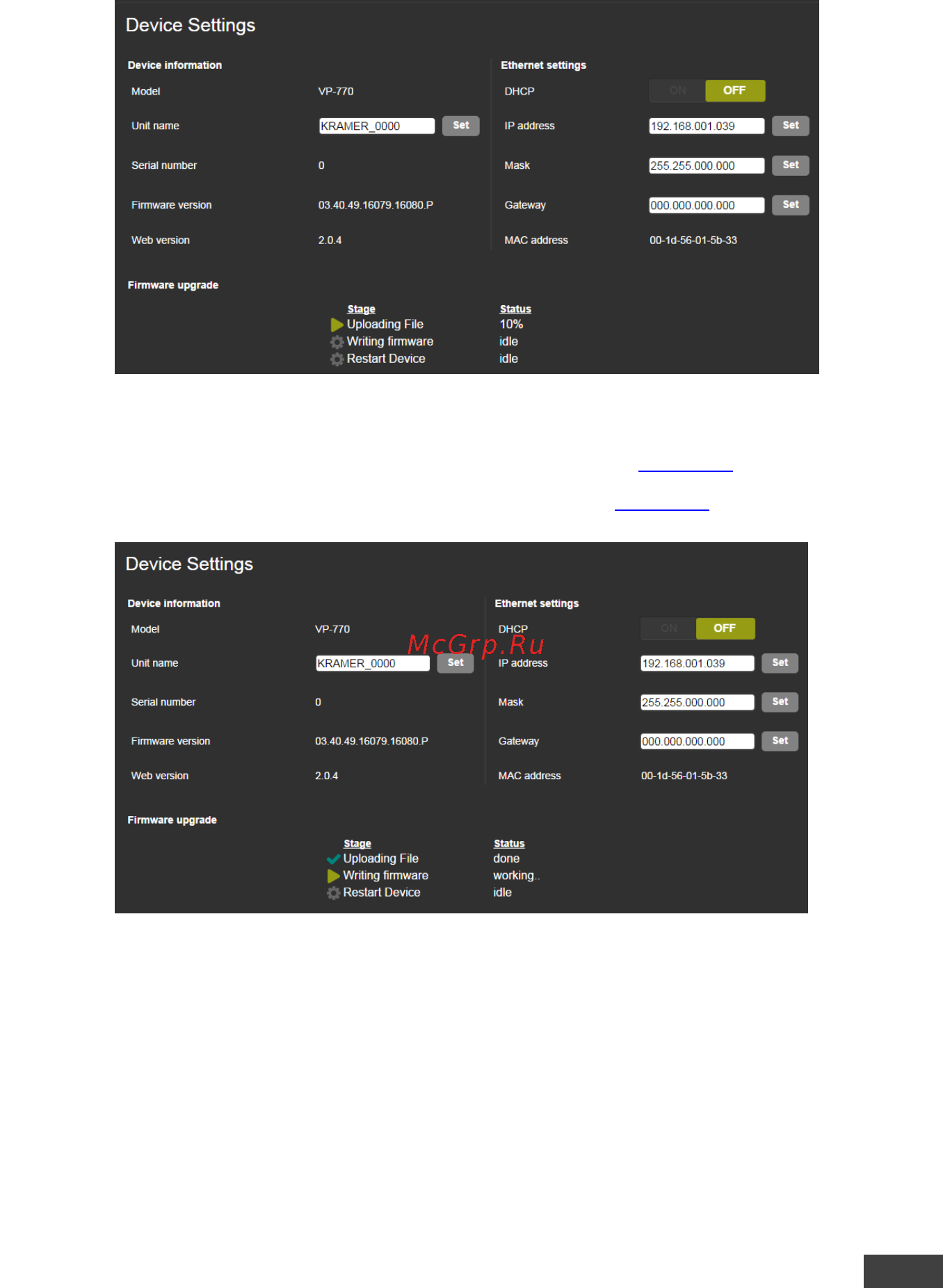

Figure 61: The Device Settings Page –Uploading the File

After the file is uploaded, the firmware is written (see Figure 62) and upon

completion, the system automatically restarts (see Figure 63).

Figure 62: The Device Settings Page – Writing the Firmware
