Chapter 18 File Manager
NWA/WAC Series CLI Reference Guide
103
18.6.4 Command Line FTP Configuration File Download Example
The following example gets a configuration file named today.conf from the NWA/WAC and saves it
on the computer as current.conf.

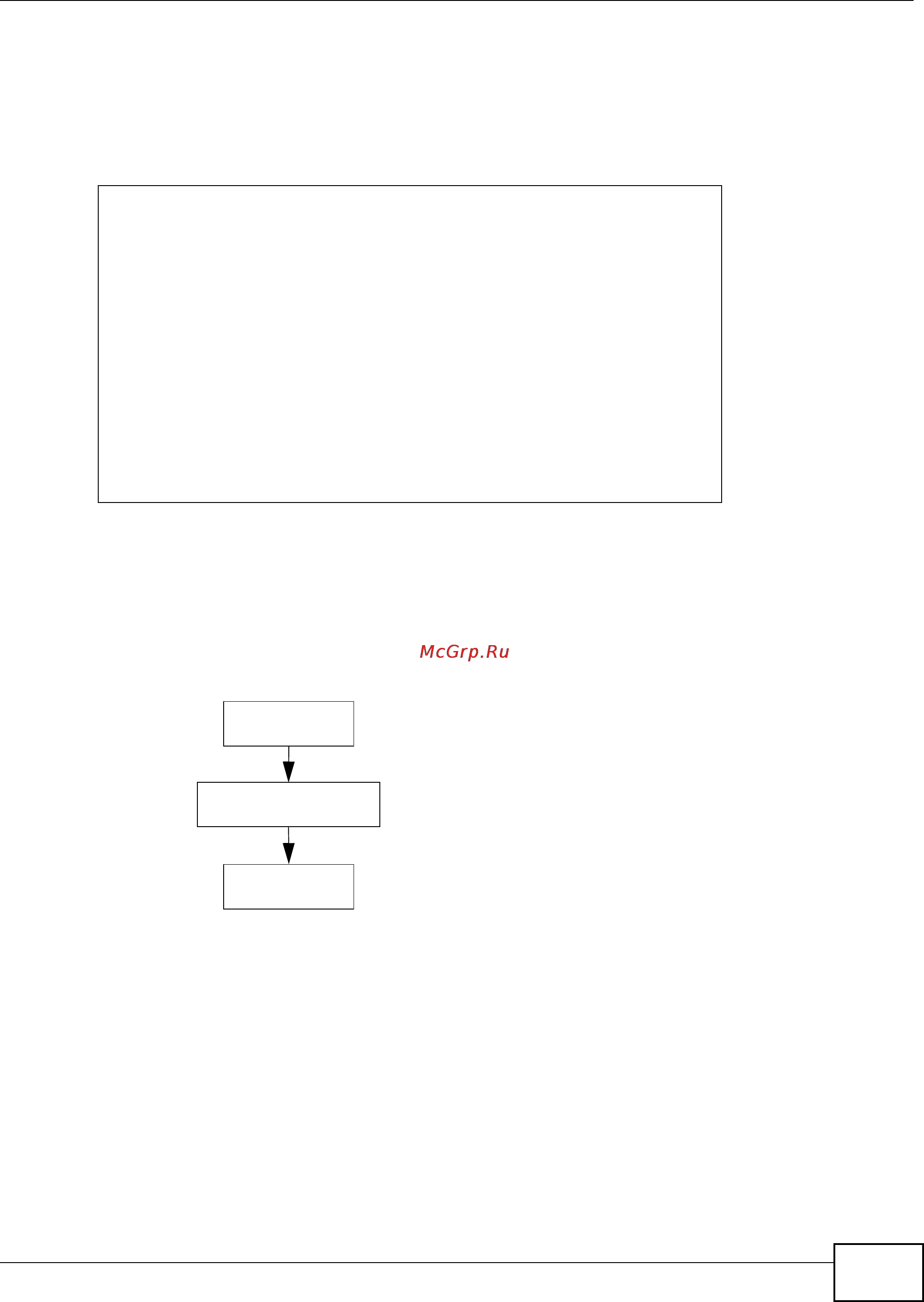

Figure 12 FTP Configuration File Download Example
18.7 NWA/WAC File Usage at Startup
The NWA/WAC uses the following files at system startup.
Figure 13 NWA/WAC File Usage at Startup
1 The boot module performs a basic hardware test. You cannot restore the boot module if it is
damaged. The boot module also checks and loads the recovery image. The NWA/WAC notifies you if
the recovery image is damaged.
2 The recovery image checks and loads the firmware. The NWA/WAC notifies you if the firmware is
damaged.
C:\>ftp 192.168.1.1
Connected to 192.168.1.1.
220 FTP Server [192.168.1.1]
User (192.168.1.1:(none)): admin
331 Password required for admin.
Password:
230 User admin logged in.
ftp> bin
200 Type set to I
ftp> cd conf
250 CWD command successful
ftp> get today.conf current.conf
200 PORT command successful
150 Opening BINARY mode data connection for conf/today.conf (20220
bytes)
226 Transfer complete.
ftp: 20220 bytes received in 0.03Seconds 652.26Kbytes/sec.
1. Boot Module
2. Recovery Image
3. Firmware
