Chapter 12 VPN
P-792H v2 User’s Guide
168
12.5.1 Security Parameter Index (SPI)
An SPI is used to distinguish different SAs terminating at the same destination and
using the same IPSec protocol. This data allows for the multiplexing of SAs to a
single gateway. The SPI (Security Parameter Index) along with a destination IP
address uniquely identify a particular Security Association (SA). The SPI is
transmitted from the remote VPN gateway to the local VPN gateway. The local VPN
gateway then uses the network, encryption and key values that the administrator
associated with the SPI to establish the tunnel.
Current ZyXEL implementation assumes identical outgoing and incoming SPIs.
12.6 Configuring Manual Key
You only configure VPN manual key when you select Manual in the IPSec Key
Mode field on the VPN Setup-Edit screen. This is the VPN Setup - Manual Key
screen as shown next.

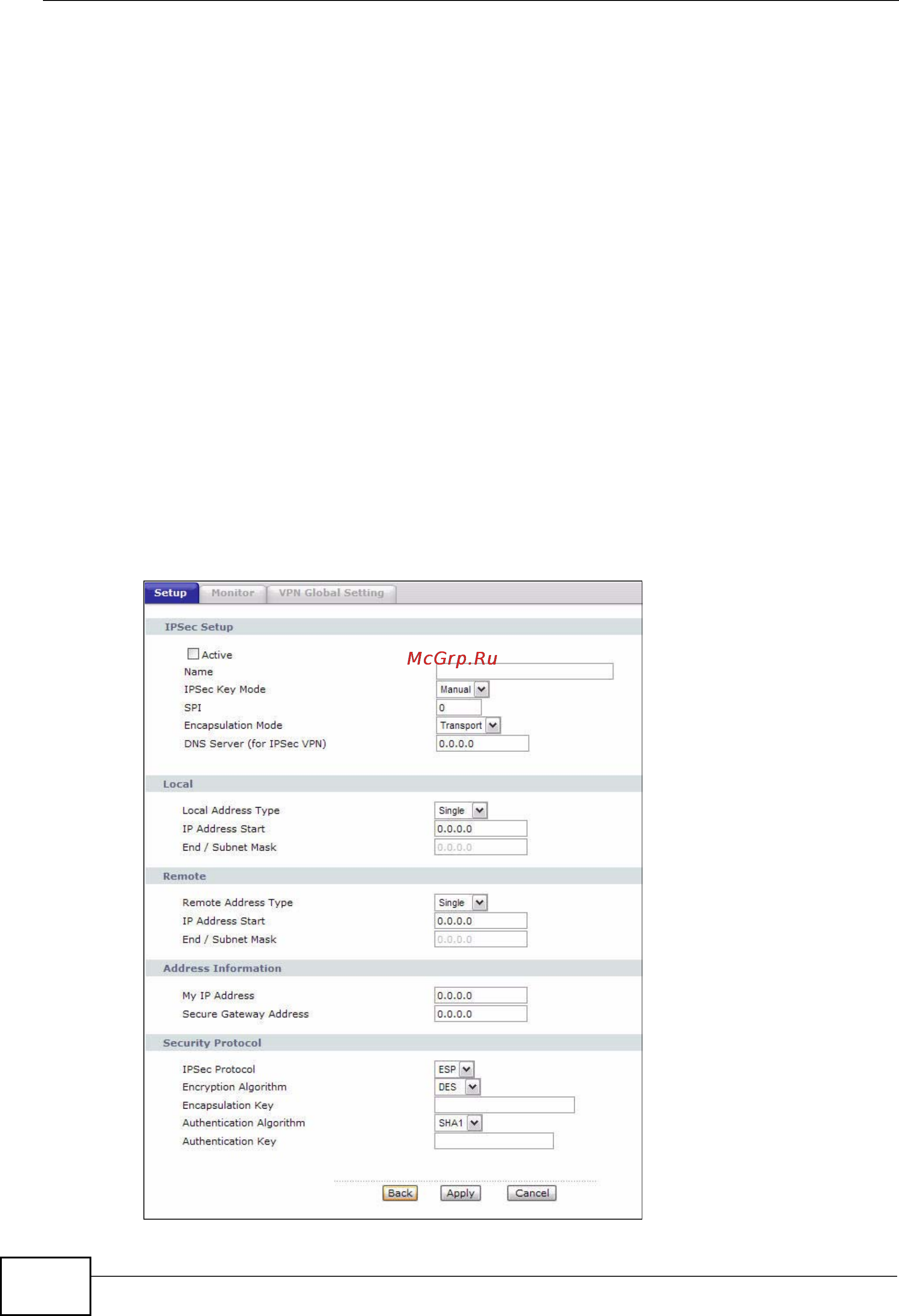

Figure 75 Security > VPN > Setup > Manual Key
