Chapter 12 VPN
P-792H v2 User’s Guide
172
12.9.7 on page 178 on keep alive to have the P-792H v2 renegotiate an IPSec SA
when the SA lifetime expires, even if there is no traffic.

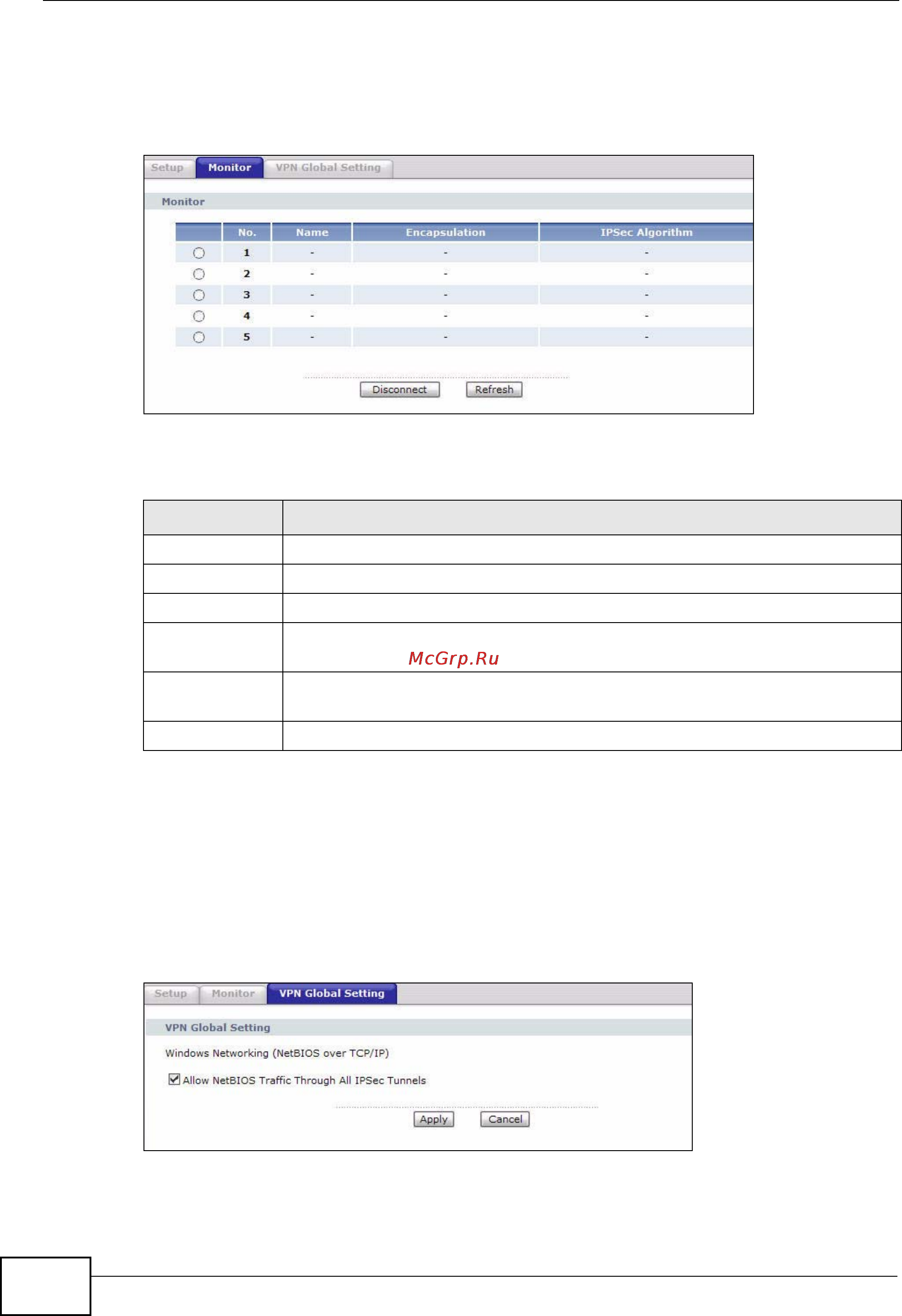

Figure 76 Security > VPN > Monitor
The following table describes the fields in this screen.
12.8 Configuring VPN Global Setting
To change your P-792H v2’s global settings, click VPN > VPN Global Setting.
The screen appears as shown.
Figure 77 Security > VPN > Global Setting
Table 47 Security > VPN > Monitor
LABEL DESCRIPTION
No This is the security association index number.
Name This field displays the identification name for this VPN policy.
Encapsulation This field displays Tunnel or Transport mode.
IPSec
Algorithm
This field displays the security protocol, encryption algorithm, and
authentication algorithm used in each VPN tunnel.
Disconnect Select one of the security associations, and then click Disconnect to
stop that security association.
Refresh Click Refresh to display the current active VPN connection(s).
