Chapter 4 Internet Setup Wizard
P-792H v2 User’s Guide
51
The following table describes the fields in this screen.
3 Use the read-only summary table to check whether what you have configured is
correct. Click Finish to complete and save the wizard setup.

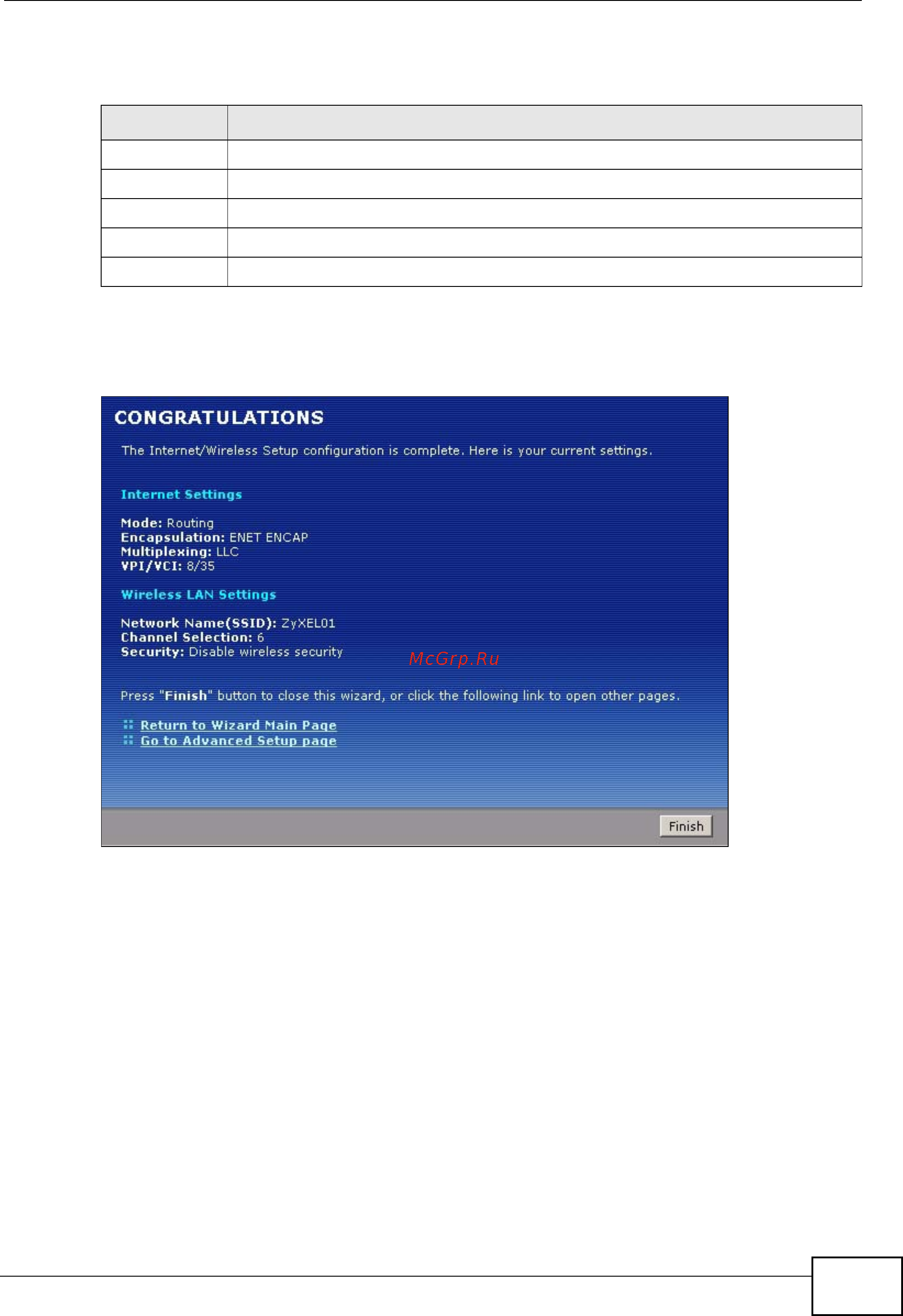

Figure 21 Internet Access Setup Complete
4 Launch your web browser and navigate to www.zyxel.com. Internet access is just
the beginning. Refer to the rest of this guide for more detailed information on the
complete range of P-792H v2 features. If you cannot access the Internet, open the
web configurator again to confirm that the Internet settings you configured in the
wizard setup are correct.
Table 11 Internet Connection with PPPoA
LABEL DESCRIPTION
User Name Enter the login name that your ISP gives you.
Password Enter the password associated with the user name above.
Back Click this to return to the previous screen without saving.
Apply Click this to save your changes.
Exit Click this to close the wizard screen without saving.
