Advanced Configuration
100
ProSAFE Dual Band Wireless-N Access Point WNDAP360

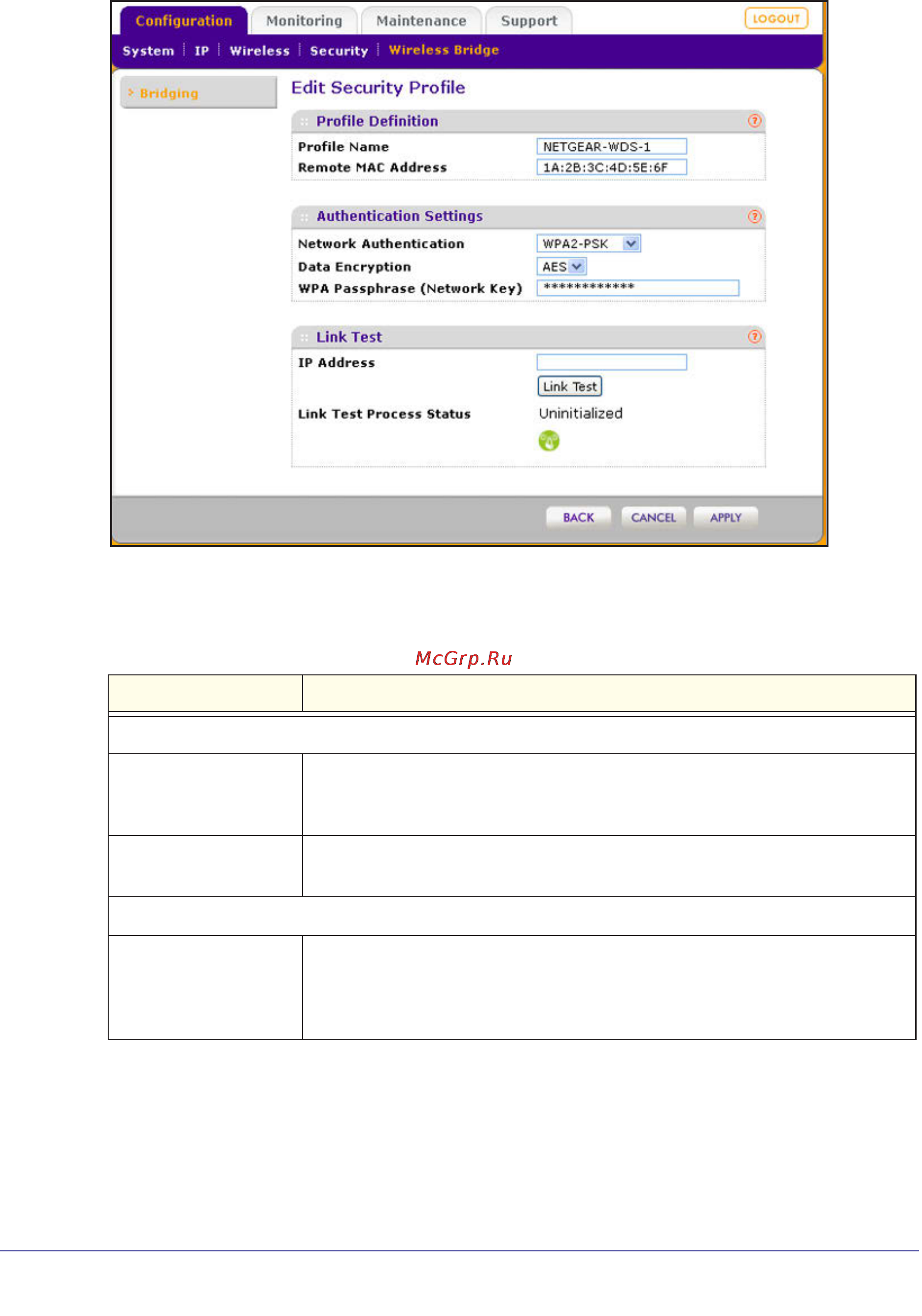

Figure 61.
f. Specify the settings as explained in the following table:
Table 28. Wireless Signal Repeating Profile and Authentication Settings
Field Description
Profile Definition
Profile Name Enter a profile name that is easy to remember. The default names for the four
security profiles are NETGEAR-WDS-1, NETGEAR-WDS-2,
NETGEAR-WDS-3, and NETGEAR-WDS-4.
Remote MAC Address Enter the MAC address of the remote wireless access point (the MAC
address of AP1 or AP3 in Figure 59 on page 98).
Authentication Settings
Network Authentication
and
Data Encryption
From the Network Authentication drop-down list, select Open System,
WPA-PSK, or WPA2-PSK. Your selection determines the options that the
Data Encryption drop-down list provides, and whether or not the WPA
Passphrase (Network Key) field displays.
