Wireless Configuration and Security
49
ProSAFE Dual Band Wireless-N Access Point WNDAP360
Configure WPA with RADIUS, WPA2 with RADIUS, and WPA & WPA2 with
RADIUS
WPA, WPA2, and WPA & WPA2 security requires RADIUS-based 802.1x authentication, so
you also need to define RADIUS server settings. For information about RADIUS servers, see
Configure RADIUS Server Settings on page 51.

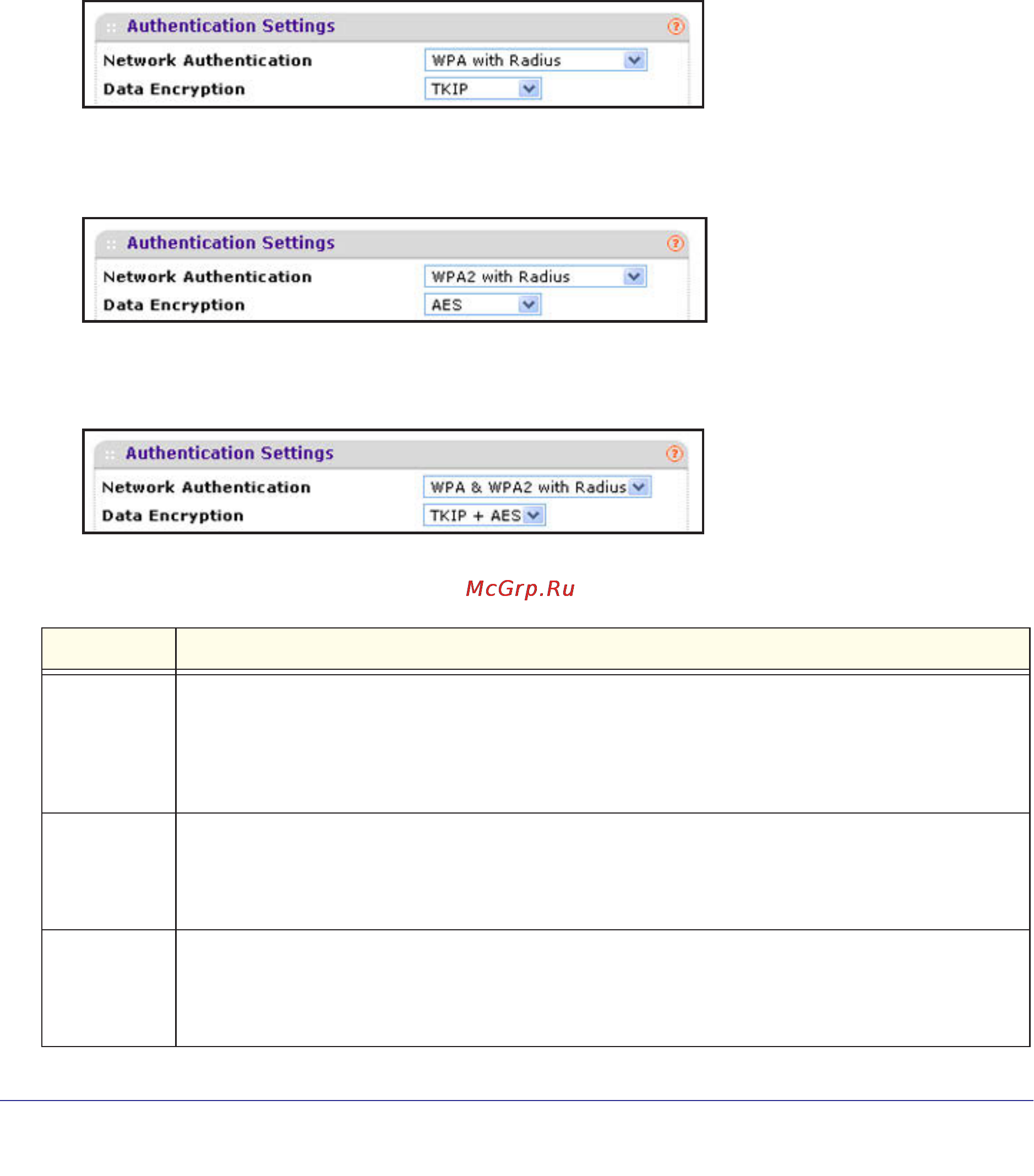

The selections that are available from the Data Encryption drop-down list depend on the type
of WPA authentication that you select from the Network Authentication drop-down list and are
shown in the following table.
• WPA with RADIUS
Figure 21.
• WPA2 with RADIUS
Figure 22.
• WPA & WPA2 with RADIUS
Figure 23.
Table 12. WPA with RADIUS, WPA2 with RADIUS, and WPA & WPA2 with RADIUS Settings
Field Descriptions
TKIP Temporal Key Integrity Protocol (TKIP) is the standard encryption method used with WPA. You
can also use TKIP with WPA2.
Note: TKIP provides only legacy (slower) rates of operation. NETGEAR recommends WPA2
authentication with AES encryption if you want to use the 11n rates and speed.
AES Advanced Encryption Standard (AES) is the standard encryption method used with WPA2.
Note: Although some wireless clients might support AES with WPA, the WNDAP360 wireless
access point does not support WPA with AES.
TKIP + AES The TKIP + AES encryption method is supported both for WPA and WPA2. Broadcast packets
use TKIP. For unicast (point-to-point) transmissions, WPA clients use TKIP, and WPA2 clients
use AES. For the WPA & WPA2 mixed mode, TKIP + AES is the only supported data encryption
method.
