Management
59
ProSAFE Dual Band Wireless-N Access Point WNDAP360
SNMP Management
To set up an SNMP management interface:
1. Select Maintenance > Remote Management > SNMP. The SNMP screen displays:

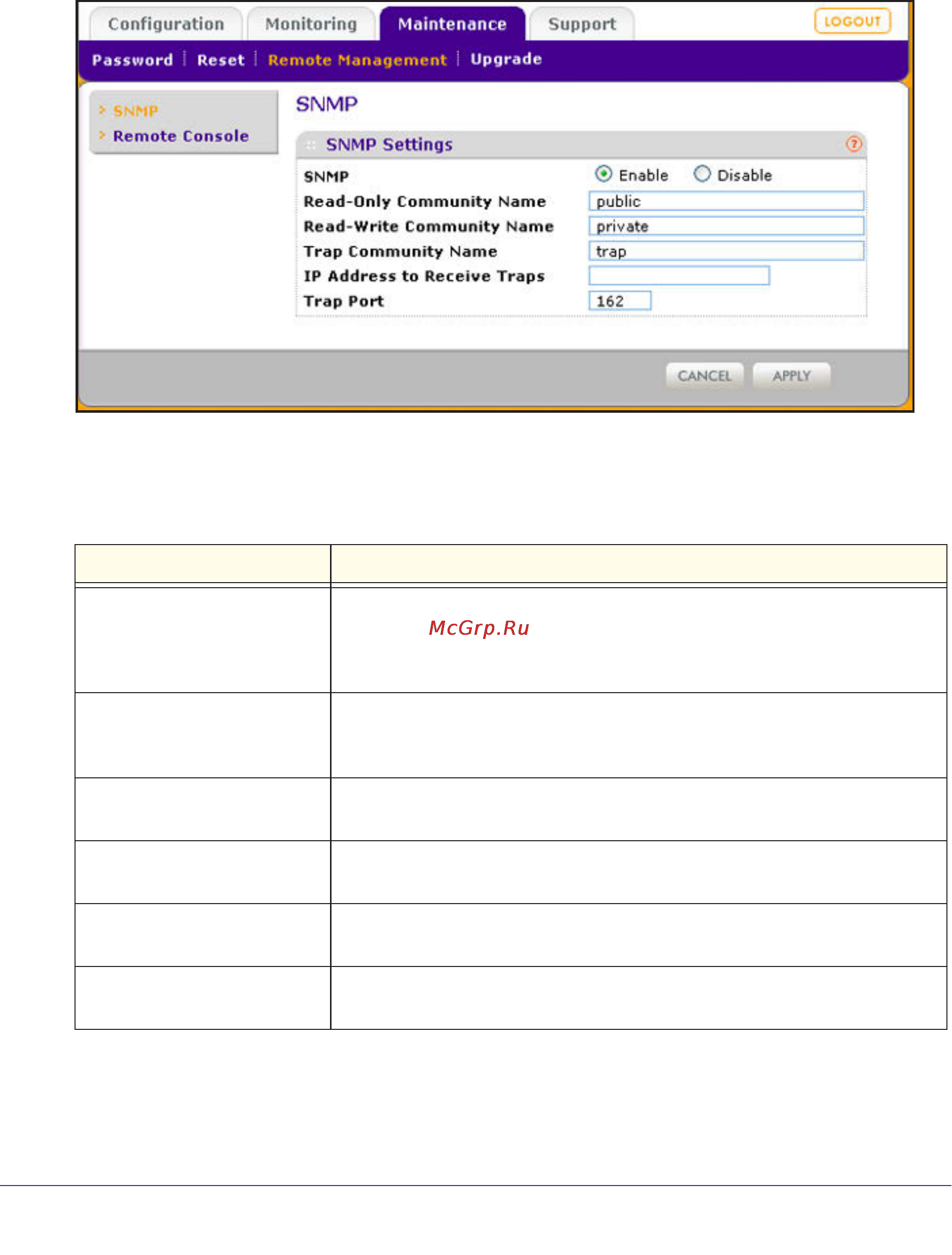

Figure 31.
2. Specify the settings as explained in the following table:
3. Click Apply to save your settings.
Table 16. SNMP Settings
Field Description
SNMP Select the Enable radio button to allow the SNMP network management
software, such as HP OpenView, to manage the wireless access point
through SNMPv1/v2 protocol. By default, the Disable radio button is
selected.
Read-Only Community Name Enter the community string to allow the SNMP manager to read the
wireless access point’s Management Information Base (MIB) objects. The
default is public.
Read-Write Community Name Enter the community string to allow the SNMP manager to read and write
the wireless access point’s MIB objects. The default is private.
Trap Community Name The community string to allow the SNMP manager to send traps. The
default is trap.
IP Address to Receive Traps The IP address of the SNMP manager to receive traps sent from the
wireless access point.
Trap Port The port number of the SNMP manager to receive traps sent from the
wireless access point. The default is 162.
