Netgear wndap360-100pes [70/133] View system information

Management

ProSAFE Dual Band Wireless-N Access Point WNDAP360

View System Information

The System screen provides a summary of the current wireless access point configuration

settings, including current IP settings and current wireless settings. This information is read

only, so any changes need to be made on other screens.

 To view the System screen:

Select Monitoring > System.

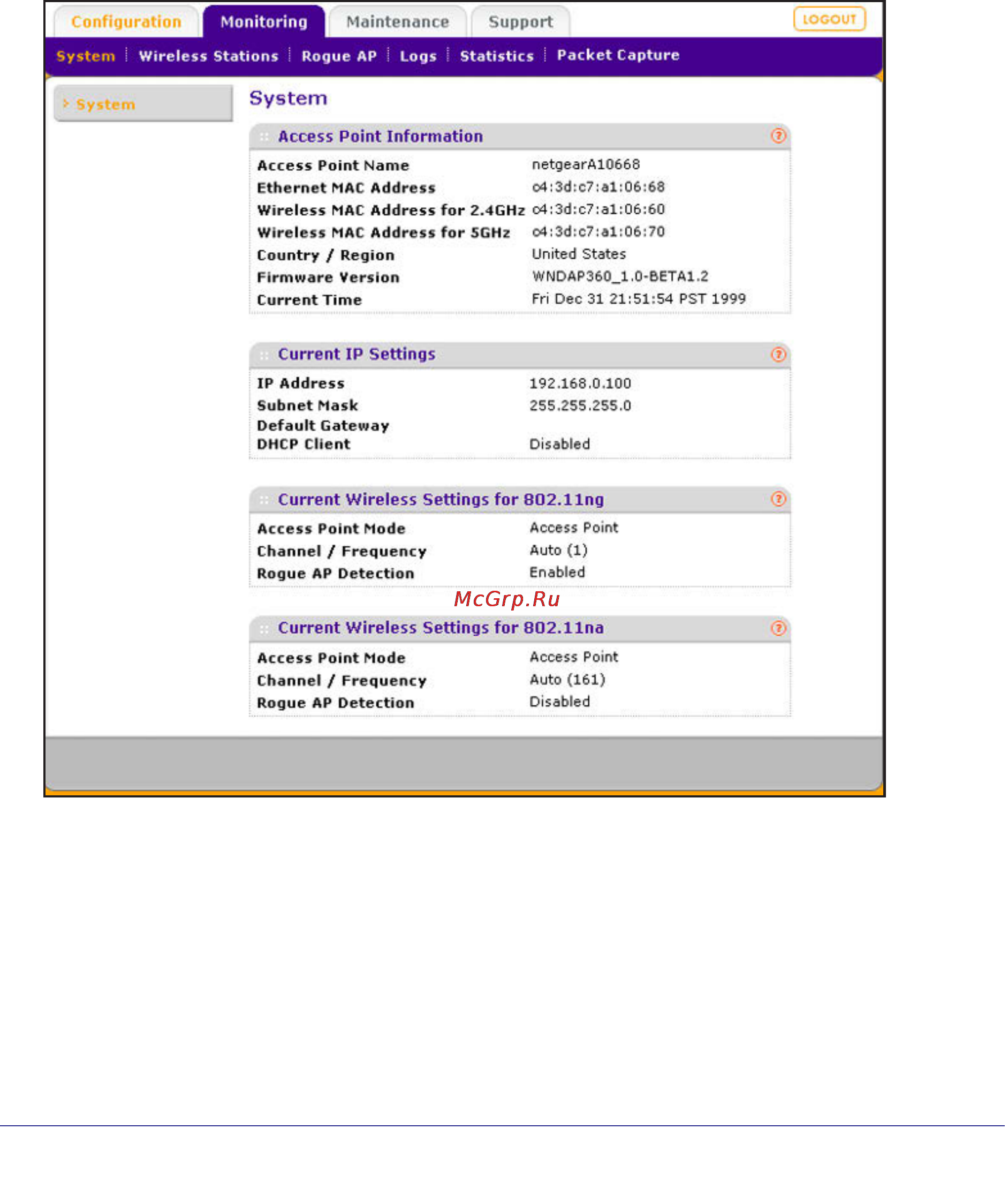

Figure 42.
