Netgear wndap360-100pes [33/133] Wall installation

Installation and Basic Configuration

ProSAFE Dual Band Wireless-N Access Point WNDAP360

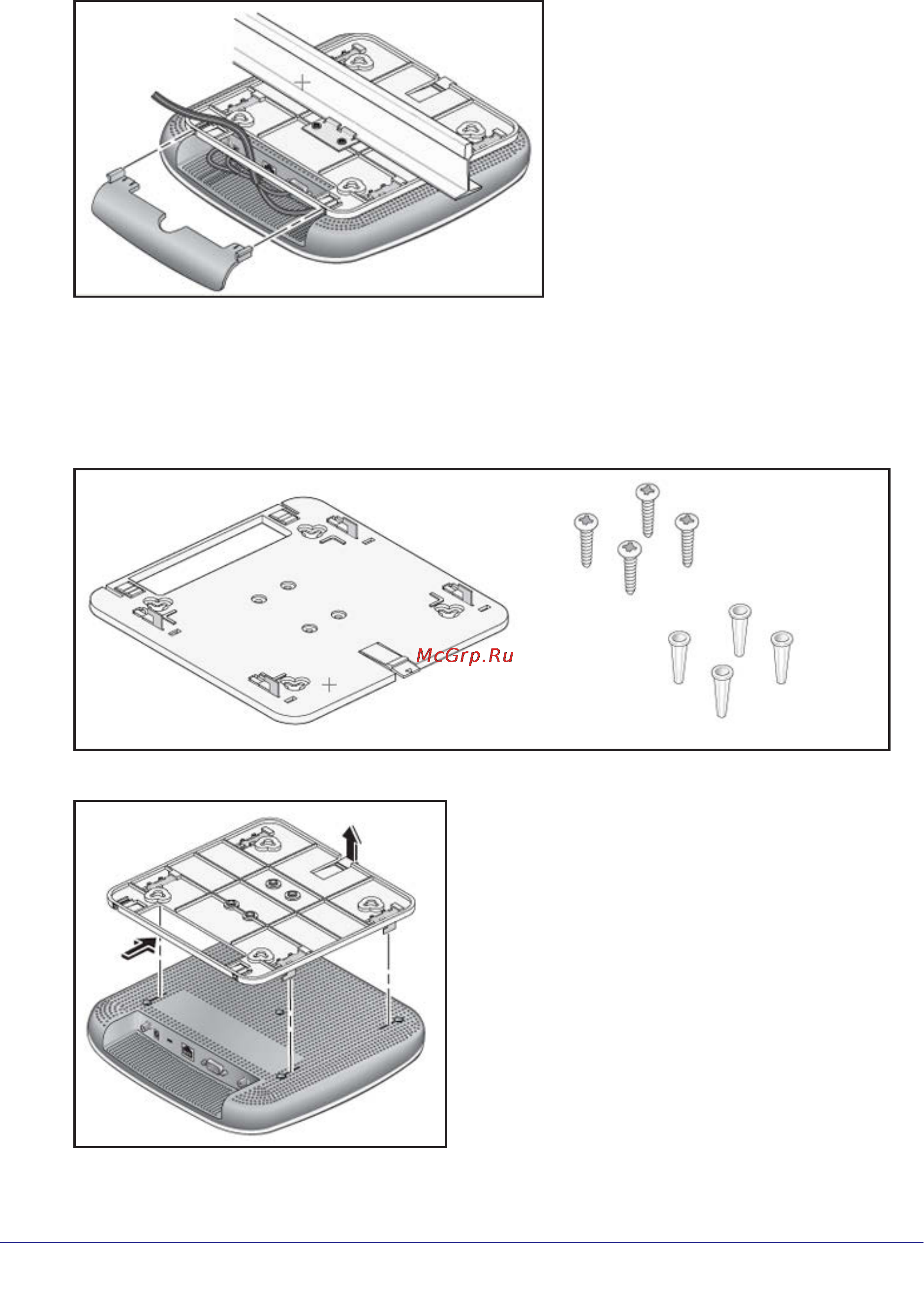

7. Attach the cover to the wireless access point.

Wall Installation

 To install the wireless access point using the wall installation kit:

1. Verify the package content of the wall installation kit.

2. Detach the mounting plate from the wireless access point.

Mounting plate

Screws and

wall supports
