Installation and Basic Configuration

ProSAFE Dual Band Wireless-N Access Point WNDAP360

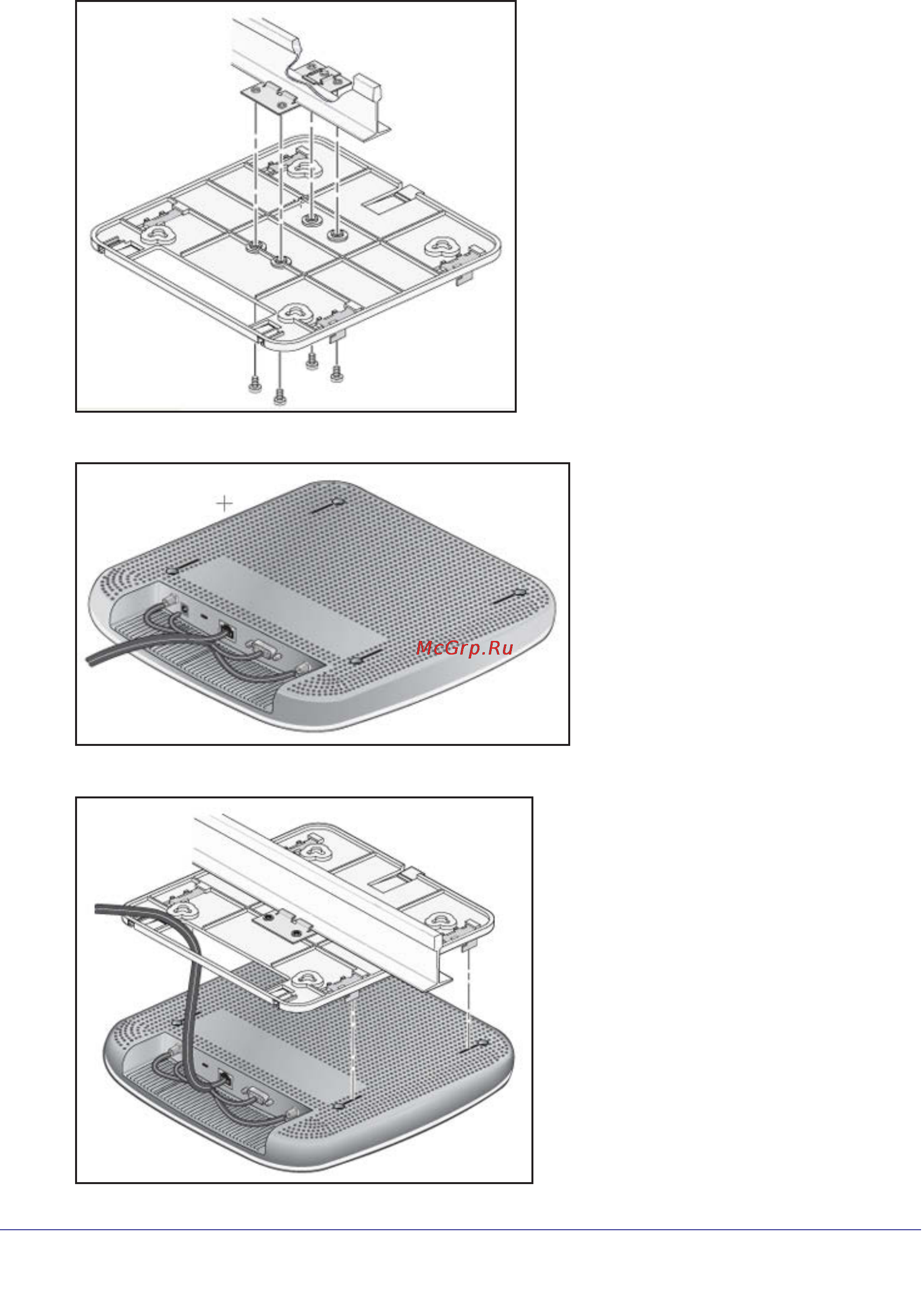

4. Attach the mounting plate to the clamp.

5. Connect the cables to the wireless access point.

6. Attach the wireless access point to the mounting plate.
