Installation and Basic Configuration
22
ProSAFE Dual Band Wireless-N Access Point WNDAP360
3. Click Apply to save your settings.
The wireless access point provides a built-in DHCP server for wireless clients only, which can
be especially useful in small networks. When the DHCP server is enabled, the wireless
access point provides preconfigured TCP/IP configurations to all connected wireless stations.
To configure DHCP server settings:

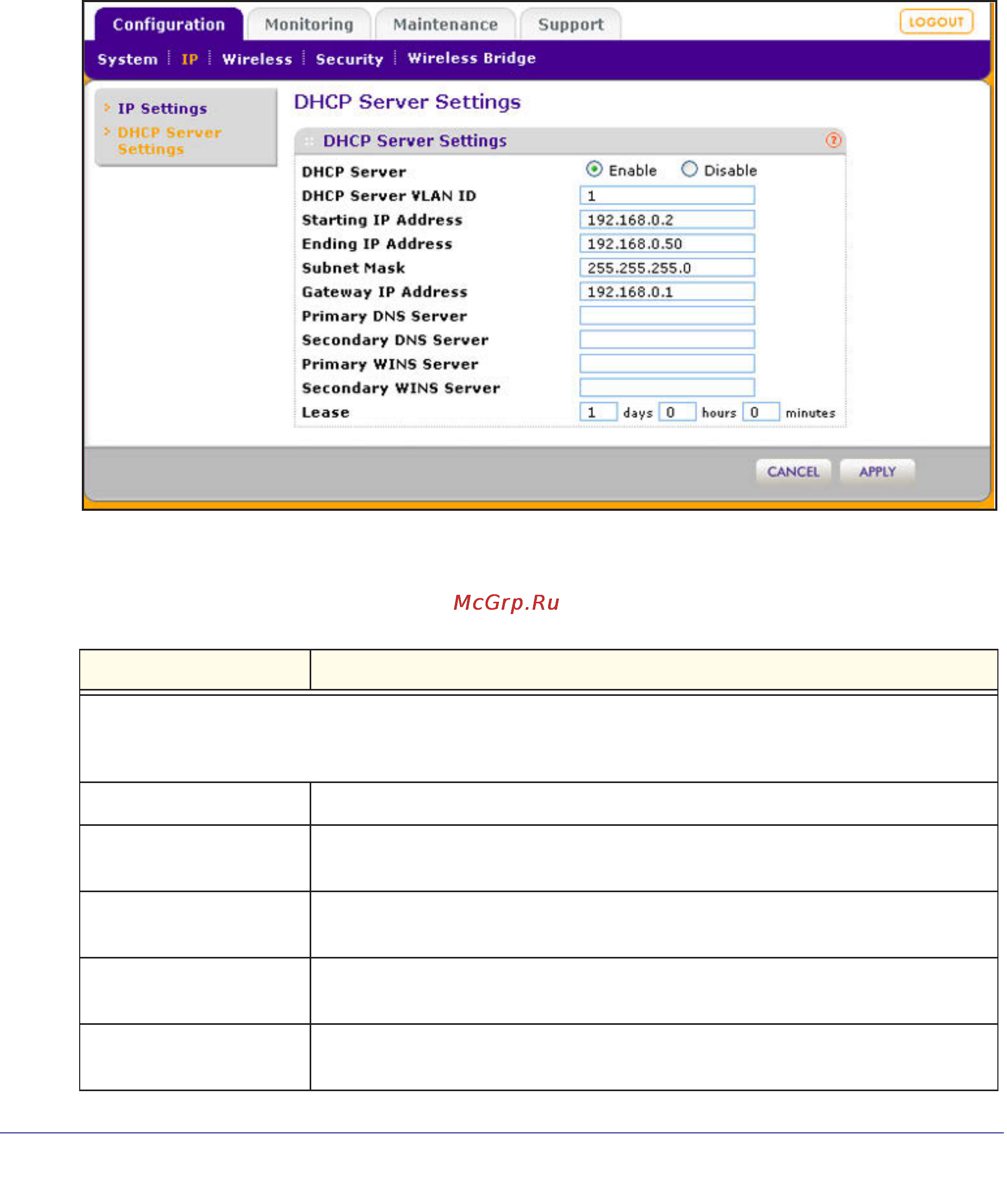

1. Select Configuration > IP > DHCP Server Settings. The DHCP Server Settings screen
displays:
Figure 11.
2. Specify the fields as explained in the following table:
Table 5. DHCP Server Settings
Field Description
Select the DHCP Server check box to enable the DHCP server. Use the default settings or specify the pool
of IP addresses to be assigned by setting the starting IP address and ending IP address. These addresses
should be part of the same IP address subnet as the wireless access point’s LAN IP address.
DHCP Server VLAN ID Enter the DHCP server VLAN ID. The VLAN ID range is between 1 and 4094.
Starting IP Address Enter the first address in the range of IP addresses to be assigned to DHCP
clients. The default address is 192.168.1.02.
Ending IP Address Enter the last address in the range of IP addresses to be assigned to DHCP
clients. The default address is 192.168.1.50.
Subnet Mask Enter the subnet mask to be used by DHCP clients. The default mask is
255.255.255.0.
Gateway IP Address Enter the IP address of the default routing gateway to be used by DHCP clients.
The default address is 192.168.0.1.
