Netgear wndap360-100pes [35/133] Desk installation

Installation and Basic Configuration

ProSAFE Dual Band Wireless-N Access Point WNDAP360

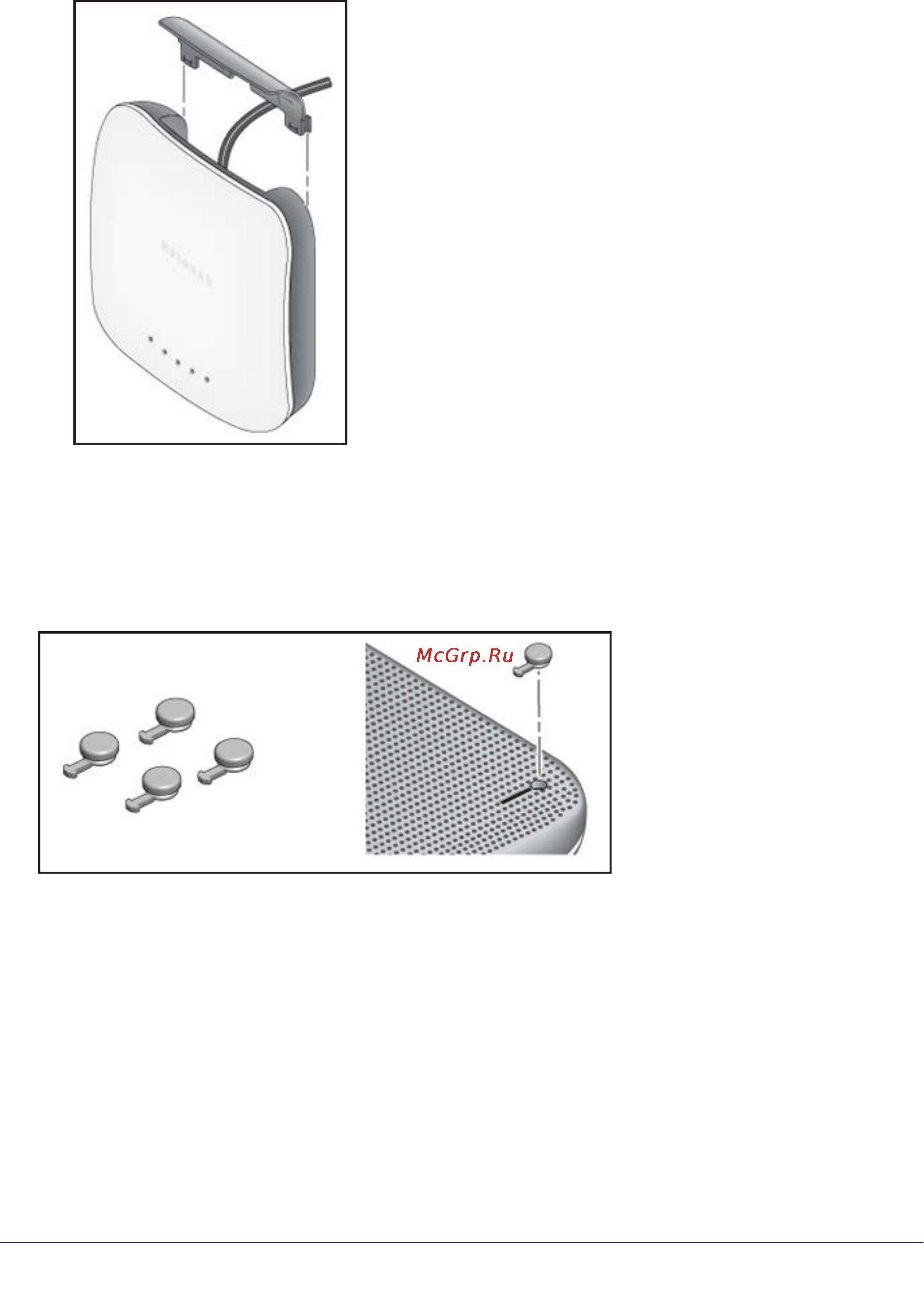

6. Attach the cover to the wireless access point.

Desk Installation

 To install the wireless access point on a desk:

Attach the rubber feet to the holes in the bottom of the wireless access point.

Rubber feet
