Netgear wndap360-100pes [76/133] The following table explains the fields of the statistics screen

Management

ProSAFE Dual Band Wireless-N Access Point WNDAP360

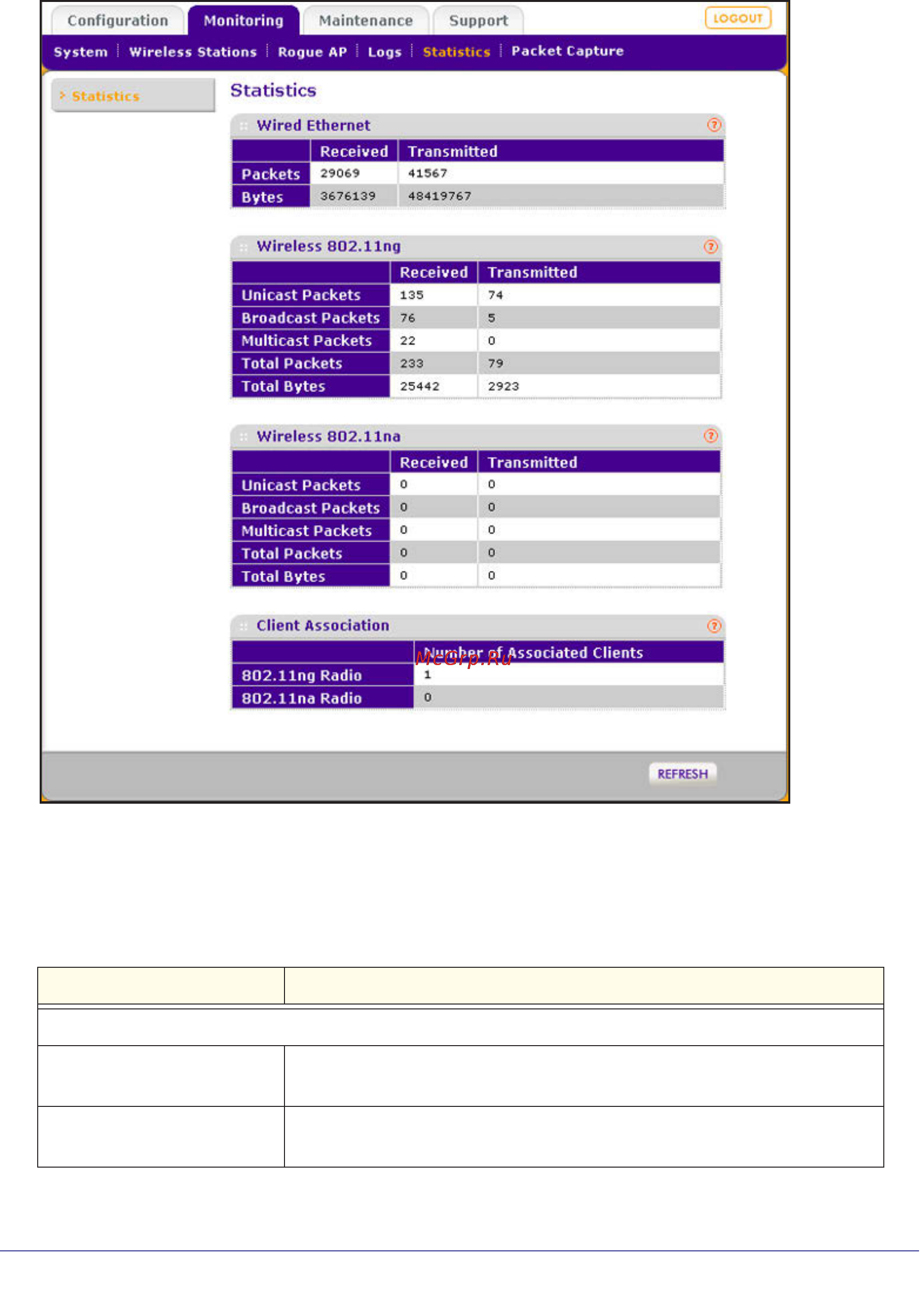

Figure 46.

To update the statistics information, click Refresh.

The following table explains the fields of the Statistics screen:

Table 20. Statistics Fields

Field Description

Wired Ethernet

Packets The number of packets received and transmitted over the Ethernet

connection since the wireless access point was restarted.

Bytes The number of bytes received and transmitted over the Ethernet connection

since the wireless access point was restarted.
