Advanced Configuration
82
ProSAFE Dual Band Wireless-N Access Point WNDAP360
• Tagged VLAN. When you clear the Untagged VLAN check box, the wireless access point
tags all frames that are sent from its Ethernet interface. Only incoming frames that are
tagged with known VLAN IDs are accepted.
• Management VLAN. The management VLAN can be active only when the wireless
access point functions as a point-to-point or point-to-multipoint bridge (see Configure
Wireless Bridging on page 89). The management VLAN is used for managing traffic
(Telnet, SNMP, and HTTP) to and from the wireless access point.
Frames belonging to the management VLAN are not given any 802.1Q header when they
are sent over the trunk. If a port is in a single VLAN, it can be untagged. However, if the
port is a member of multiple VLANs, it needs to be tagged.
To configure STP and VLANs:

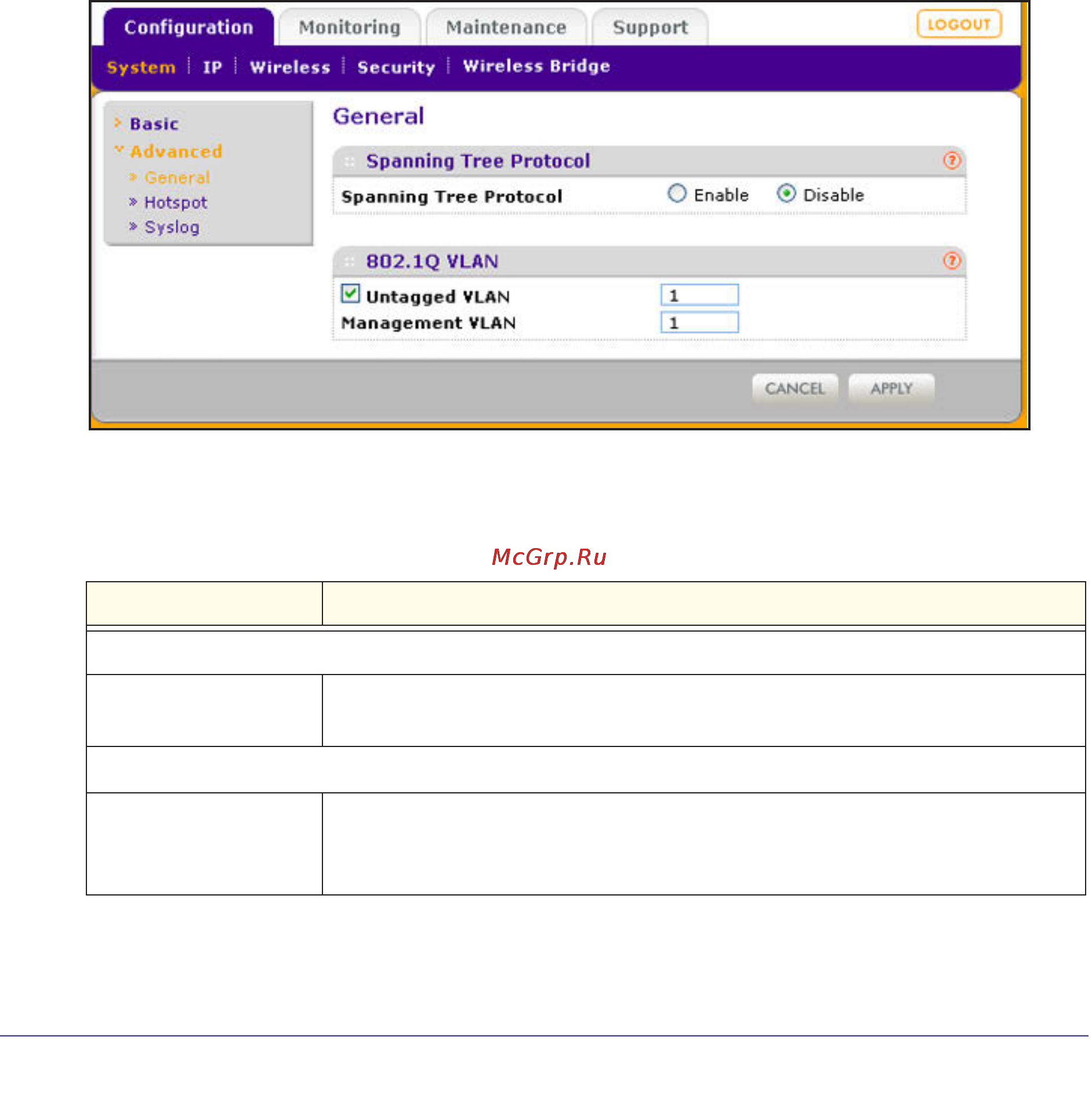

1. Select Configuring > System > Advanced > General. The advanced General system
settings screen displays:
Figure 49.
2. Specify the settings as explained in the following table:
Table 23. STP and VLAN Settings
Field Description
Spanning Tree Protocol
Spanning Tree Protocol Select the Enable radio button to enable STP to prevent path redundancy. By
default, the Disable radio button is selected.
802.1Q VLAN
Untagged VLAN Select the Untagged VLAN check box to configure one VLAN as an untagged
VLAN. By default, the Untagged VLAN check box is selected.
Specify a VLAN ID. The default VLAN ID is 1.
