Advanced Configuration
95
ProSAFE Dual Band Wireless-N Access Point WNDAP360
b. Select the Enable Wireless Bridging check box. The Local MAC Address field is a
nonconfigurable field that shows the MAC address of the wireless access point.
c. Select the Wireless Point-to-Multi-Point Bridge radio button. The screen adjusts.
d. The profile table shows four security profiles. Choose a security profile to edit by
selecting the corresponding radio button to the left of the profile.
e. Click Edit to configure the selected security profile settings. The Edit Security Profile

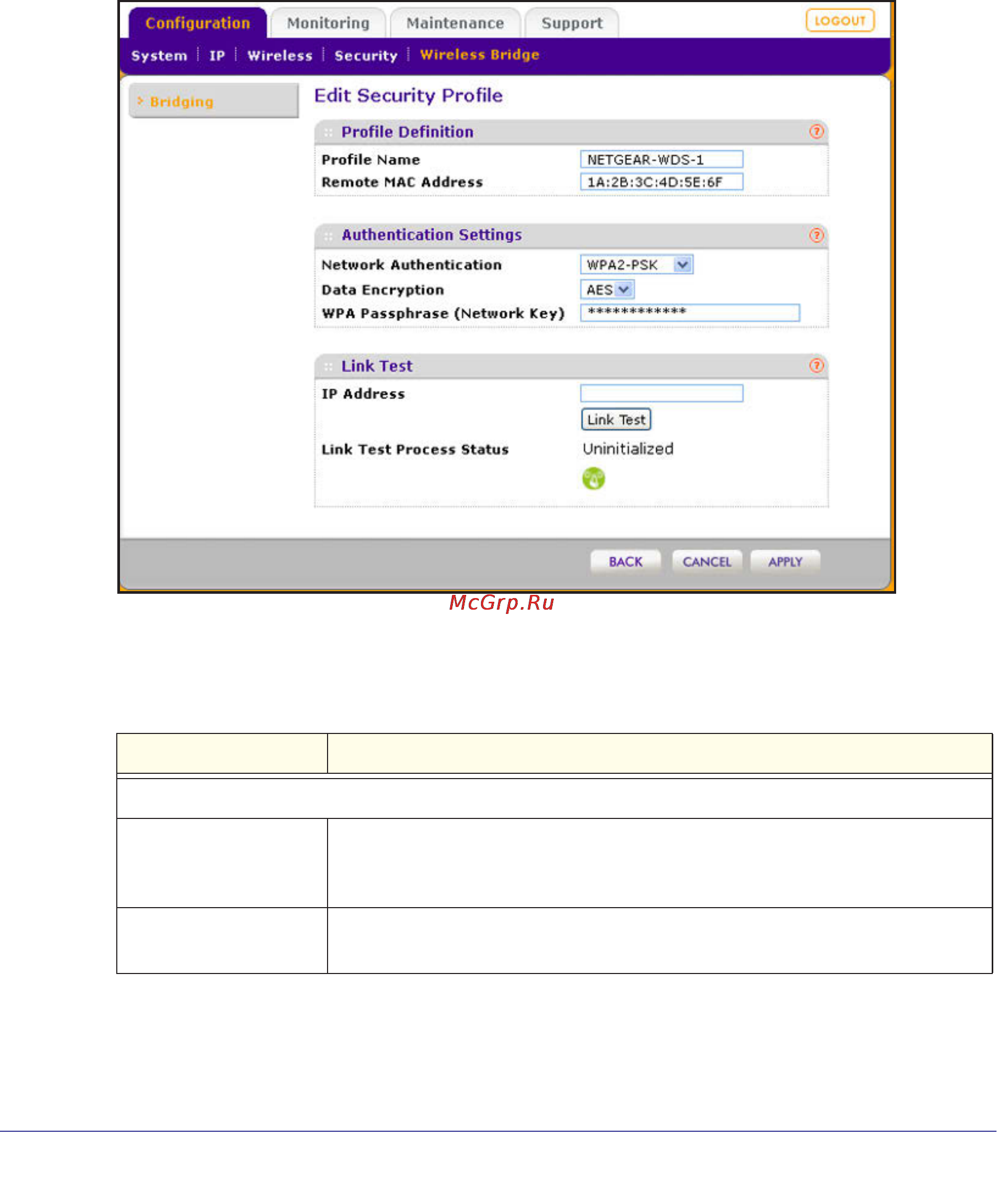

screen displays for the selected security profile. (The following figure contains some
examples.)
Figure 58.
f. Specify the settings as explained in the following table:
Table 27. Point-to-Multipoint Bridge Profile and Authentication Settings
Field Description
Profile Definition
Profile Name Enter a profile name that is easy to remember. The default names for the four
security profiles are NETGEAR-WDS-1, NETGEAR-WDS-2,
NETGEAR-WDS-3, and NETGEAR-WDS-4.
Remote MAC Address Enter the MAC address of the remote wireless access point (the MAC
address of AP2 or AP 3 on LAN Segment 1 in Figure 56 on page 94).
