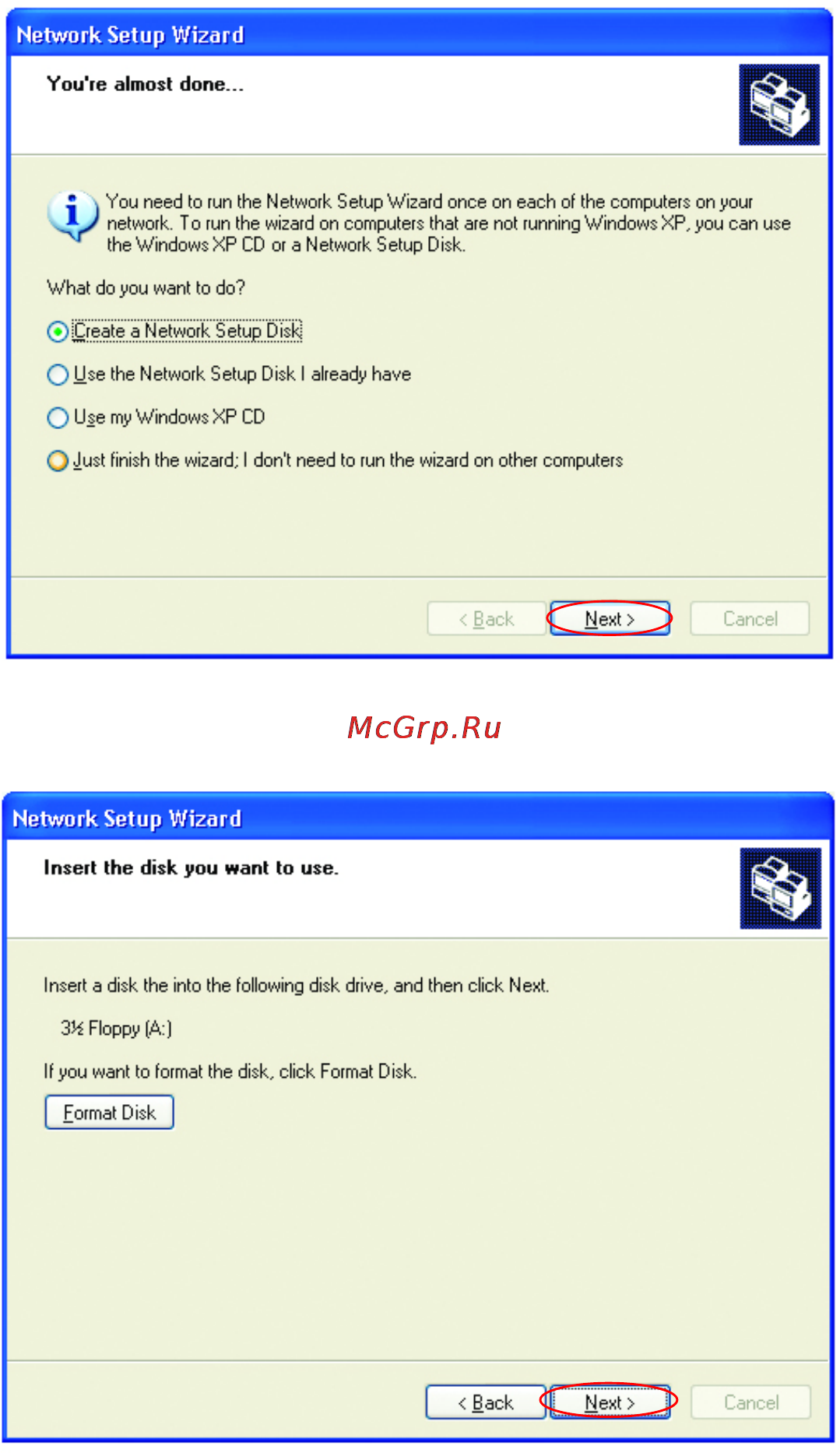

In the window below, select the best option. In this example, “Create a

Network Setup Disk” has been selected. You will run this disk on each of the

computers on your network. Click Next.

Insert a disk into the Floppy Disk Drive, in this case drive “A:”
