With Firewall Protection, Hacker-attack logging, and Virtual Private
Networking, the DFL-600 provides a level of security suitable for many
businesses.
This manual provides a quick introduction to network technology. Please
take a moment to read through this manual and get acquainted with your
DFL-600.

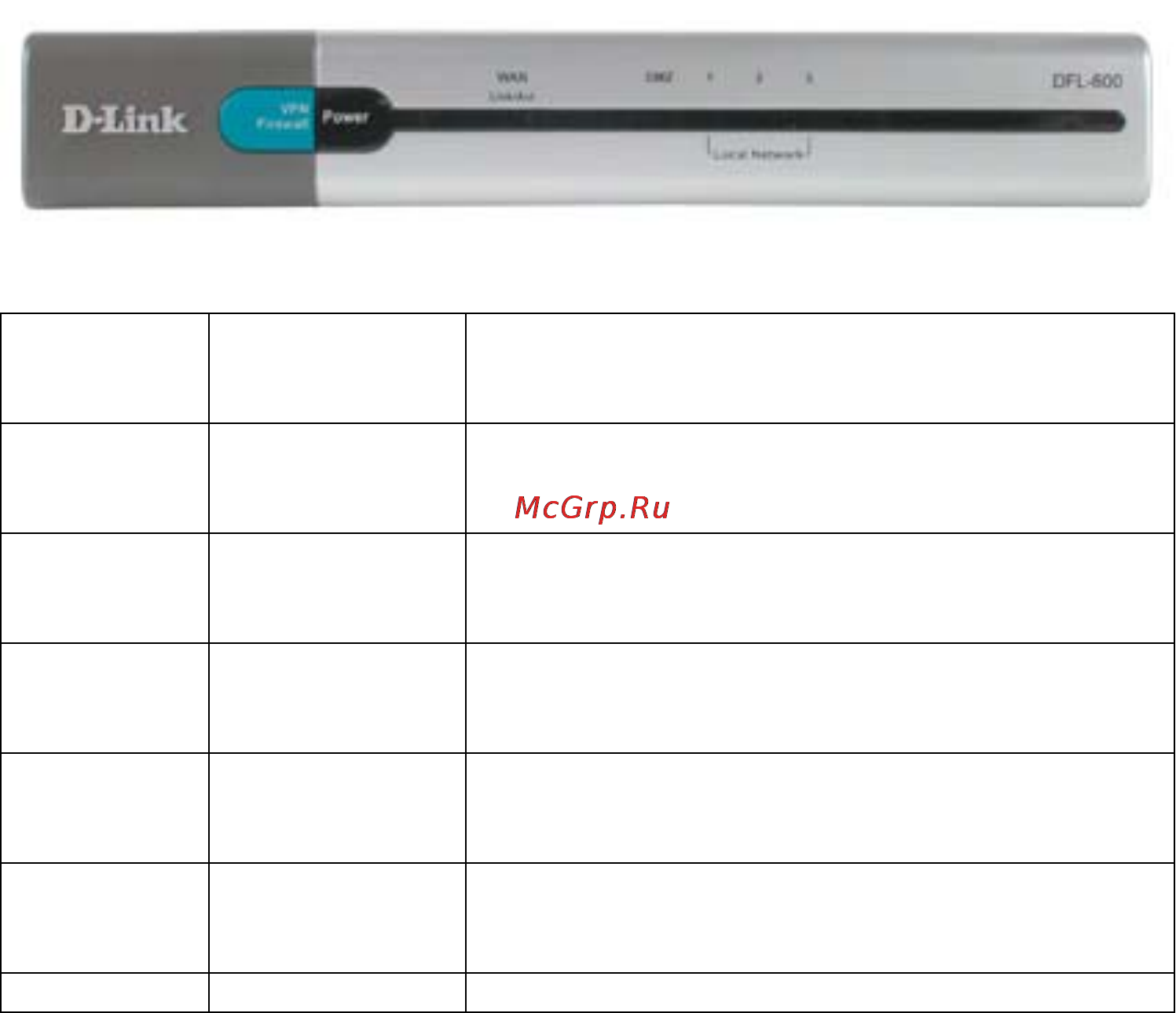

Front View
LED Indicators
WAN
Link/Act.
(Green) Green LED will LIGHT when a good link is
established. Green LED will BLINK when packet is
transmitting or receiving (Act.).
WAN 10/100 (Green) Green LED will LIGHT when a 100 Mbps Link is
established. Green LED will NOT LIGHT when a
10 Mbps Link is established.
DMZ
Link/Act.
(Green) Green LED will LIGHT when a good link is
established. Green LED will BLINK when packet is
transmitting or receiving (Act.).
DMZ 10/100 (Green) Green LED will LIGHT when a 100 Mbps Link is
established. Green LED will NOT LIGHT when a
10 Mbps Link is established.
LAN (1-3)
Link/Act.
(Green) Green LED will LIGHT when link is established
(Link). Green LED will BLINK when packet is
transmitting or receiving (Act.).
LAN (1-3)
10/100
(Green) Green LED will LIGHT when a 100 Mbps Link is
established. Green LED will NOT LIGHT when a
10 Mbps Link is established.
Power (Green) Green LED will LIGHT when powered ON.
