WAN Status
MAC Address
This is the MAC address of the DFL-600 on the
WAN.
Connection Type
This displays the current connection type
between the DFL-600 and your ISP.
IP Address
This is the IP address of the DFL-600 on the
WAN.
Subnet Mask
This is the subnet mask corresponding to the IP
address above, that is currently in use by the
DFL-600 on the WAN.
Default Gateway
Displays the IP address of the default gateway
on the WAN.
Primary DNS
Displays the IP address of the primary DNS on
the WAN.
Secondary DNS
Displays the IP address of the secondary DNS on
the WAN.
Status − NAT Info

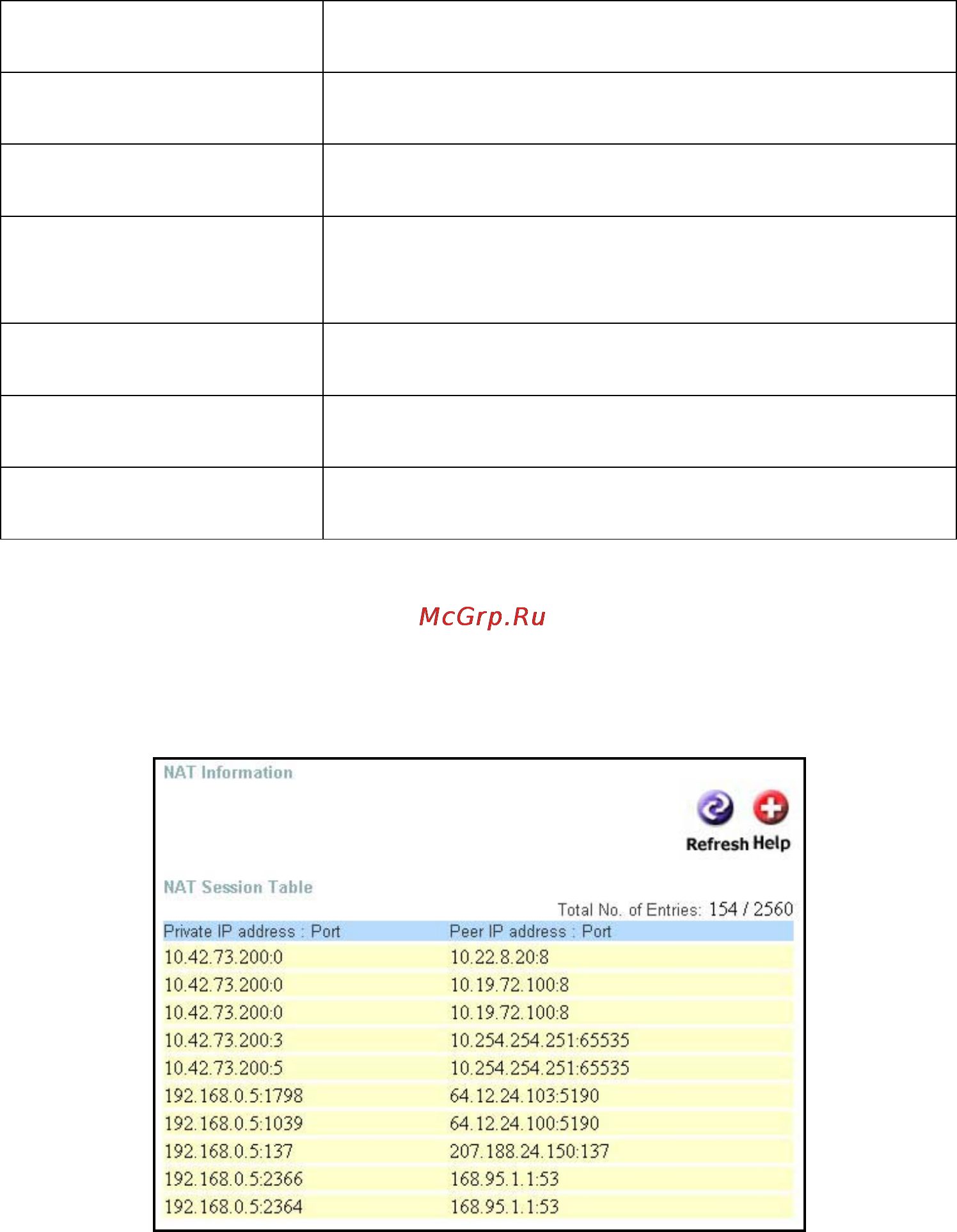

The DFL-600 maintains a table containing statistics concerning the Network
Address Translation (NAT) applied between the WAN and the LAN. These
statistics can be viewed on the NAT Sessions table, as shown below:
