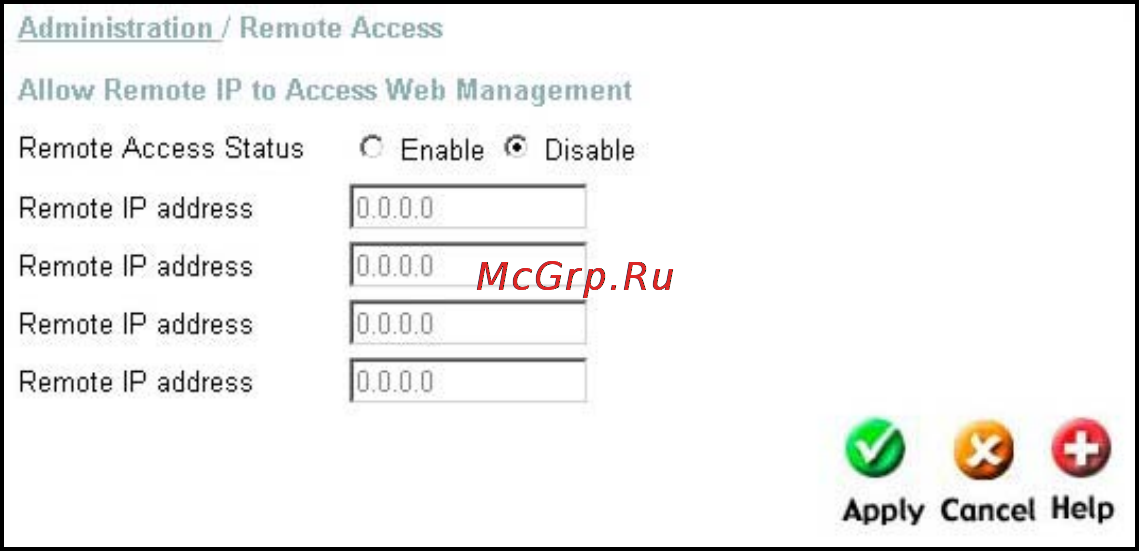

Remote Access
The Remote Access page allows you to enter the IP addresses of computers
on the WAN (Internet) that will be allowed to access the configuration utility.
If you do not enter any IP addresses on this page, then no IP address on the
WAN side of the DFL-600 (no computer from the Internet) will be allowed to
access the DFL-600’s configuration utility.
Tools − System
The System Settings page allows you to save the current configuration to the
DFL-600’s Flash RAM (NVRAM). Clicking the Apply button on any given
configuration page will make the changes current, but you must execute an
Apply Settings and Restart from the System Settings page to enter the
configuration into the DFL-600’s NVRAM. If you do not, the DFL-600 will
revert to the last saved configuration when it is restarted.
There are two options for restarting the DFL-600 − save settings and restart,
or restart to the factory default settings. If you choose the Restore Factory
Default Settings option, all of the configuration settings you have entered
will be erased and the DFL-600 will be restored to the same configuration it
had when it left the factory.
