Key Word Filter
The DFL-600 will also allow you to enter key words that the router will use
to deny access from PCs on web sites that contain these words in the URLs.
Clicking on the Back button from the Add Service Rules page (shown above)

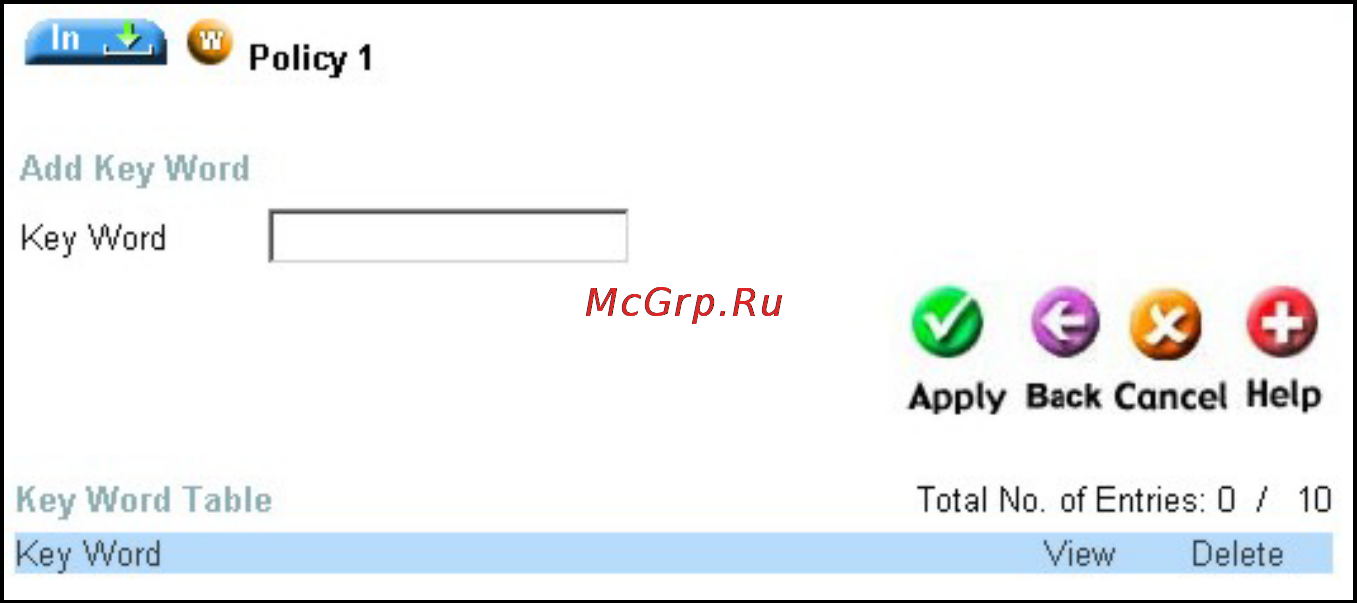

will take you back to the In policy page. Then clicking on the Key Words
link will open the following page.
Enter a key word that you want the DFL-600 to scan for and prevent PCs on
websites that contain that word in their URLs from accessing PCs on your
LAN.
Outgoing Packet Filtering
The DFL-600 allows you to specify a range of IP addresses, MAC addresses,
TCP/UDP port numbers, and Domain names for connections between
computers on the WAN and computers on your LAN that will be controlled.
These IP addresses are entered on the pages under the Policy tab
Out allows you to configure a policy for outgoing packets (from the LAN
side of the router). Clicking on the Out button corresponding to a given
policy will open the Port Filter, Domain Filter and MAC Filter page, as
shown below.
