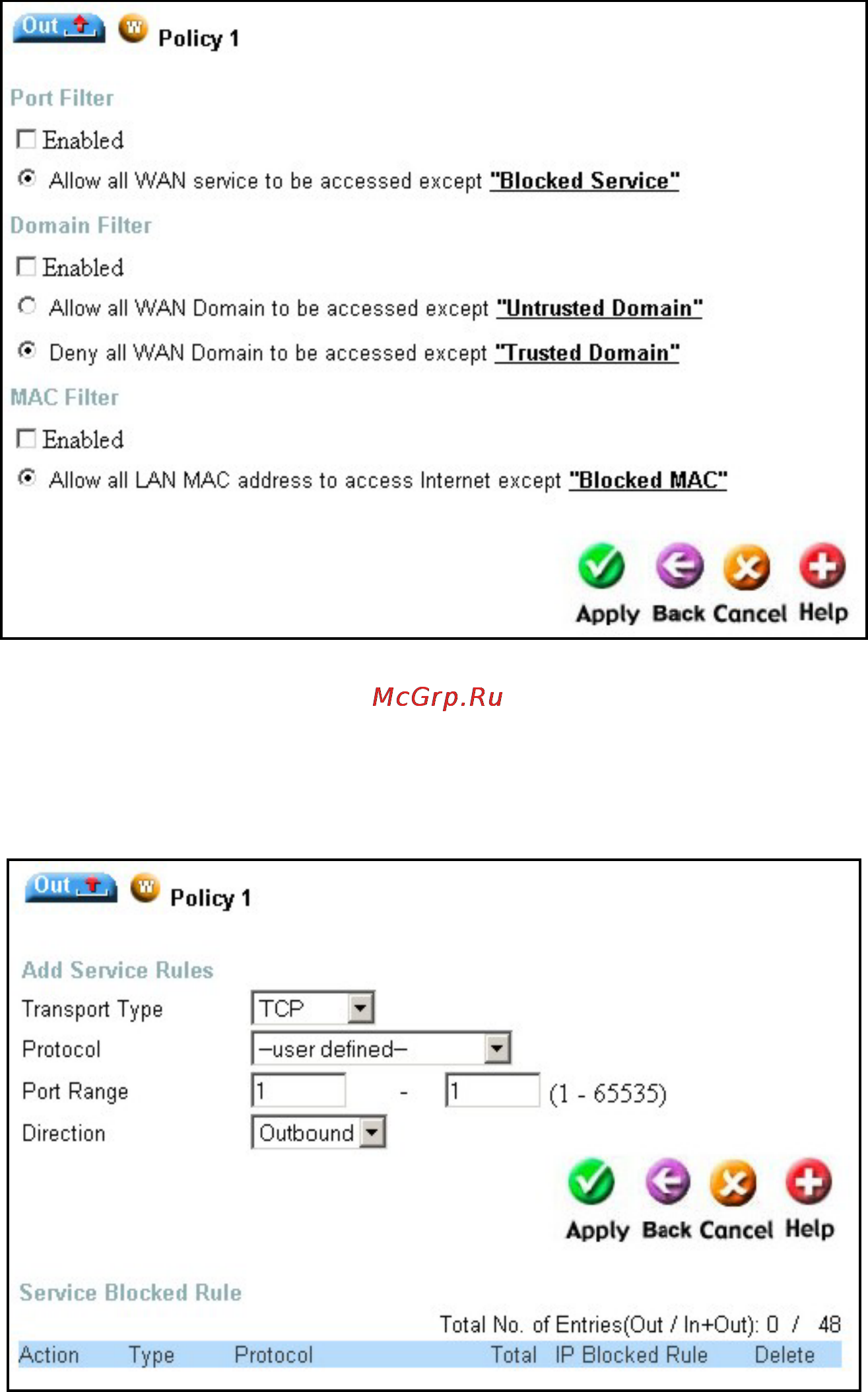

The Port Filter allows you to specify transport protocols and TCP/UDP port

ranges that the DFL-600 will prevent computers on the LAN side from using

to make connections to PCs on the WAN side of the router. Clicking on the

“Blocked Service” link will open the following page.
