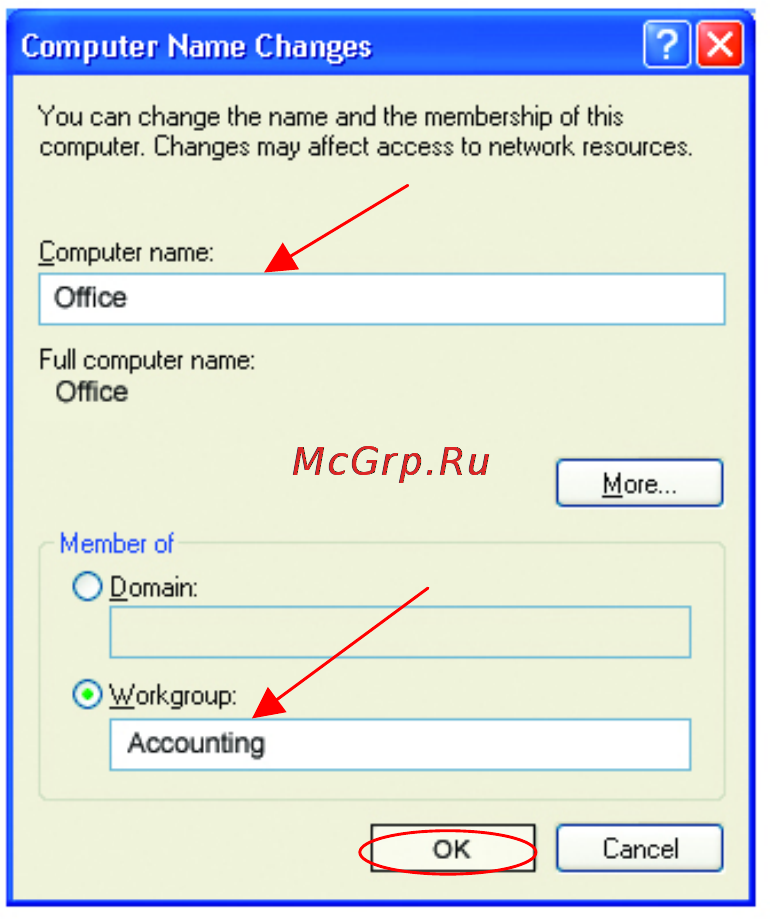

• In this window, enter

the Computer

name.

• Select Workgroup

and enter the name

of the Workgroup.

• All computers on

your network must

have the same

Workgroup name.

• Click OK
