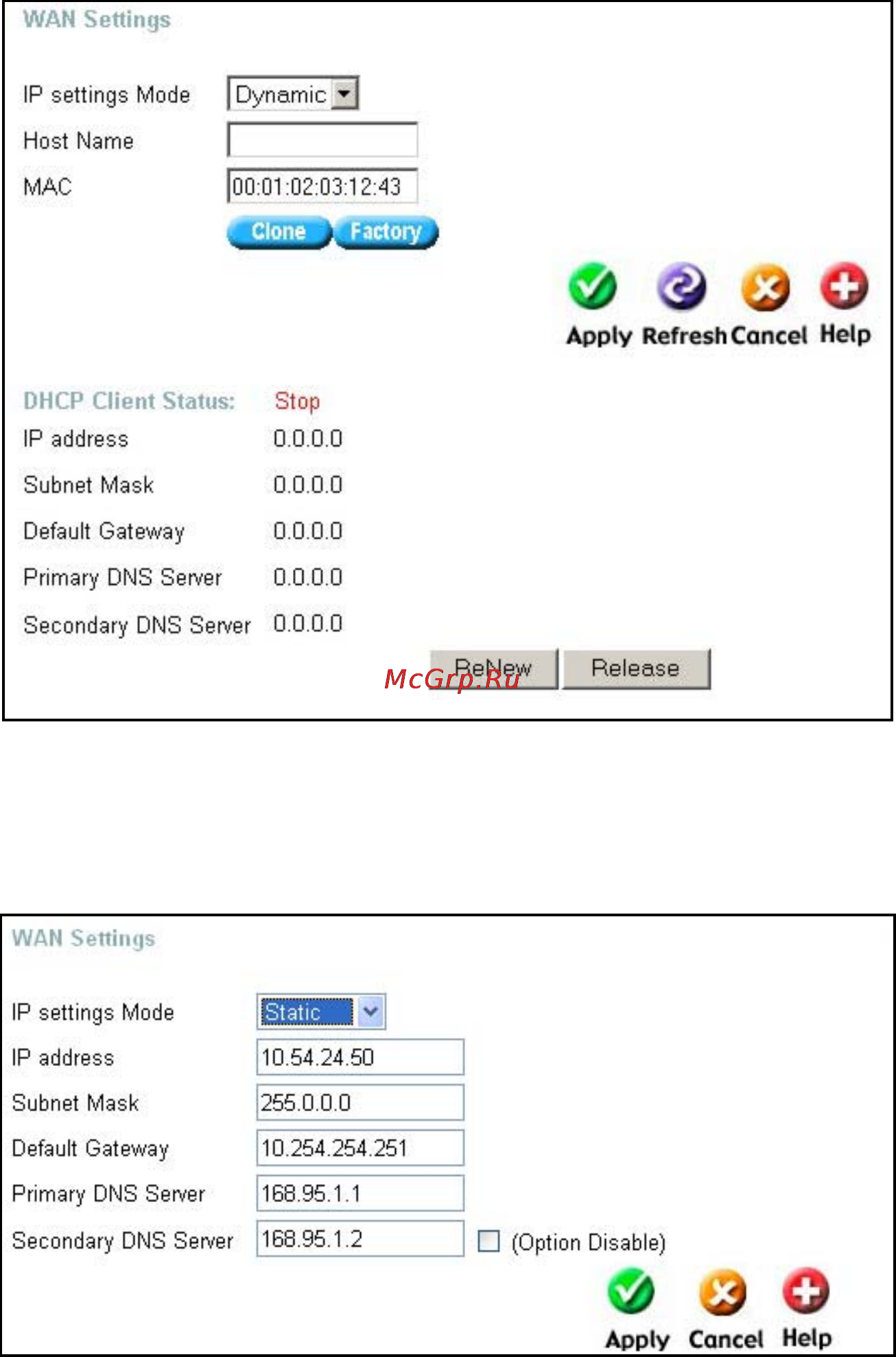

Static IP Address − If your ISP has assigned you an IP address that will

never change, choose this option. When this option is chosen, the following

fields appear to allow you to enter the network address information:
