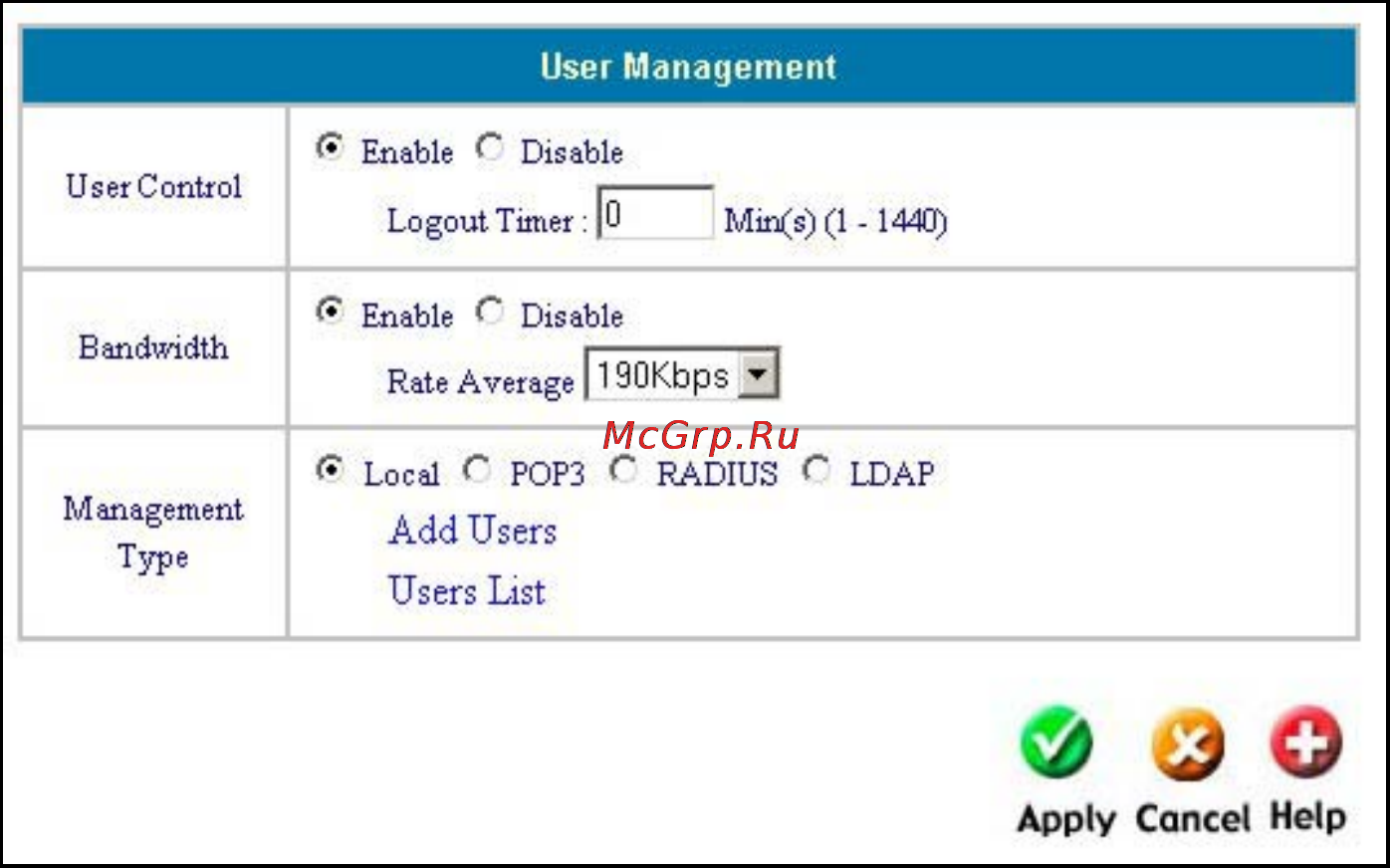

Clicking the Enable click box, opposite the User Control table entry, will

open the rest of the User Management page, including the Bandwidth control

and Management Type table entries.
