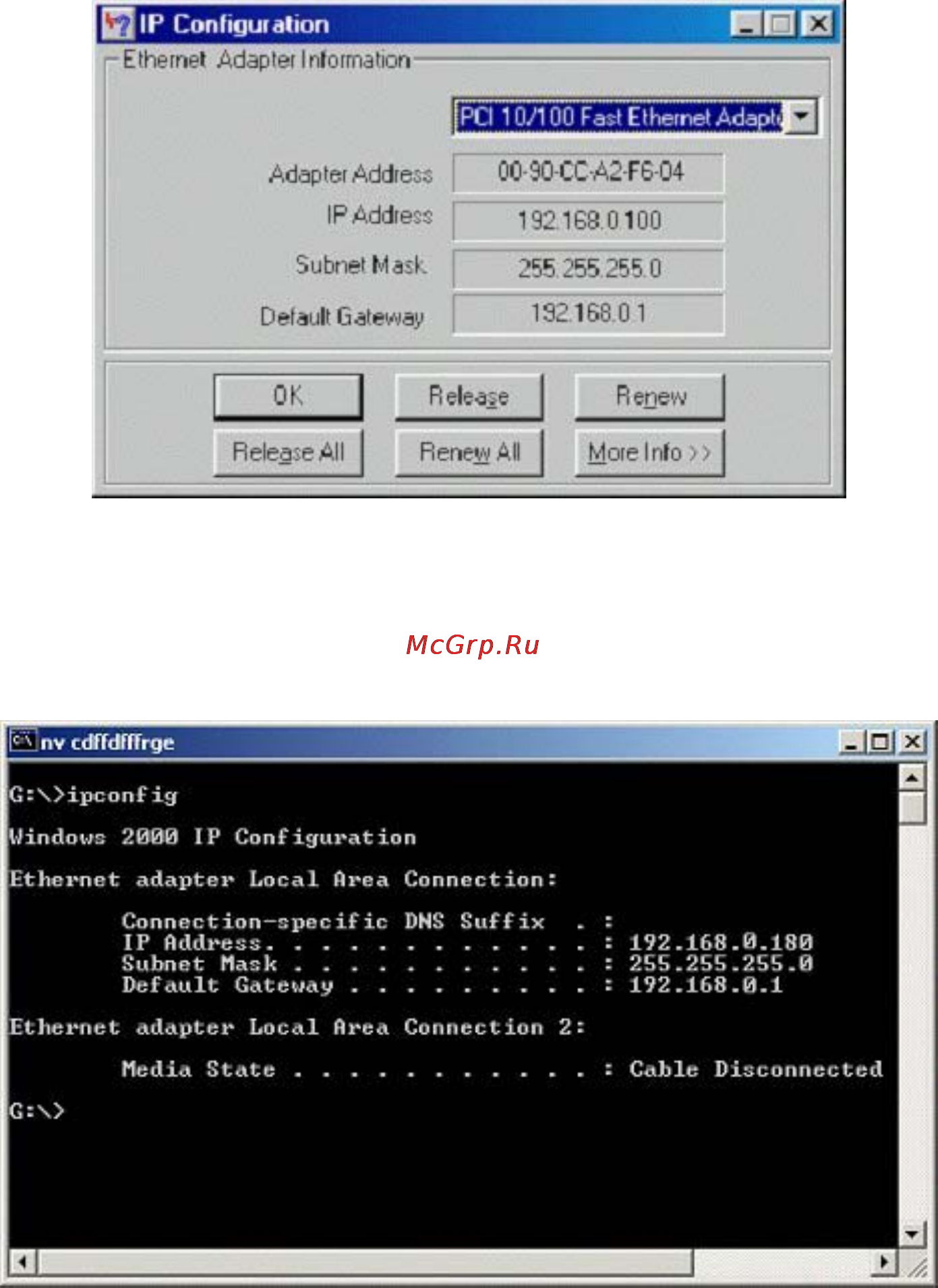

• IPCONFIG (for Windows 2000/NT/XP)

In the DOS command prompt type IPCONFIG and press Enter. Your PC IP

information will be displayed as shown below.
