User’s Manual of STW-16P8 & STW-1622HP

Step6: Proceeds with the steps 4 and 5 of session 2.2.1 Desktop Installation to connect the network cabling and supply power

to the PoE Web Smart Switch.

2.2.3 Installing the SFP transceiver (STW-1622HP ONLY)

The sections describe how to insert an SFP transceiver into an SFP slot.

The SFP transceivers are hot-pluggable and hot-swappable. You can plug in and out the transceiver to/from any SFP port

without having to power down the PoE Web Smart Switch, as the Figure 2-10 shows.

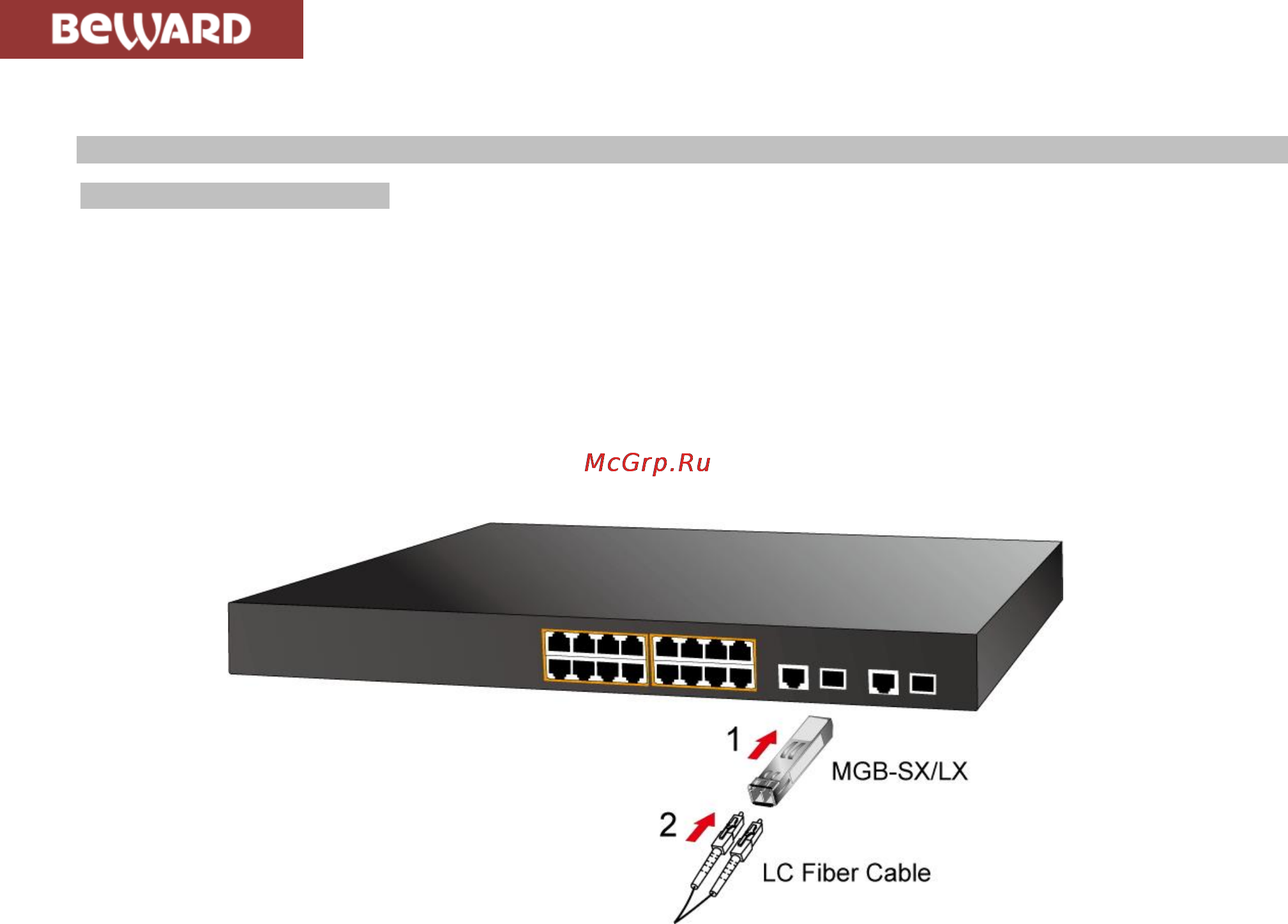

Figure 2-10 Plug in the SFP transceiver

1. Before we connect PoE Web Smart Switch to the other network device, we have to make sure both sides of the SFP

transceivers are with the same media type, for example: 1000BASE-SX to 1000BASE-SX, 1000Bas-LX to 1000BASE-LX.

2. Check whether the fiber-optic cable type matches with the SFP transceiver requirement.

 To connect to 1000BASE-SX SFP transceiver, please use the multi-mode fiber cable with one side being the male

duplex LC connector type.

 To connect to 1000BASE-LX SFP transceiver, please use the single-mode fiber cable with one side being the male

duplex LC connector type.

 Connect the Fiber Cable

1. Insert the duplex LC connector into the SFP transceiver.

2. Connect the other end of the cable to a device with SFP transceiver installed.

3. Check the LNK/ACT LED of the SFP slot on the front of the PoE Web Smart Switch. Ensure that the SFP transceiver is

operating correctly.

4. Check the Link mode of the SFP port if the link fails. To function with some fiber-NICs or Media Converters, user has to set

the port Link mode to “1000 Force”.

 Remove the Transceiver Module (STW-1622HP)

1. Make sure there is no network activity anymore.

2. Remove the Fiber-Optic Cable gently.
