User’s Manual of STW-16P8 & STW-1622HP

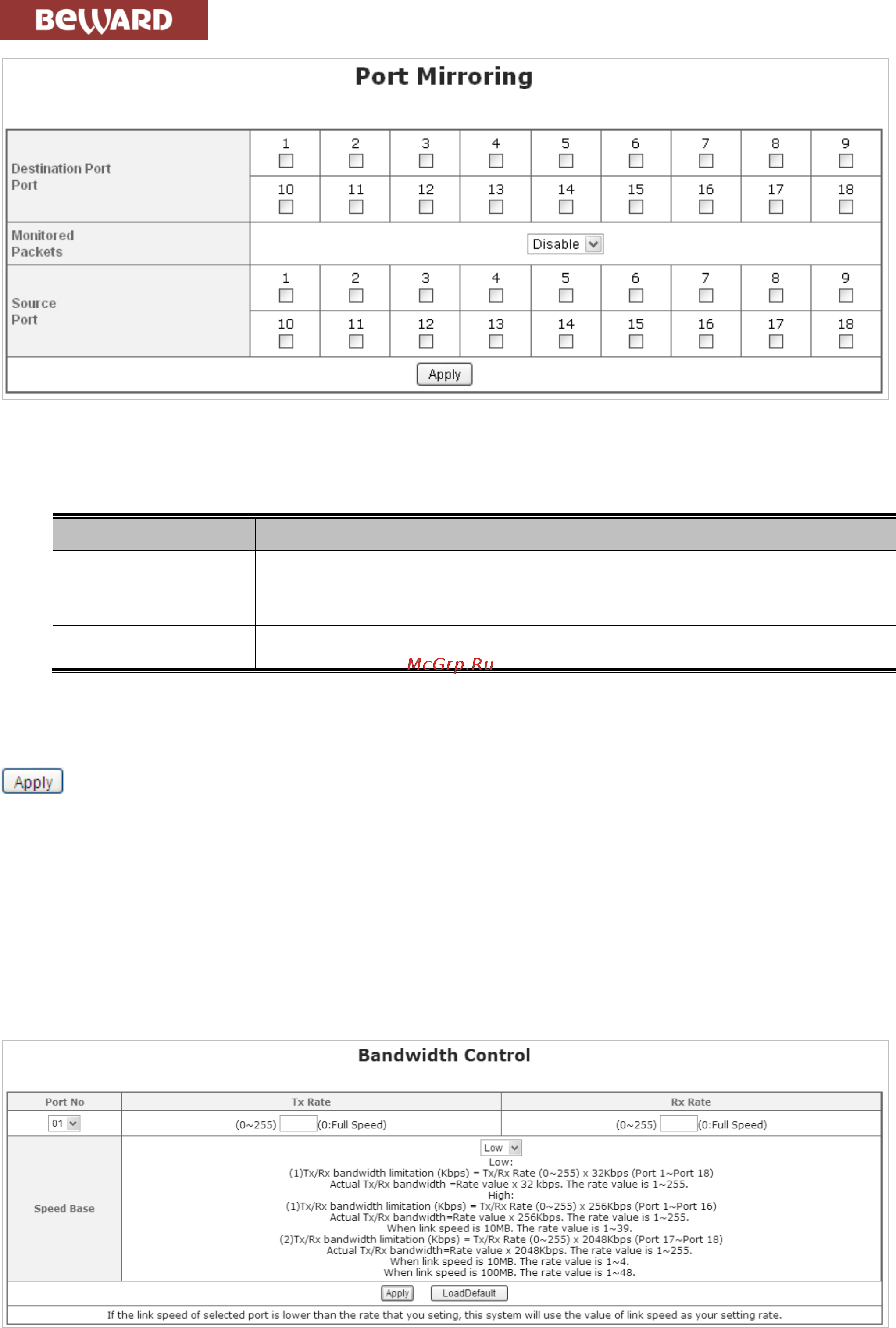

Figure 4-3-3 Port Mirroring Settings Page Screenshot

The page includes the following fields:

Object

Description

 Destination Port

Select the port to mirror destination port.

 Monitored Packets

Enable or disable the port mirroring function.

 Source Port

Frames transmitted / received from these ports are mirrored to the mirroring port.

Buttons

: Click to apply changes

4.3.3 Bandwidth Control

This page provides the selection of the ingress and egress bandwidth preamble. The Bandwidth Control Setting and Status

screens in Figure 4-3-4 and 4-3-5 appear.
