User’s Manual of STW-16P8 & STW-1622HP
54

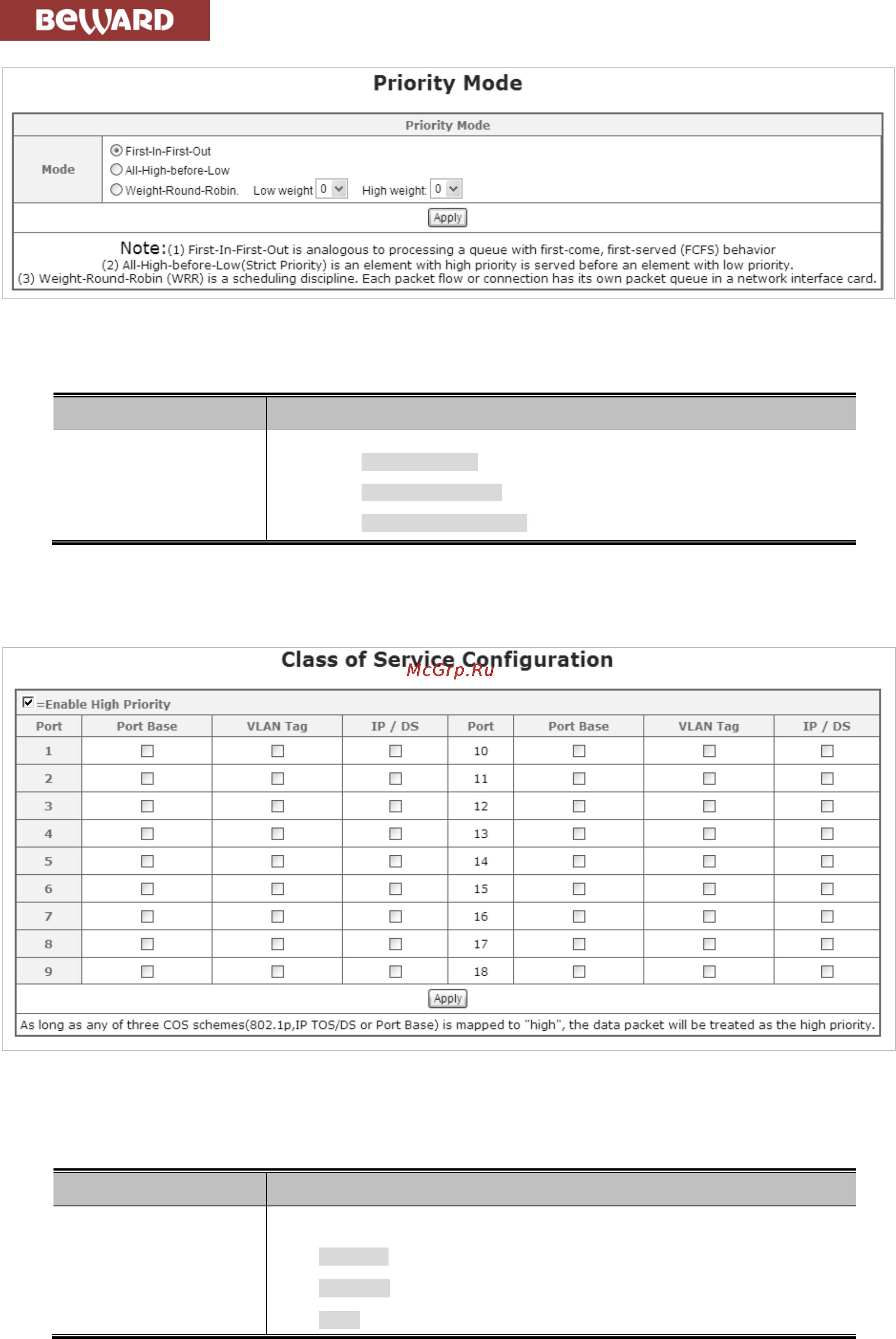

Figure 4-5-1 Priority Model Setting Page Screenshot
The page includes the following fields:
Object
Description
Mode
Configure QoS mode. The options:
First-In-First-Out
All-High-before-Low
Weighted-Round-Robin
4.5.3 Class of Service Configuration
The Class of Service Configuration and Information screen in Figure 4-5-2 appears.
Figure 4-5-2 Class of Server Configuration Setting Page Screenshot
The page includes the following fields:
Object
Description
Mode
Configure Class of Service mode. The options:
Port Base - The QoS implementation is based on Physical Port
VLAN Tag - The QoS implementation is based on VLAN tag
IP/DS - The QoS implementation is based on DS field of IP header
