DA-820 Series Hardware Installation
2-4
3. Surge Ground is connected to the Chassis Ground via a braided cable or other appropriate grounding wire.
Surge Ground is used as the ground conductor for all surge and transient suppression circuitry internal to
the protection board.
4. Chassis Ground should be connected to the AC Ground terminal.

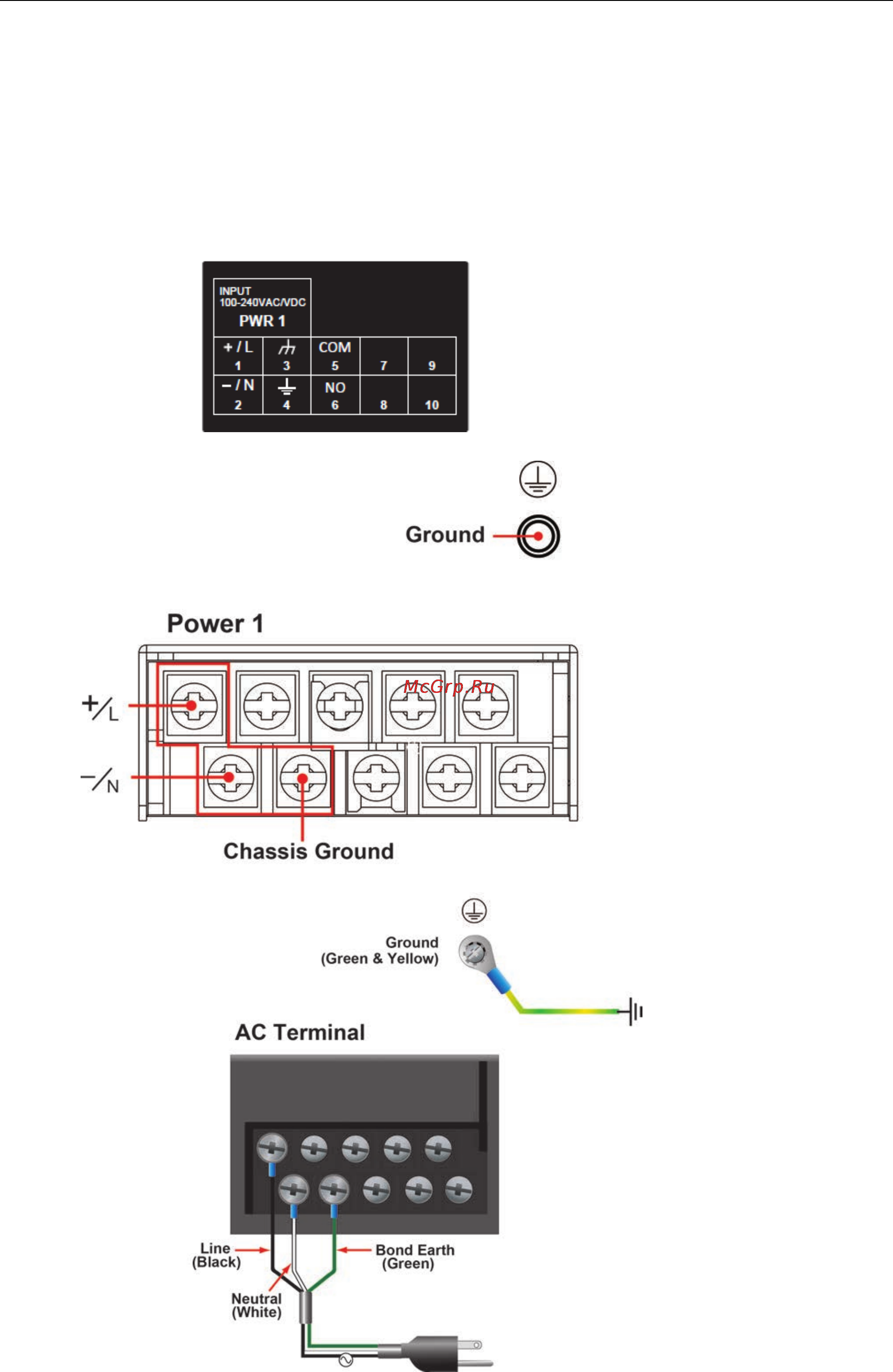

Alternating Current (AC), Single Power
Models: DA-820-C8-SP-HV, DA-820-C7-SP-HV-T
