Moxa СРАВНИТЬ [8/56] Hardware block diagram
![Moxa СРАВНИТЬ [8/56] Hardware block diagram](/views2/1199150/page8/bg8.png)
DA-820 Series Introduction
1-5

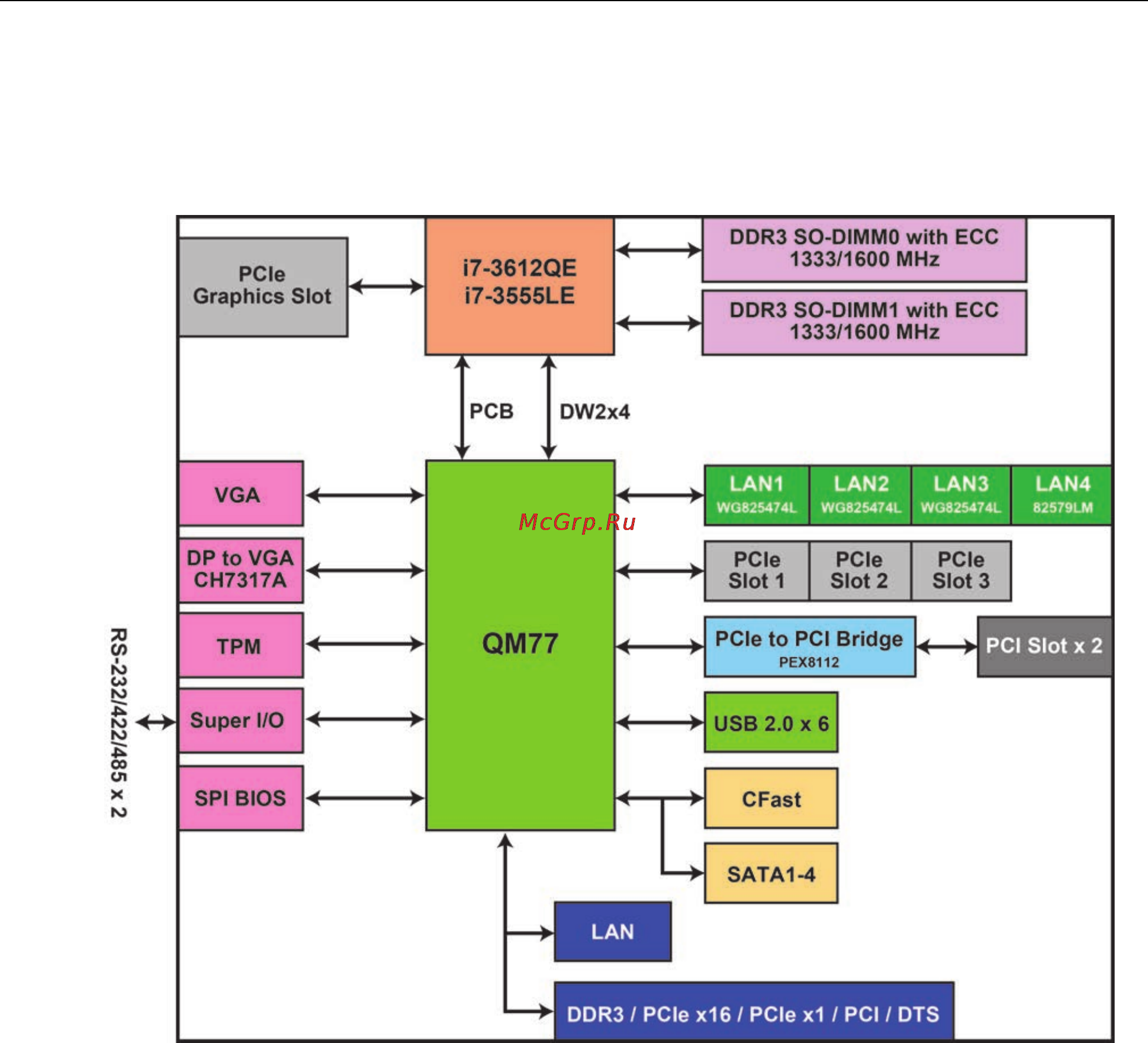

Hardware Block Diagram
DA-820 Basic System
Hardware Specifications
Computer
CPU:
• DA
-820-C7: Intel dual core i7-3555LE 2.5 GHz processor
• DA
-820-C8: Intel quad core i7-3612QE 2.1 GHz processor
OS*:
64-bit Debian 7 or 64-bit Windows Embedded Standard 7
*The OS is optional; you may purchase Windows Embedded Standard 7 via CTOS, or download Debian 7 from
our website.
System Chipset:
QM77
BIOS:
SPI Flash 64 Mbit BIOS, PCI Plug & Play, ACPI function support
System
Memory: Max. 16 GB capacity (204-pin SO-DIMM x 2, each supporting un-buffered ECC DDR3
memory at 1333 and 1600 MT/s, 8 GB Max.)
USB:
• Rear panel: 4 USB 2.0 type A ports
• Front panel: 2 USB 2.0 type A ports
Storage
Built
-in: CFast socket onboard to store OS (CFast card needs to be purchased separately)
Storage Expansion:
4 SATA 2.0 interfaces, supporting RAID 0, 1, 5, 10, hot-swappable
