DA-820 Series BIOS Setup
3-26

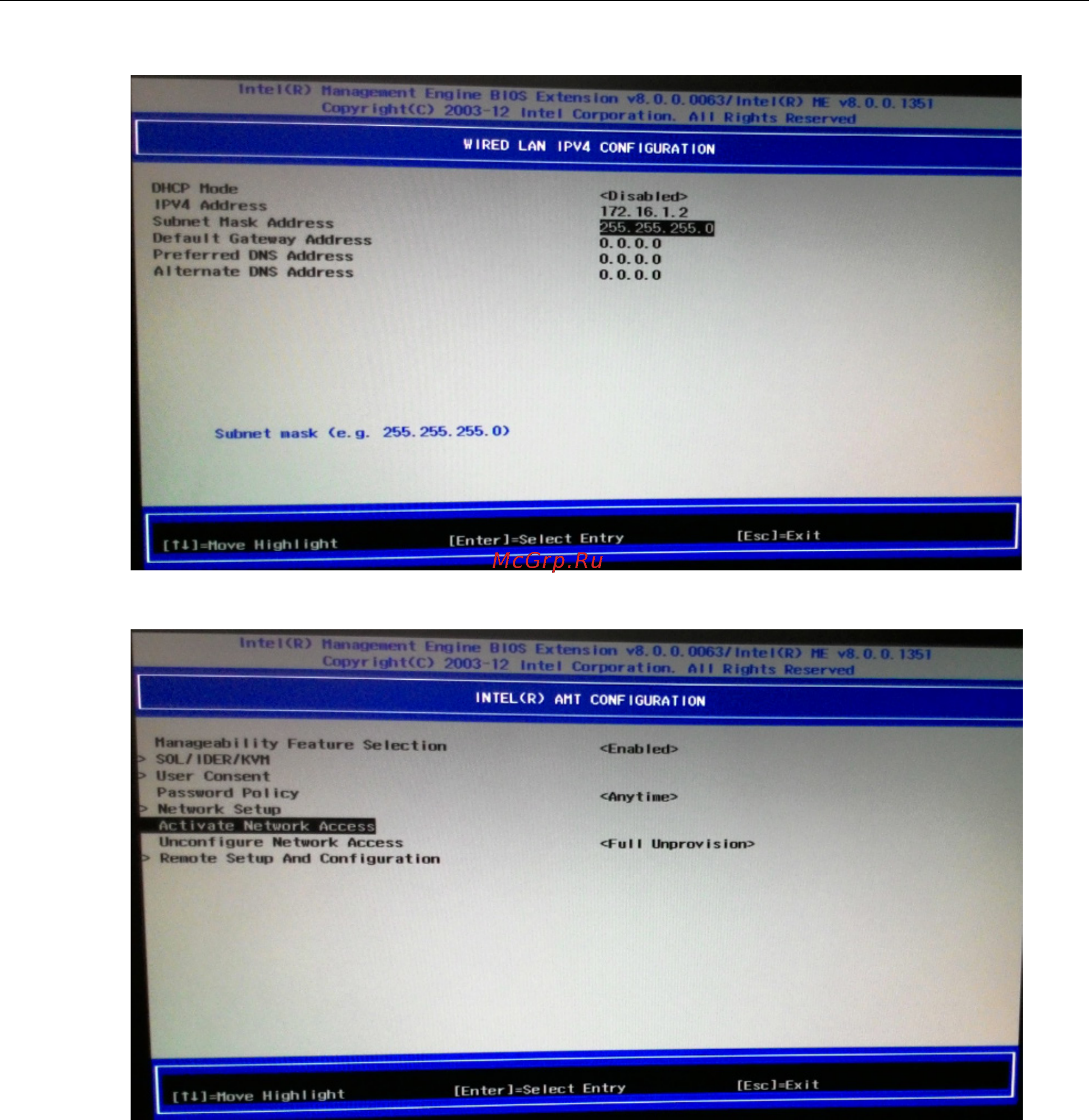

6. Set static IP or DHCP by request.
7. Set Activate Network Access to enable remote access capability.
